Description:

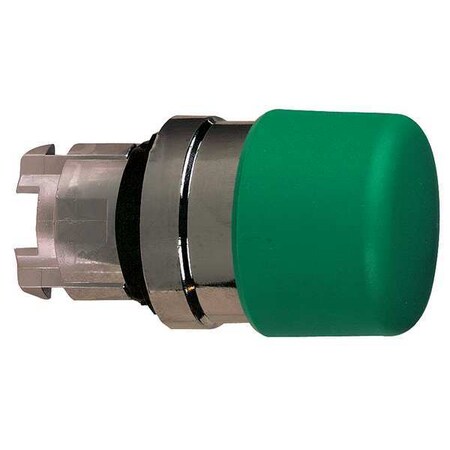

Push Button Operator, 22 mm, Momentary Push, Type of Operator 30mm dia Mushroom Head, Basic Material Metal, Head Material Aluminum-Zinc Alloy, Bezel Material Chrome Die Cast Aluminum, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating 66, Legend No Legend, Standards CE, CSA, EN/IEC 60947-1, EN/IEC 60947-5-1, RoHS, UL
Attributes
| Key ^ | Value |
|---|---|
| Action | Momentary Push |
| Ambient Air Temperature For Operation | -40-70?C |
| Basic Material | Metal |
| Bezel Material | Chrome Die Cast Aluminum |
| Cad Overall Depth | 52 mm |
| Cad Overall Height, Cad Overall Width | 30 mm |
| Color | Green |
| Device Short Name | ZB4 |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Head Material | Aluminum-Zinc Alloy |
| Ik Degree Of Protection | IK06 IEC 50102 |
| IP Rating | 66 |
| Item, Product Type | Push Button operator |
| Legend | No Legend |
| Mounting Diameter, Size | 22 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Number of Operators | 1 |
| Protective Treatment | TH |
| Standards | CE, CSA, EN/IEC 60947-1, EN/IEC 60947-5-1, RoHS, UL |
| Type of Operator | 30mm dia Mushroom Head |
