mpn:
brand:
manufacturer:
MPN:
Description:

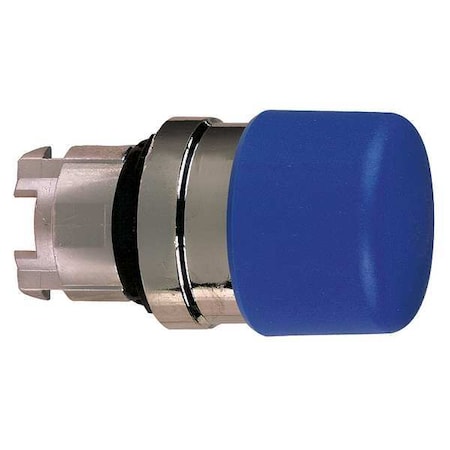

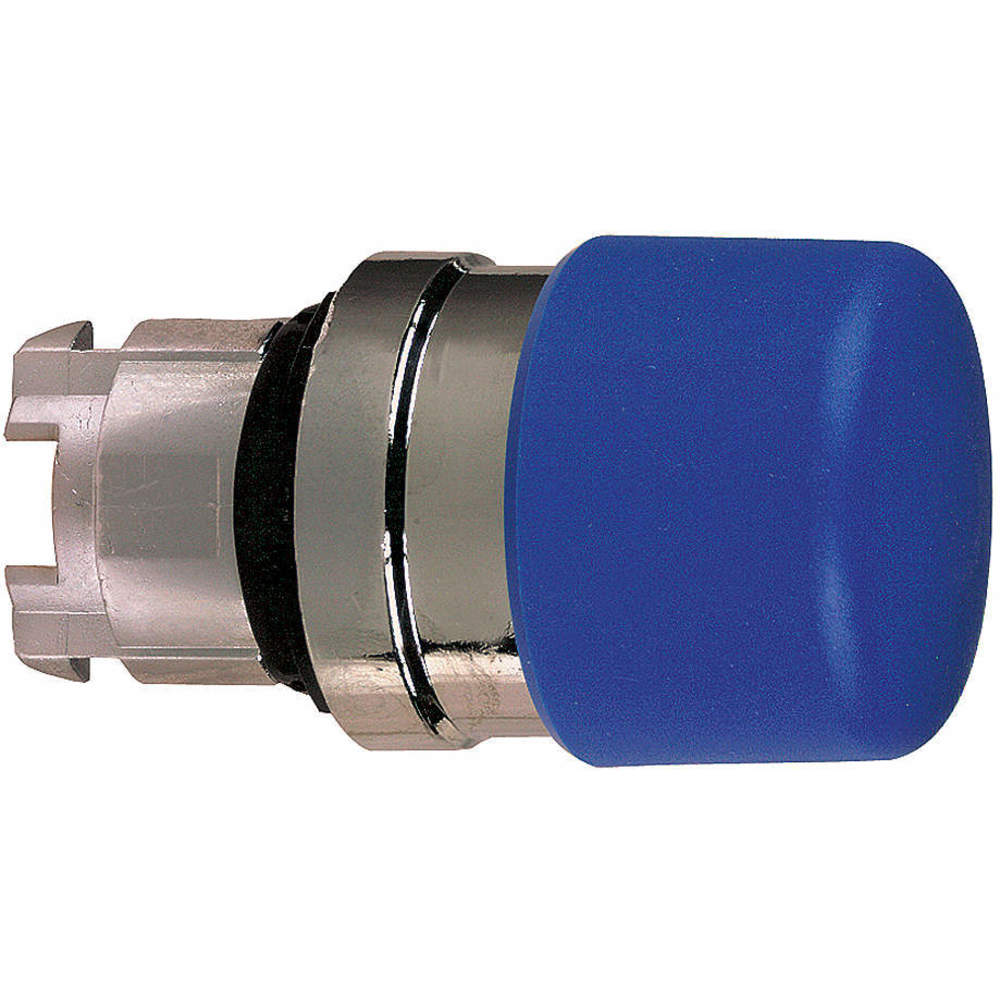

Blue Push Button Head, Spring Return, 22mm Cutout, Harmony XB4 Series
Weight:
0.00625
Weight:
1.0 LB
Preferred Price:
35.86
Price:
35.86
Min Simple Price:
19.6
Absolute Min Price:
27.83
Min Price:
27.83
Dimensions:
[4.0, 3.0, 3.0]
qty:
21
simpleSku:
DY0NDY:::ZB4BC64
sku:
DY0NDY::IC:ZB4BC64@y0
condition:
11
seller:
TME
amzMan:
schneider electric / square d
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| (Select First, Then Apply Filters) Compatible Series | Schneider, Harmony XB4 |
| Action | Spring Return, Momentary Push |
| Actuation | Spring Return |
| Actuator | spring return;Blue mushroom ? 30 mm, unmarked |
| Actuator colour | blue |
| Actuator Type | mushroom, Pushbutton, Mushroom |
| Ambient Air Temperature For Operation | -40-70?C |
| Application | MUSHROOM HEAD |
| Basic Material | Metal |
| Bezel Material | Chrome Die Cast Aluminum |
| Brand | SCHNEIDER ELECTRIC |
| Button marking | blank |
| Button shape | mushroom |
| Cad Overall Depth | 52 mm |
| Cad Overall Height | 30 mm |
| Cad Overall Width | 30 mm |
| Catalog Number | ZB4BC64 |
| Category | Switches |
| Color | blue |
| Country of Origin | Czech Republic |
| Description | HEAD FOR NON ILLUMINATED PUSH BU |
| Detailed Description | Configurable Switch Body Pushbutton, Mushroom Non-Illuminated |
| Device Presentation | basic element |
| Digi-Key Part Number | 4008-ZB4BC64-ND |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Enclosure | NEMA 13-NEMA 4X |
| Environmental Conditions | IP 65 |
| Face dimensions | ?30mm |
| Family Name | Harmony XB4 / XB5 Family |
| Head Material | Aluminum-Zinc Alloy |
| Illumination | none, Non-Illuminated |
| Indicator | blue |
| Ip Degree Of Protection | IP66 IEC 60529 || IP69 || IP69K |
| IP Rating | 66 |
| IP rating | IP66 |
| Item | Push Button operator |
| Item Type | Head for non-illuminated push-button |
| Legend | No Legend |
| Made in USA | No |
| Manufacturer | SCHNEIDER ELECTRIC |
| Manufacturer Product Number | ZB4BC64 |
| Manufacturer series | Harmony XB4 |
| Manufacturer Standard Lead Time | 1 Weeks |
| Material | Chromium plated metal |
| Mechanical Durability | 5000000 cycles |
| Mfr | SCHNEIDER ELECTRIC |
| Mounting Diameter | 22 mm |
| Mounting hole diameter | ?22mm |
| Mounting Hole Size | 22 |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Number of Operators | 1 |
| Number of positions | 2 |
| Operating temperature | -25...70?C |
| Operating Temperature | -40-70 A Degrees C |
| Operation | Momentary |
| Package | Box |
| Panel Cutout Dimensions | 22mm (Round) |
| Primary Type | Pushbutton |
| Product Status | Active |
| Product Type | Push Button operator |
| Related items | ZB4BZ009, |
| Requires | Contact Block(s) |
| Series | Harmony XB4, Harmony XB4 Series |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Size | 22 mm, 0.87 |
| Special Features | CHROMIUM PLATED METAL,HEAD FOR NON-ILLUMINATED PUSH-BUTTON |
| Stable positions number | 1 |
| Standard | 30 GN 18 MS) HALF SINE WAVE ACCELERATION IEC 60068-2-27-50 GN 11 MS) HALF SINE WAVE ACCELERATION IEC 60068-2-27,5 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-4-EN/IEC 60947-5-1-UL 508-EN/IEC 60947-5-5-CSA C22.2 NO 14-JIS C8201-5-1-EN/IEC 60947-1-JIS C8201-1,IK06 IEC 50102,IP66 IEC 60529-IP69-IP69K,LROS (LLOYDS REGISTER OF SHIPPING)-BV-GL-RINA-CSA-DNV-UL LISTED |
| Standards | CE, CSA, EN/IEC 60947-5-4, EN/IEC 60947-5-5, RoHS, UL |
| Sub Brand | ZB4 |
| Switch standard | 22mm |
| Switches features | witout symbol |
| Type | Momentary |
| Type of Operator | 30mm dia Mushroom Head |
| Type of switch | push-button |
| UPC | 785901381969 |
| UPC Code | 785901381969 |
| Warranty Description | Contractual Warranty:18 months |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | TME | ZB4BC64 | 19.6 | 19.6 | 1 | In Stock | SCHNEIDER ELECTRIC | 19.6 @ Qty: 1+ | ||
 | Zoro | G6374085 | 20.99 | 20.99 | 1 | 1 | Schneider Electric | 0.1 | 20.99 @ Qty: 1+ | |
 | kempstoncontrols.co.uk | ZB4BC64 | 21.9112335 | 21.9112335 | 1 | In Stock | Schneider | 21.9112335 @ Qty: 1+ | ||
| RS Delivers | 815-4026 | 22.5 | 22.5 | 1 | In Stock | Schneider Electric | 22.5 @ Qty: 1+ | |||
 | Radwell | ZB4BC64 | 23.6 | 23.6 | 1 | 2 | SCHNEIDER ELECTRIC | 23.6 @ Qty: 1+ | ||
 | gordonelectricsupply.com | ZB4BC64 | 25.69 | 25.69 | 1 | In Stock | 10 | SQUARE D | 25.69 @ Qty: 1+ | |
| standardelectricsupply.com | 2334868 | 34.93 | 34.93 | 1 | In Stock | Schneider Electric | 34.93 @ Qty: 1+ | |||
 | sustainablesupply.com | C1197695 | 38.1 | 38.1 | 1 | In Stock | Schneider Electric | 0.1 | 38.1 @ Qty: 1+ | |
 | Digi-Key | 16605263 | 42.88 | 42.88 | 1 | 5 | Schneider Electric | 42.88 @ Qty: 1+ | ||
| us.rs-online.com | 70336619 | 50.69 | 50.69 | 1 | 1 | Schneider Electric | 50.69 @ Qty: 1+ | |||
 | crescentelectric.com | 196309 | 51.41 | 51.41 | 1 | In Stock | Schneider Electric | 51.41 @ Qty: 1+ | ||
| Newark | 80C8158 | 51.68 | 51.68 | 1 | In Stock | SCHNEIDER ELECTRIC | 51.68 @ Qty: 1+ | |||
 | Raptor Supplies | AG6UYU | 53.40933 | 53.40933 | 1 | In Stock | SCHNEIDER ELECTRIC | 53.40933 @ Qty: 1+ |
