B00E2XXT3Q

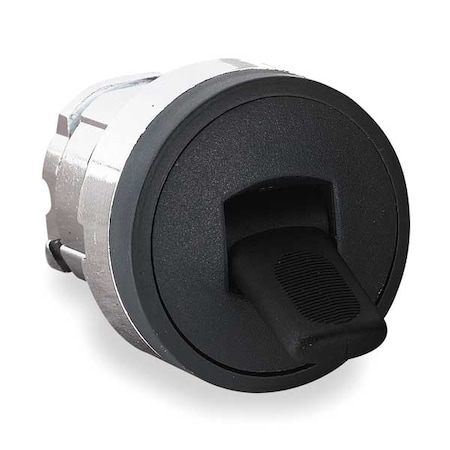

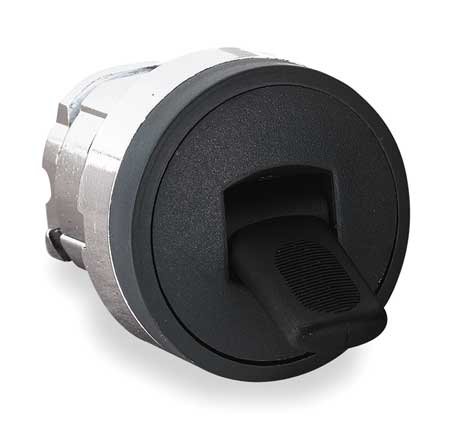

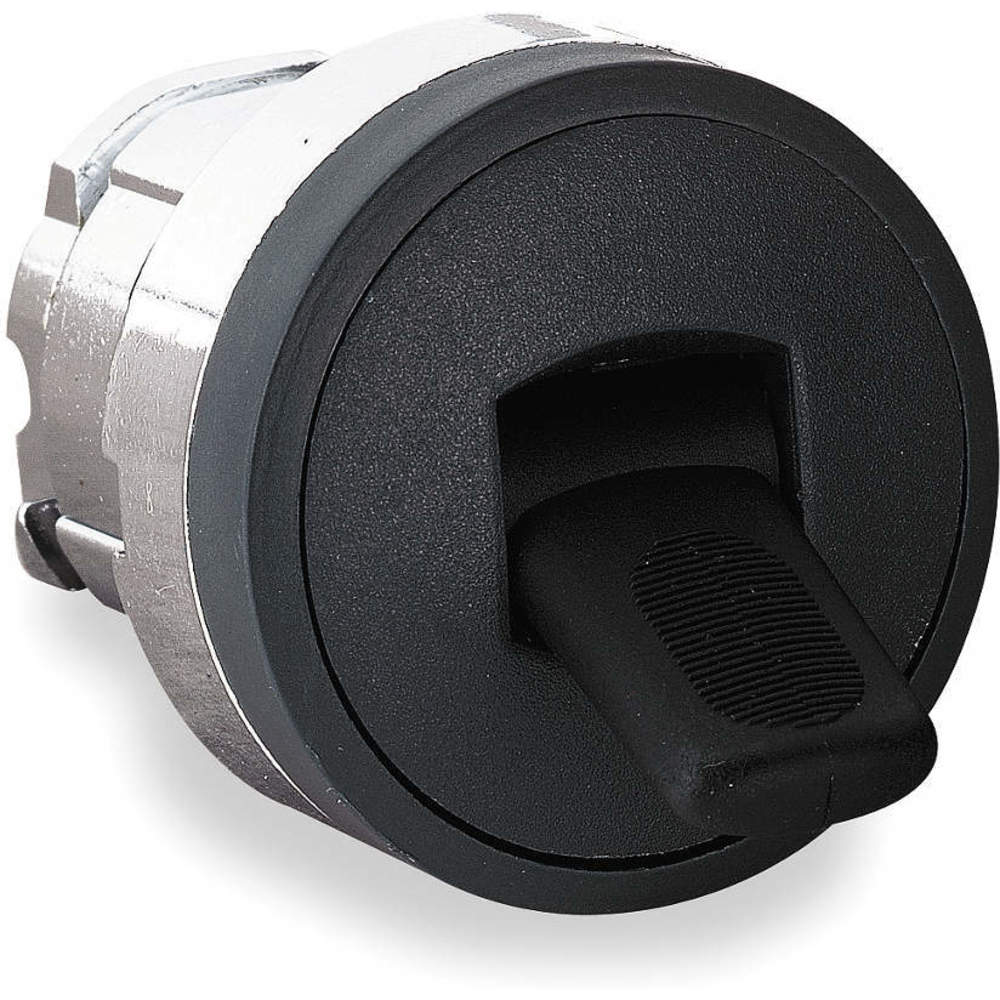

Toggel Switch Operator, 22mm, Black

Toggel Switch Operator, 22mm, Blackzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4,.
Accessory GroupB
ActionSpring Return, Momentar.
ActuationSpring Return
Actuatorspring return;Black tog.
Actuator colourBlack
Actuator TypePushbutton, Selector
ApplicationSELECTOR SWITCH
Basic MaterialMetal
Bezel MaterialChrome Die Cast Aluminum
BrandSCHNEIDER ELECTRIC
Button markingblank
Button shapeprominent
Cad Overall Depth45 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BD48
CategorySwitches
ColorBlack
Country of OriginFrance
Description2 POS SPRING RET TOGGLE.
Detailed DescriptionConfigurable Switch Bod.
Device Presentationbasic element
Digi-Key Part Number4008-ZB4BD48-ND
Electrical Composition .C11 3 single front moun.
EnclosureNEMA 13-NEMA 4X
Family NameHarmony XB4 Family
Head MaterialAluminum-Zinc Alloy
Illuminationnone, Non-Illuminated
IndicatorBlack
IP Rating66, IP66
IP ratingIP66
ItemToggle Switch Operator
Item TypeHead for selector switch
LegendNo Legend
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Product Nu.ZB4BD48
Manufacturer seriesHarmony XB4
Manufacturer Standard L.1 Weeks
MaterialChromium plated metal
MfrSCHNEIDER ELECTRIC
Mounting Diameter22 mm
Mounting hole diameter?22mm
NEMA Rating1, 13, 2, 3, 4, 4X
Number of Operators1
Number of positions2
Operating Temperature-40-70 A Degrees C
Operating temperature-25...70?C
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Product StatusActive
Product TypeToggle Switch Operator
Related itemsZB4BZ009,
RequiresContact Block(s)
SeriesHarmony XB5, ZB4 Series
Shape Of Signaling Unit.round
Size22 mm, 0.87
Special FeaturesCHROMIUM PLATED METAL,H.
Stable positions number1
Standard30 GN 18 MS) HALF SINE .
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
Switch standard22mm
TypeMomentary
Type of Operator2-Position Toggle Switch
Type of switchtoggle
UPC785901381976
UPC Code785901381976
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BD4814.6511SCHNEIDER ELECTRIC14.65 @ 1
thumbzoomZoroG135900535.191In StockSchneider Electric0.0535.19 @ 1
Graybar2208243650.41In StockSquare D (Schneider Electric)50.4 @ 1
thumbzoomsustainablesupply.comC121179751.511In StockSchneider Electric0.0551.51 @ 1
standardelectricsupply.com225794555.371In StockSchneider Electric55.37 @ 1
thumbzoomkempstoncontrols.co.ukZB4BD4863.63308251In StockSchneider63.6330825 @ 1
RS Delivers815-407365.1121In StockSchneider Electric65.112 @ 1
us.rs-online.com7033663765.691In StockSchneider Electric65.69 @ 1
Newark80C816075.751In StockSCHNEIDER ELECTRIC75.75 @ 1
thumbzoomDigi-Key1718008280.331In StockSchneider Electric80.33 @ 1
thumbzoomcrescentelectric.com46925481.481In StockSchneider Electric81.48 @ 1
thumbzoomRaptor SuppliesAG7EXA91.38805651In StockSCHNEIDER ELECTRIC91.3880565 @ 1
