CAI - SCHNEIDER ELECTRIC ZB4BH04

B07J6SKDCB

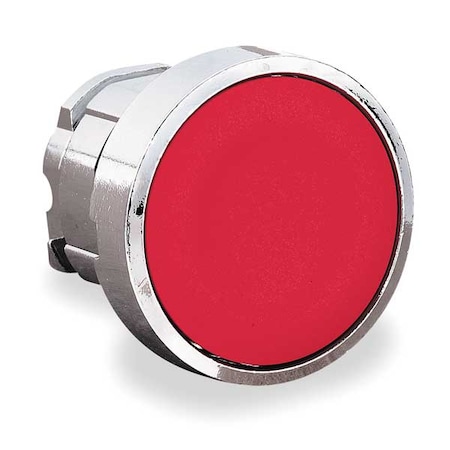

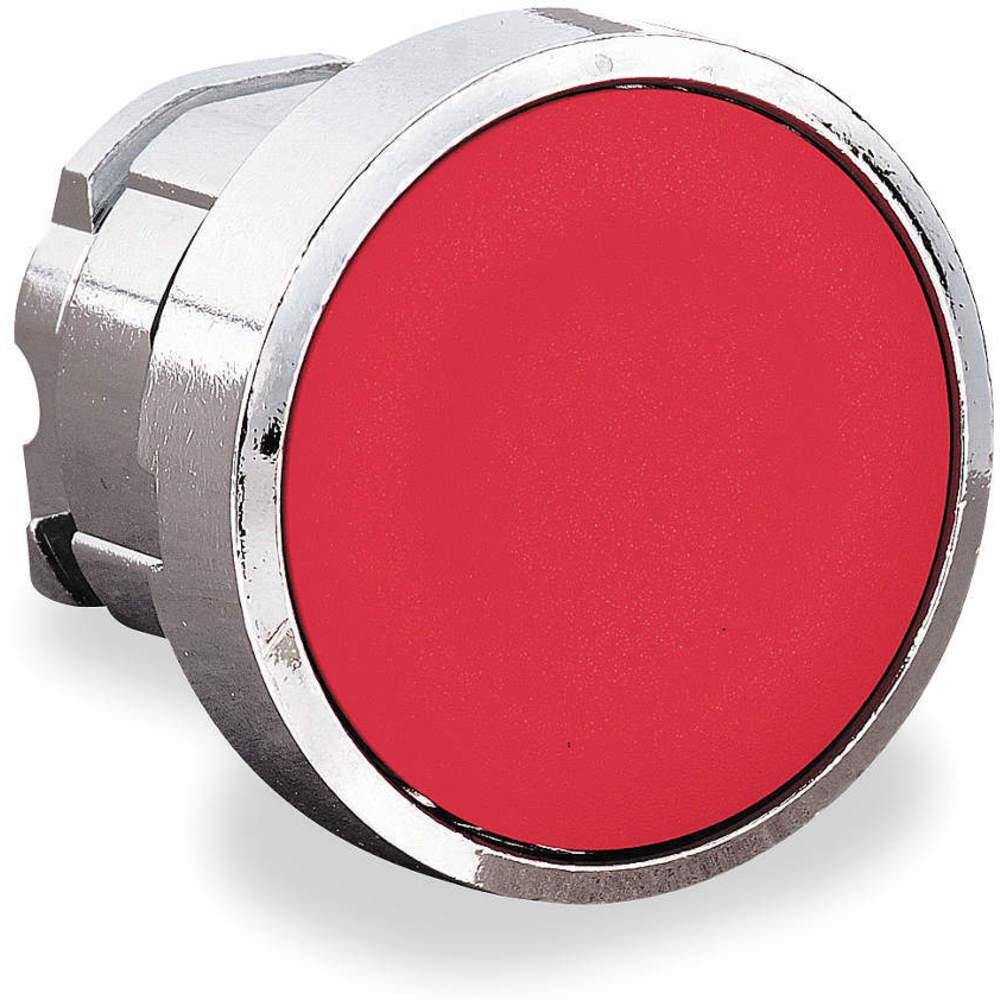

Schneider Electric Metal Push Button Operator, Type of Operator: Flush Button, Size: 22mm, Action: Maintained Push

Schneider Electric Metal Push Button Operator, Type of Operator: Flush Button, Size: 22mm, Action: Maintained Pushzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
Accessory GroupB
ActionMaintained Push, PUSH-P.
ActuationSpring Return
Actuatorpush-push;Red flush, un.
Actuator TypePushbutton, Pushbutton,.
ApplicationPUSH-BUTTON
Basic MaterialMetal
Bezel MaterialChrome Die Cast Aluminum
BrandSchneider Electric
Cad Overall Depth28 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BH04
CategorySwitches
ColorRed
ColourRed
ConditionNew
Country of OriginFR - France, France
DescriptionHARMONY XB4, PUSH BUTTO.
Detailed DescriptionConfigurable Switch Bod.
Digi-Key Part Number4008-ZB4BH04-ND
ECCNEAR99
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
GTIN03389110122657
Head MaterialAluminum-Zinc Alloy
IlluminationNon-Illuminated
IndicatorRed
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP Rating66, IP66
ItemPush Button operator
Item TypeHead for non-illuminate.
LegendNo Legend
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.ZB4BH04
Manufacturer Standard L.6 Weeks
MaterialChromium plated metal
Mechanical Durability2000000 cycles
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22
NEMA Rating1, 13, 2, 3, 4, 4X
Number of Operators1
Operating Temperature-40-70 A Degrees C
OperationPush-On/Push-Off
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Primary TypePushbutton
Product StatusActive
Product TypePush Button operator
Protective TreatmentTH
RequiresContact Block(s)
SeriesHarmony XB4, ZB4 Series
Size22 mm, 0.87
Special FeaturesCHROMIUM PLATED METAL,H.
Standard30 GN 18 MS) HALF SINE .
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
TerminationScrew
TypeMaintained
Type of OperatorFlush Button
UNSPSC39122216
UPC785901377504
UPC Code785901377504
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty DescriptionContractual Warranty:18.
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Graybar2210060711.12161In StockSquare D (Schneider Electric)11.1216 @ 1
thumbzoomZoroG109140411.99145Schneider Electric0.0511.99 @ 1
thumbzoomTMEZB4BH0414.41112SCHNEIDER ELECTRIC14.41 @ 1
thumbzoomgordonelectricsupply.comZB4BH0415.491In Stock10SQUARE D15.49 @ 1
RadwellZB4-BH0415.51In StockSCHNEIDER%20ELECTRIC15.5 @ 1
thumbzoomindustrialrefrigerationparts.comZB4BH0415.661In StockSquare D2.015.66 @ 1
RS Delivers380-525217.37616Schneider Electric17.376 @ 1
us.rs-online.com7035351118.2111Schneider Electric18.21 @ 1
thumbzoomDigi-Key1661353718.8319Schneider Electric18.83 @ 1
thumbzoomcrescentelectric.com67178020.521In StockSchneider Electric20.52 @ 1
thumbzoomNewark80C817521.41In StockSCHNEIDER ELECTRIC21.4 @ 1
thumbzoomsustainablesupply.comC121181321.541In StockSchneider Electric0.0521.54 @ 1
thumbzoomblackhawksupply.comZB4BH0423.51In StockSquare D23.5 @ 1
thumbzoomNational Supply Network5442315730.511In StockSchneider Electric30.51 @ 1
thumbzoommidwestapplianceparts.comZB4BH04-SQ-P33.051In StockSquared33.05 @ 1
grainger.caTLQZB4BH0459.813672461In StockSCHNEIDER ELECTRIC0.0559.81367246 @ 1
thumbzoomRaptor SuppliesAG7EXZ82.96323751In StockSCHNEIDER ELECTRIC82.9632375 @ 1
