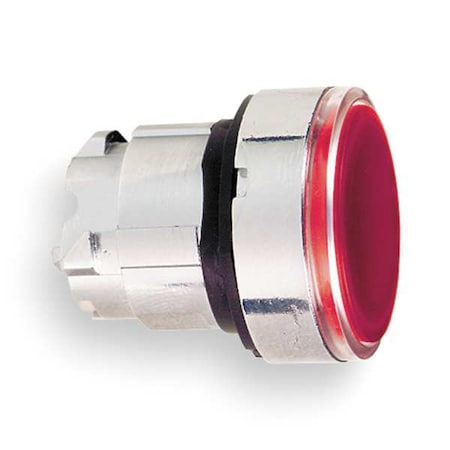

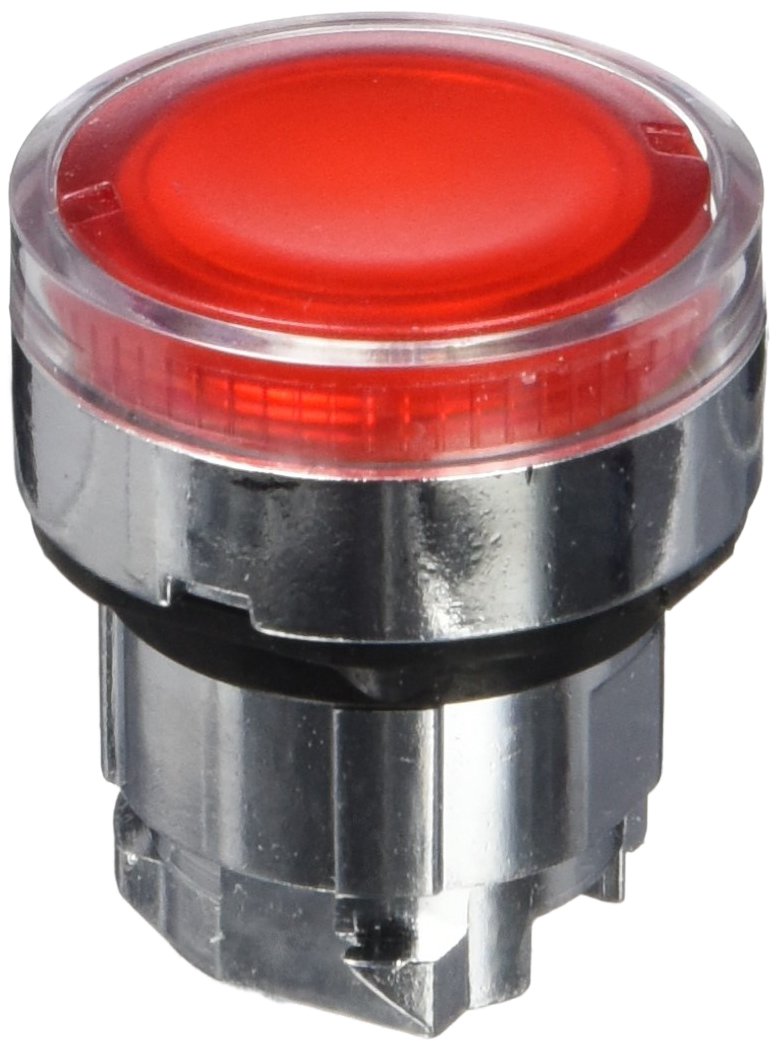

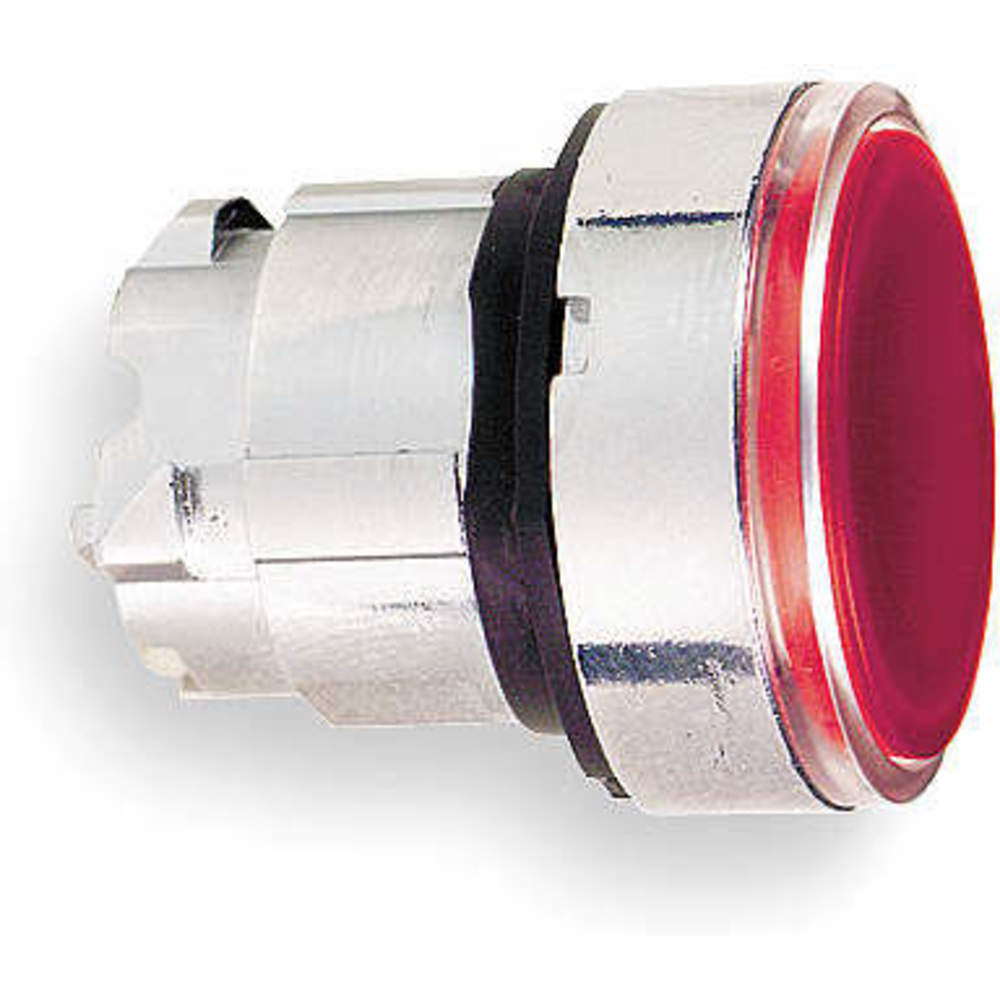

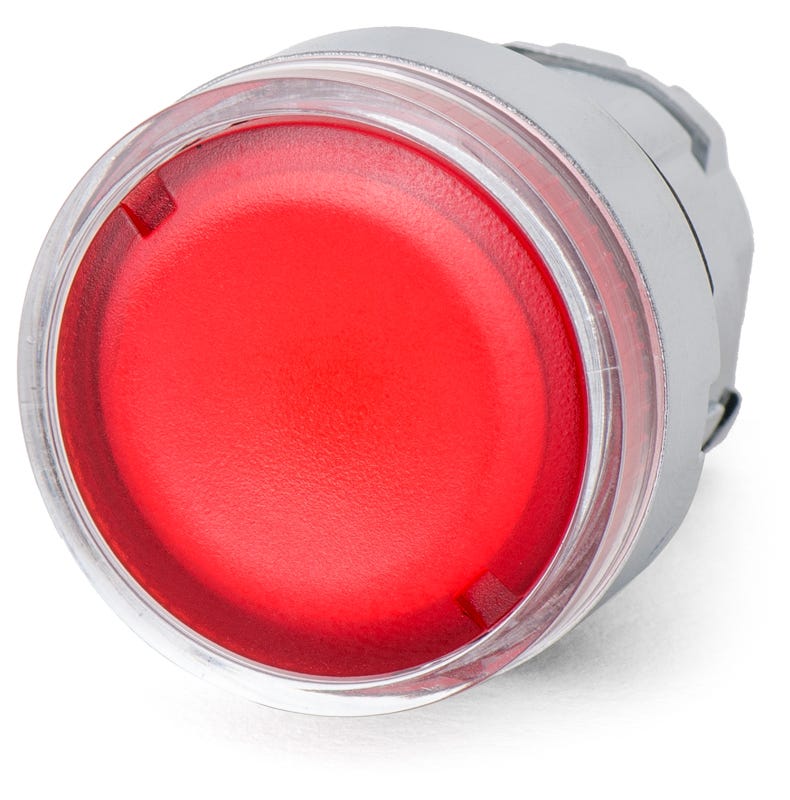

Schneider Electric ZB4BW34

B000WLF7SM

CABEZA Puls.LUM.RASANTE Rojo

CABEZA Puls.LUM.RASANTE Rojozoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB5
ActionMomentary
Actuatorspring return;Red flush.
Actuator TypeRound Flush, Pushbutton.
Ambient Air Temperature.-40-70?C
ApplicationBA 9s
ApprovalsBV, CSA, GL, RINA, UL
Basic MaterialMetal
BezelChrome Plated Metal
Bezel Materialchromium plated metal
BrandSchneider Electric
Cad Overall Depth32 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BW34
CategorySwitches
ColorRed
Color FamilyRed
ColourRed
Country of OriginCzech Republic, CZ - Cz.
DescriptionHARMONY XB4, ILLUMINATE.
Detailed DescriptionConfigurable Switch Bod.
Digi-Key Part Number4008-ZB4BW34-ND
ECCNEAR99
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
Family SeriesSquare D Switches, Harm.
Gross Weight0.05 lbs
GTIN03389110889710
Gtin785901354758
Head MaterialAluminum-Zinc Alloy
IlluminationIlluminated, Illuminate.
Illumination ColorRed
IndicatorRed
IP RatingIP65, 66
ItemIlluminated Push Button.
Item NumberZB4BW34
Item TypeHead for illuminated pu.
Lamp Module TypeTransformer
Lamp Module VoltageModule Not Included
Lamp TypeIncandescent, LED, Neon
Lamp VoltageDependent on Module Used
LegendNo legend
Lens/Button ColorRed
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number437925
Manufacturer Product Nu.ZB4BW34
Manufacturer Standard L.6 Weeks
Materialchromium plated metal
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22 mm
Mounting TypePanel Mount
MpnZB4BW34
Nema RatingNEMA 1/2/3/4/4X/12/13
NEMA RatingNEMA 4X, NEMA 13, 13, 4X
Net Weight0.06 lbs
Nominal Mounting Size22 mm
Operating Temperature-40-55 A Degrees C
Operator Size (mm)22 mm
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Product SeriesHarmony XB4
Product StatusActive
RequiresContact Block(s), Illum.
SeriesHarmony XB4, ZB4 Series.
Shock Resistance30 gn 18 ms) half sine .
Size22 mm, 0.87
Special FeaturesIlluminated, Flush Beze.
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
TypePush Button, Momentary
Type of OperatorFlush Button
UNSPSC39122216
UPC785901354758
Upc785901354758
UPC Code785901354758
Warranty DescriptionContractual Warranty:18.
