Schneider Electric ZB4BW37

B001GPCH6I

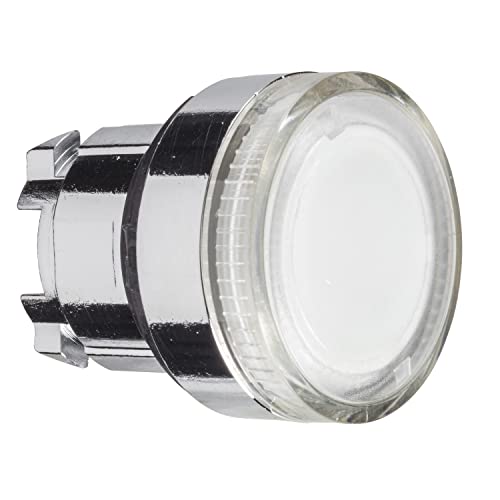

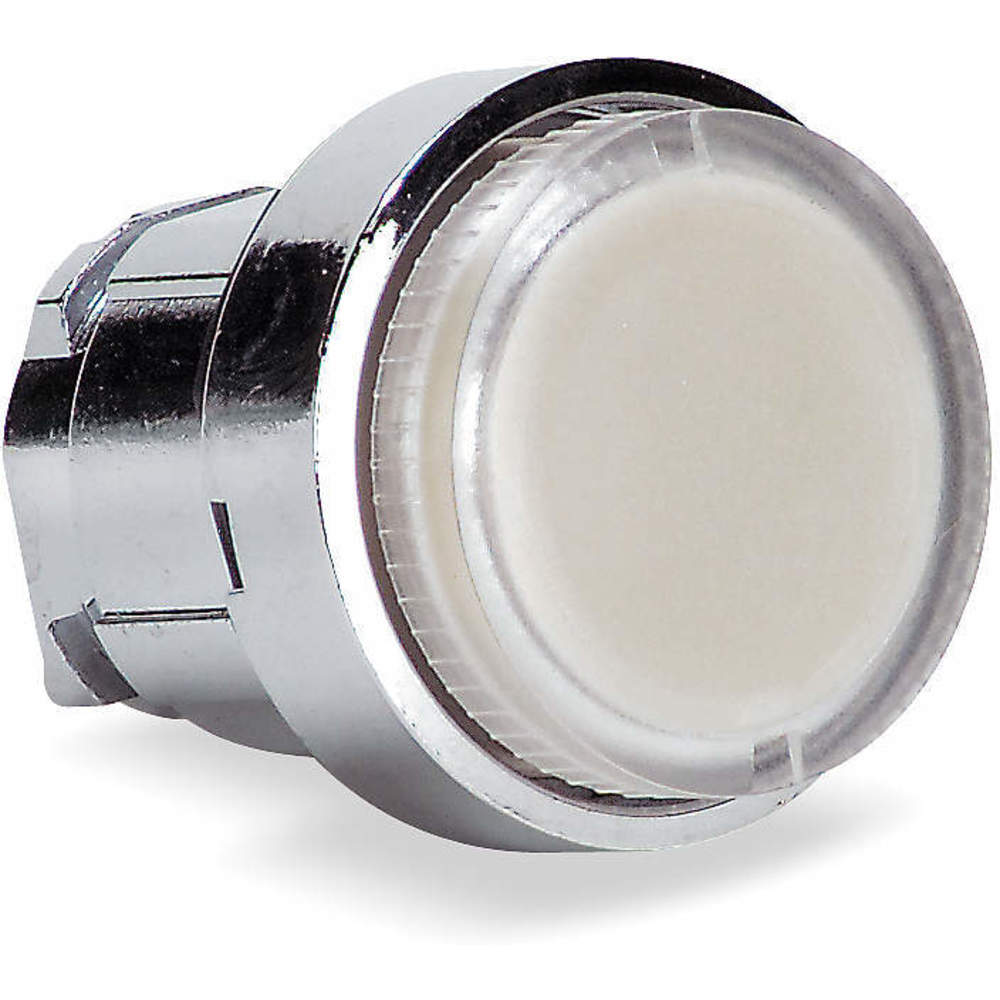

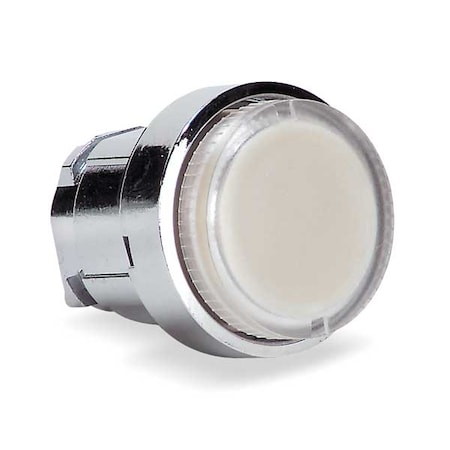

Non-Illum Push Button Operator, Clear

Non-Illum Push Button Operator, Clearzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
ActionSPRING RETURN, Momentar.
Actuatorspring return;Clear flu.
Actuator TypePushbutton, Pushbutton,.
Ambient Air Temperature.-40-55?C
ApplicationBA 9s
Basic MaterialMetal
Bezel MaterialChrome Die Cast Aluminum
BrandSchneider Electric
Cad Overall Depth32 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BW37
CategorySwitches
ColorClear
Color FamilyClear
ColourClear
Country of OriginCzech Republic, CZ - Cz.
DescriptionHARMONY XB4, ILLUMINATE.
Detailed DescriptionConfigurable Switch Bod.
Digi-Key Part Number4008-ZB4BW37-ND
ECCNEAR99
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
GTIN03389110123227
Head MaterialAluminum-Zinc Alloy
IlluminationIlluminated - Clear
IndicatorClear
IP Rating66
ItemPush Button operator
Item TypeHead for illuminated pu.
LegendNo Legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.ZB4BW37
Manufacturer Standard L.3 Weeks
MaterialChromium plated metal
Mechanical Durability10000000 cycles
MfrSchneider Electric
Mounting Diameter22 mm
Mounting Hole Size22
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA Rating1, 13, 2, 3, 4, 4X
Number of Operators1
Operating Temperature-40-55 A Degrees C
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Primary TypePushbutton
Product StatusActive
Product TypePush Button operator
RequiresContact Block(s), Illum.
Resistance To High Pres.7000000 Pa 55?C 0.1 m
SeriesHarmony XB4, ZB4 Series
Size22 mm, 0.87
Special FeaturesWITH PLAIN LENS
Standard30 GN 18 MS) HALF SINE .
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
TypeMomentary
Type of OperatorFlush Button
UNSPSC39122216
UPC785901354734
UPC Code785901354734
Vibration Resistance5 gn 2-500 Hz)IEC 60068.
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BW3710.021In StockSCHNEIDER ELECTRIC10.02 @ 1
Graybar9949626811.7041In StockSquare D (Schneider Electric)11.704 @ 1
thumbzoommostelectric.comZB4BW3712.3512SQUARE D/TELEMECANIQUE12.35 @ 1
RS Delivers331-012012.372162Schneider Electric12.372 @ 1
thumbzoomZoroG077773413.251In StockSchneider Electric0.113.25 @ 1
standardelectricsupply.com33059014.741In StockSchneider Electric14.74 @ 1
grainger.caTLQZB4BW3715.183861521In StockSCHNEIDER ELECTRIC0.115.18386152 @ 1
us.rs-online.com7000887715.3215Schneider Electric15.32 @ 1
thumbzoomgordonelectricsupply.comZB4BW3716.291In Stock10SQUARE D16.29 @ 1
thumbzoomDigi-Key1661278719.8917Schneider Electric19.89 @ 1
thumbzoomcrescentelectric.com30680521.691In StockSchneider Electric21.69 @ 1
thumbzoomNewark17C844221.791In StockSCHNEIDER ELECTRIC21.79 @ 1
thumbzoomsustainablesupply.comC121190822.881In StockSchneider Electric0.122.88 @ 1
thumbzoomRaptor SuppliesAG7FCB29.84441851In StockSCHNEIDER ELECTRIC29.8444185 @ 1
thumbzoomNational Supply Network6967057831.31In StockSchneider Electric31.3 @ 1
