mpn:
brand:
manufacturer:
MPN:
Description:

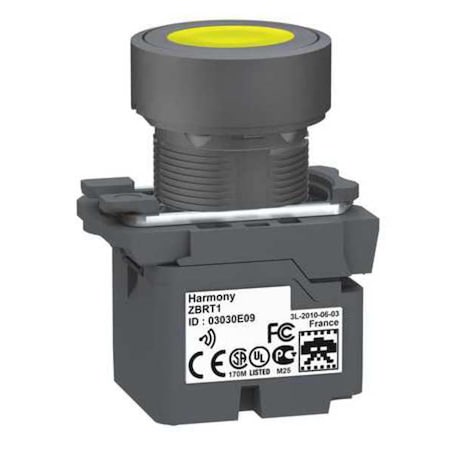

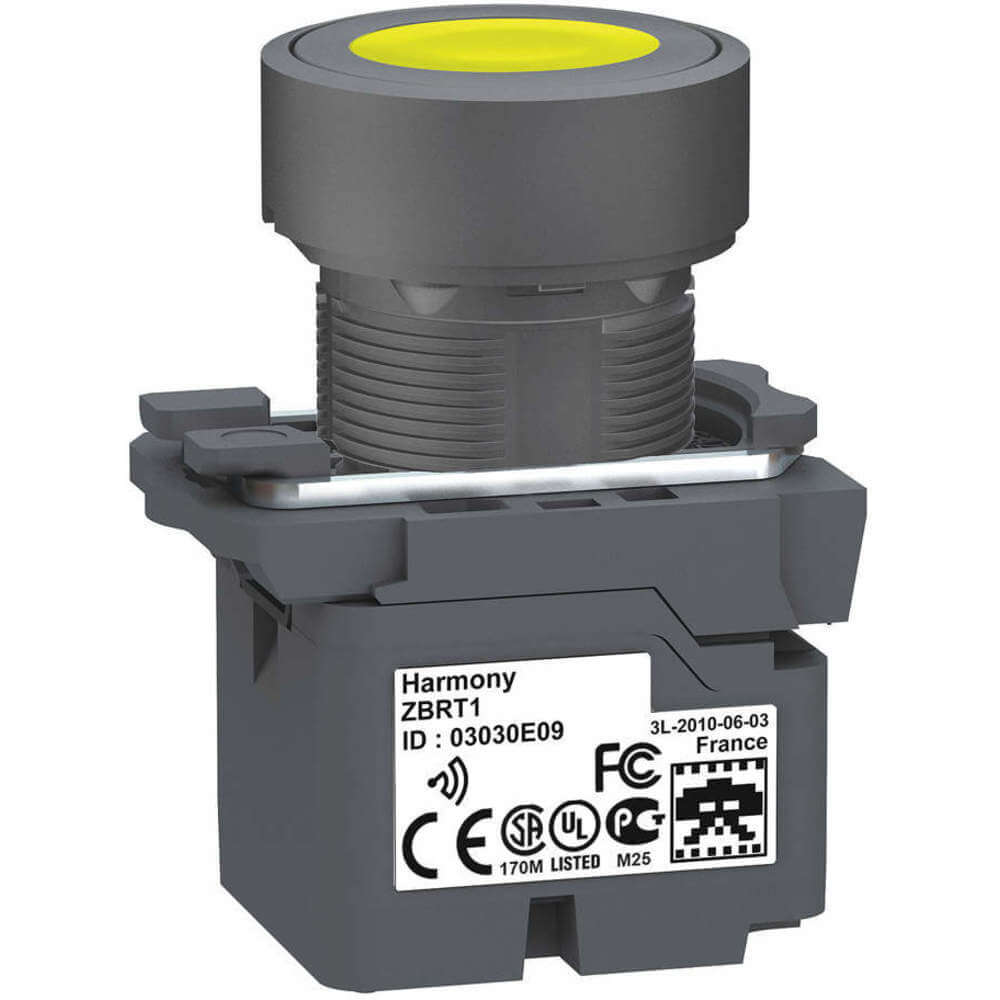

Pushbutton, ZB5R Transmitter, Complete, 22mm, Green, Harmony XB5 Series
Weight:
0.1
Weight:
0.006875 LB
Preferred Price:
181.51
Price:
181.51
Min Simple Price:
102.552
Absolute Min Price:
145.62
Min Price:
145.62
Dimensions:
[4.0, 3.0, 2.0]
qty:
21
simpleSku:
jM2NTM:::ZB5RTA5
sku:
jM2NTM::PY:ZB5RTA5@y0
condition:
11
seller:
RS Delivers
amzMan:
schneider electric
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Action | SPRING RETURN PUSH-BUTTON WITH TRANSMITTER, Momentary |
| Action, Operator Type | Spring Return |
| Actuator | spring return push-button with transmitter;Yellow flush, Flush |
| Application | WIRELESS PUSH-BUTTON |
| Bandwidth | 5-5 MHz |
| Bezel Material, Material | dark grey plastic |
| Bezel/Housing | Dark Gray Plastic |
| Brand, Manufacturer | Schneider Electric |
| Cad Overall Depth | 43 mm |
| Cad Overall Height | 41.5 mm |
| Cad Overall Width | 30 mm |
| Catalog Number, Mpn | ZB5RTA5 |
| Color, Indicator | Yellow |
| Country of Origin | FR - France, France |
| Current Stock | 3 |
| ECCN | EAR99 |
| Embedding Depth | 42 mm |
| Enclosure Type | IP30/IP65/IK03 |
| Environmental Conditions | -40 to 70 deg C Storage Temperature, 95% Relative Humidity |
| Family Name | Harmony XB4 / XB5 Family |
| Height | 1.3 in |
| International Shipping, Made in USA | No |
| IP Rating | 30 |
| Item Type | Wireless and batteryless transmitter |
| Item, Product Type | Push Button with Transmitter |
| Lamp Type | LED |
| Lead Time | Expected to ship in 1-2 business days |
| Legend Markings | No Legend |
| Length, Length (Straight Wireway) | 2.05 in |
| Material | Plastic |
| Mounting | Fixing nut beneath head 2-2.4 N.m |
| Mounting Diameter, Size | 22 mm |
| Mounting type | Panel |
| NEMA Rating | 12 |
| Number of Operators | 1 |
| Operating Temperature | -25-55 A Degrees C |
| Response Time | < 2 ms |
| Series | Harmony, Harmony XB5 Series, ZB5R |
| Size | 0.87, 22, 22 mm |
| SKU | ZO-G4115483 |
| Special Features | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Standard | Free fall resistance 1000 mm EN/IEC 60068-2-32;CSA C22.2 No 14;EN/IEC 60947-1;EN/IEC 60947-5-1;UL 508;ANATEL;ARIB T66;FCC;ICASA;RSS |
| Standards | UL/CSA |
| Sub Brand | XB5R |
| SubCategory | Electrical |
| Temperature Rating (Degrees F) | -25 to 55, -25 to 55 deg C |
| Terminal Type | Screw |
| Type | Batteryless Round |
| Type of Operator | Flush Push Button |
| UNSPSC | 39122216 |
| UPC, UPC Code | 785901706151 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.39 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| RS Delivers | 739-8115 | 102.552 | 102.552 | 1 | 17 | Schneider Electric | 102.552 @ Qty: 1+ | |||
 | Zoro | G4115483 | 122.99 | 122.99 | 1 | In Stock | Schneider Electric | 0.11 | 122.99 @ Qty: 1+ | |
| Graybar | 25404134 | 125.44 | 125.44 | 1 | In Stock | Square D (Schneider Electric) | 125.44 @ Qty: 1+ | |||
 | standardelectricsupply.com | 2266834 | 137.84 | 137.84 | 1 | In Stock | Square D (Schneider Electric) | 137.84 @ Qty: 1+ | ||
 | simsupply.com | ZO-G4115483 | 142.1 | 142.1 | 1 | 3 | Schneider Electric | 142.1 @ Qty: 1+ | ||
 | crescentelectric.com | 208073 | 143.23 | 143.23 | 1 | 1 | Schneider Electric | 143.23 @ Qty: 1+ | ||
 | Newark | 48T3194 | 149.38 | 149.38 | 1 | In Stock | SCHNEIDER ELECTRIC | 149.38 @ Qty: 1+ | ||
| us.rs-online.com | 70008172 | 152.65 | 152.65 | 1 | In Stock | Schneider Electric | 152.65 @ Qty: 1+ | |||
| Future Electronics | 8028413 | 182.08344 | 254.916816 | 2 | In Stock | Schneider Electric | 182.08344 @ Qty: 2+ | |||
 | Raptor Supplies | AF6FYR | 211.246191 | 211.246191 | 1 | In Stock | SCHNEIDER ELECTRIC | 211.246191 @ Qty: 1+ |
