- mpn1241.3258
- brandname: Schurter
- manufacturername: Schurter

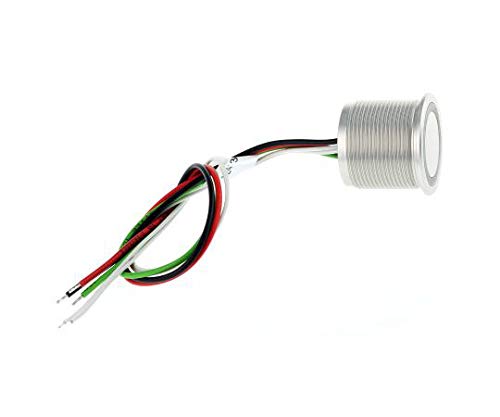

SCHURTER - 1241.3258 - Vandal Resistant Switch, PSE Series, 22.1 mm, SPST-NO, Round Flush, Natural
- Brand: Schurter
- PartNumber: 1241.3258
- Model: 1241.3258
- PackageQuantity: 1
- Manufacturer: SCHURTER
- Label: SCHURTER
Attributes
| Key | Value |
|---|
| Actuator Color | Silver |
| Actuator Marking | No Marking |
| Actuator Type | Round Flush, Round, But. |
| Application | For use in hostile envi. |
| Body Style | Round Flush |
| Category | Switches |
| Circuit | SPST-NO |
| Color | Natural |
| Color - Actuator/Cap | Silver |
| Contact Form | 1NO |
| Current Rating | 0.1 A |
| Current Rating (Amps) | 100mA (AC/DC) |
| Description | SWITCH PUSH SPST-NO 100. |
| Detailed Description | Pushbutton Switch SPST-. |
| Digi-Key Part Number | 486-1562-ND |
| Dimensions, Cutout, Inc. | 22.1 Dia. mm |
| Electrical Life | 20,000,000 Cycles |
| Features | - |
| Illumination | Illuminated |
| Illumination Color | Green ; Red |
| Illumination Type, Color | LED, Green/Red |
| Illumination Voltage (N. | 24 VDC |
| Ingress Protection | IP67 - Dust Tight, Wate. |
| IP Rating | IP67 |
| Lamp Voltage | 24 VDC |
| Manufacturer | SCHURTER Inc. |
| Manufacturer Product Nu. | 1241.3258 |
| Manufacturer Standard L. | 35 Weeks |
| Material | Aluminum Anodized |
| Mechanical Life | - |
| Mfr | SCHURTER Inc. |
| Mounting Hole Size | 22 mm |
| Mounting Type | Panel Mount, Front, Pan. |
| Operating Temperature | -40?C ~ 85?C |
| Operation | Off (Mom) |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 22.10mm Dia |
| Product Status | Active |
| Series | PSE Series, PSE |
| Special Features | No moving parts |
| Switch Function | Off-Mom |
| Temperature Rating | -40 to +85 ?C C |
| Termination | Wire Leads |
| Termination Style | Wire Leads |
| Type | Piezo |
| Voltage Rating | 42 V |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 60 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | TME | 1241.3258 | 64.59 | 1 | 20 | | SCHURTER | | 64.59 @ 1 |
 | Digi-Key | 2538218 | 83.48 | 1 | 11 | | SCHURTER Inc. | | 83.48 @ 1 |
| us.rs-online.com | 70020850 | 101.66 | 20 | In Stock | | Schurter | | 101.66 @ 20 |
| RS Delivers | 777-7552 | 101.988 | 1 | 82 | | Schurter | | 101.988 @ 1 |
 | Newark | 70K8259 | 117.72 | 20 | In Stock | | SCHURTER | | 117.72 @ 10 |
 | Radwell | 1241.3258 | 130.0 | 1 | In Stock | | SCHURTER | | 130.0 @ 1 |
