- mpn3405.0175.11
- brandname: SCHURTER
- manufacturername: SCHURTER

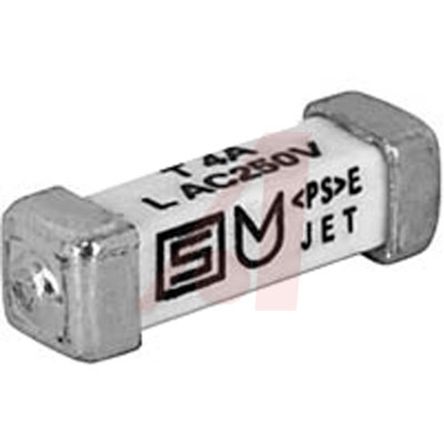

Schurter 3405.0175.11 Fuses
- Brand: Schurter
- PartNumber: 3405.0175.11
- Manufacturer: Schurter
- Label: Schurter
Attributes
| Key | Value |
|---|
| Ambient Temperature | -40 to 85 C |
| Approvals | VDE Certificate Number:. |
| Body Material | ceramic |
| Brand | SCHURTER |
| Breaking Capacity at Ma. | 100 A @ 125 V dc, 100 A. |
| Breaking characteristics | 1.25I |
| Class | Class F |
| Contact material | copper |
| Contact plating | tinned |
| Current Rating | 8 A, 8A |
| Current rating | 8A |
| Dimensions | 10.1 x 3 x 3mm, 10.1 x . |
| Fuse characteristics | quick blow |
| Fuse size | 3x10.1mm, 3x10.1mm, |
| Fuse Speed | F |
| Fuse Type | Non-Resettable |
| Fuses application | lighting, |
| Height | 3mm |
| Kind of fuse | ceramic |
| Kind of package | bulk, bag, |
| Length | 10.1mm |
| Manufacturer | SCHURTER |
| Manufacturer series | UMF 250 |
| Max voltage drop | 220mV |
| Maximum Operating Tempe. | 125?C |
| Minimum Operating Tempe. | -55?C |
| Mounting | SMD |
| Mounting Type | PCB Mount |
| Operating temperature | -55...125?C |
| Operating Temperature R. | -55 ? +125 ?C |
| Power dissipation | 3W |
| Primary Type | Single Use Fuses |
| Rated voltage | 125V DC/ |
| Series | UMF 250 Series, UMF 250 |
| Soldering temperature | 245?C / 3 s |
| Speed | Fast Acting |
| Standards | IEC 60127-4/2, UL 248-1. |
| Terminal Material | Tin Plated Copper, Tin-. |
| Termination | PCB ; Surface Mount |
| Type | PCB Mounted Fuses |
| Type of fuse | fuse |
| Width | 3mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | 3405.0175.11 | 0.54 | 1 | 100 | | SCHURTER | | 0.54 @ 1 |
| us.rs-online.com | 70231294 | 0.72073 | 500 | 138 | | Schurter | | 0.72073 @ 500 |
 | RS Delivers | 867-4505 | 0.8304 | 100 | 144 | | Schurter | | 0.8304 @ 100 |
 | TME | 3405.0175.11 | 0.88 | 1 | 495 | | SCHURTER | | 0.88 @ 1 |
| Newark | 64T4798 | 0.9 | 500 | 111 | | SCHURTER | | 0.9 @ 500 |
