Accomodates a Fuse, Number of Positions | 3 |
Alternate Mfr Part Number, Manufacturer Part Number | KMF1.1211.11 |
Category | Connectors, Interconnects |
Connector Style, Connector Type | Receptacle, Male Blades - Module |
Connector Style, Part Status | IEC 320-C14 |
Connector Type, Current - IEC, Current - UL, Voltage - IEC | 1A |
Current - IEC, Voltage - IEC | 250VAC |
Current - UL, Voltage - UL | 125VAC |
Current Rating | 1 A |
Cx Capacitance | 47 nF |
Cy Capacitance | 2.2 nF |
Dielectric Strength | >1.7 kVDC (L-N), >2.7 kVDC (L/N-PE) |
Features, Fuse Holder, Drawer | Drawer Sold Separate |
Features, Switch Features | Shielded |
Filter Type | AC Line, Yes (Fuse Not Included) |
Filter Type, Voltage - UL | Filtered (EMI, RFI) - Commercial |
Fuse | Yes |
Fuse Holder, Drawer, Panel Cutout Dimensions | Rectangular - 28.80mm x 47.80mm |
Gender | Male |
Housing Material | Thermoplastic |
Inductance | 2?11 mH |
Ingress Protection | CCC, cULus, ENEC |
Ingress Protection, Material Flammability Rating | IP40 |
Lead Free Status / RoHS Status | RoHS Compliant |
Leakage Current | <0.5 mA |
Manufacturer Standard Lead Time | 14 Weeks |
Material Flammability Rating, Panel Thickness | UL94 V-0 |
Mfr | Schurter Inc. |
Mounting Type | Panel Mount ; Snap-In |
Mounting Type, Number of Positions | Panel Mount, Snap-In |
Mounting Type, Termination | Quick Connect - 0.189" (4.8mm) |
Number of Poles | 2 |
Operating Temperature | -25 to +85 ?C |
Package | Active |
Packaging | Bulk Pack |
Panel Cut Out | 28.8?47.8 mm |
Panel Cutout Dimensions, Panel Thickness | 0.039" ~ 0.098" (1.00mm ~ 2.50mm) |
Panel Thickness | 0.039" (1mm), 0.059" (1.5mm), 0.079" (2mm), 0.098" (2.5mm) |

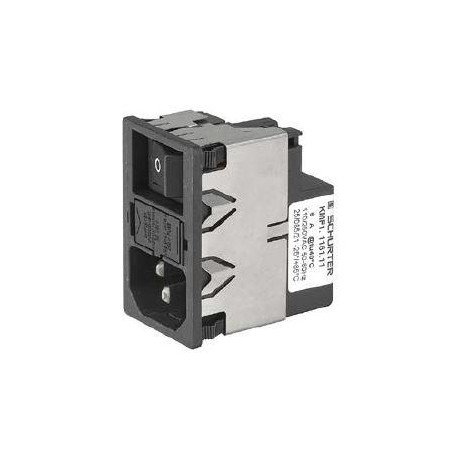

Product Header | Power Entry Module with Line Filter |
Protection | 1 (Fuseholder), 2 (Line Switch) |
Series | Bulk, KMF, KMF Series |
Standard Package | 20 |
Switch Features, Termination | Switch On-Off |
Termination | Quick Connect |
Type | Filter ; Fuse ; Switch |
Version | Standard |
Voltage Rating | 125 ; 250 V |
