Sealmaster SF-16

B006MIDYI4

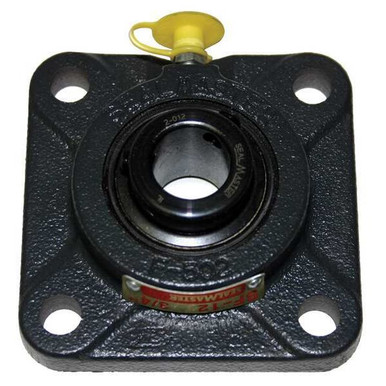

Sealmaster SF-16 Standard Duty Flange Unit, 4 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1" Bore, 3-3/4" Overall Length, 2-3/4" Bolt Hole Spacing Width, 17/32" Flange Height

Sealmaster SF-16 Standard Duty Flange Unit, 4 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1" Bore, 3-3/4" Overall Length, 2-3/4" Bolt Hole Spacing Width, 17/32" Flange Heightzoom

Attributes

Key Value
Back Side to Center Wid.0.625 in
Bearing Housing Materia.Cast Iron
Bearing Insert TypeBall
Bolt Size7/16 in
Bolt Spacing2.75 Inch | 69.85 Milli.
Bore1 Inch | 25.4 Millimeter
Bore Dia.1 in
Bore Diameter1 in
BrandSEALMASTER
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Current Stock20
Dimension A3 3/4 in
Dimension B2 3/4 in
Dimension D1 1/32 in
Dimension E1 7/16 in
Dimension G17/32 in
Dimension H1 7/16 in
Dimension J2 23/32 in
Dimension L1 3/8 in
Dimension M2 23/32 in
Dimension N9/16 in
Duty SeriesStandard
EAN0662461003428
Estimated Weight2.00
Expansion / Non-expansi.Non-expansion
Global Part Number GPN12161
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style4 Bolt Square Flange Bl.
Inch - MetricInch
Insert Material52100 Steel/Black Oxide
Insert Part Number2-1
International ShippingNo
Length Thru Bore1.375 Inch | 34.925 Mil.
Locking DeviceSetscrew
ManufacturerSEALMASTER
Manufacturer NameREGAL BELOIT
Mount Hole Center-to-Ce.2.75 in
Mount Hole Center-to-Ce.2.75 in
Mount Hole Size29/64 in
Mounting Bolt Size3/8 in
Mounting Bolts15/32 Inch
Mounting MethodSet Screw
MpnSF-16
Nominal Bolt Circle Dia.4 Inch | 101.6 Millimet.
Number of Mounting Holes4
Other FeaturesSingle Row | Standard D.
Overall Height3 3/4 in
Overall Length3 3/4 in
Overall Width1 7/16 in
Part NumberSF-16
Pilot ConfigurationNo Pilot
price$ 83.43 / each
RelubricatableYes
Seal TypeStandard Felt Seal
SealsFelt Labyrinth
Shaft Diameter (in)1
Shaft Locking TypeSet Screws
SKUZO-G6218371
SubCategoryPower Transmission
titleSF-16
TypeFour Bolt Flange
UNSPSC31171501
UPC Code662461003428
Weight / kgm0.95
Weight / LBS2.1

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

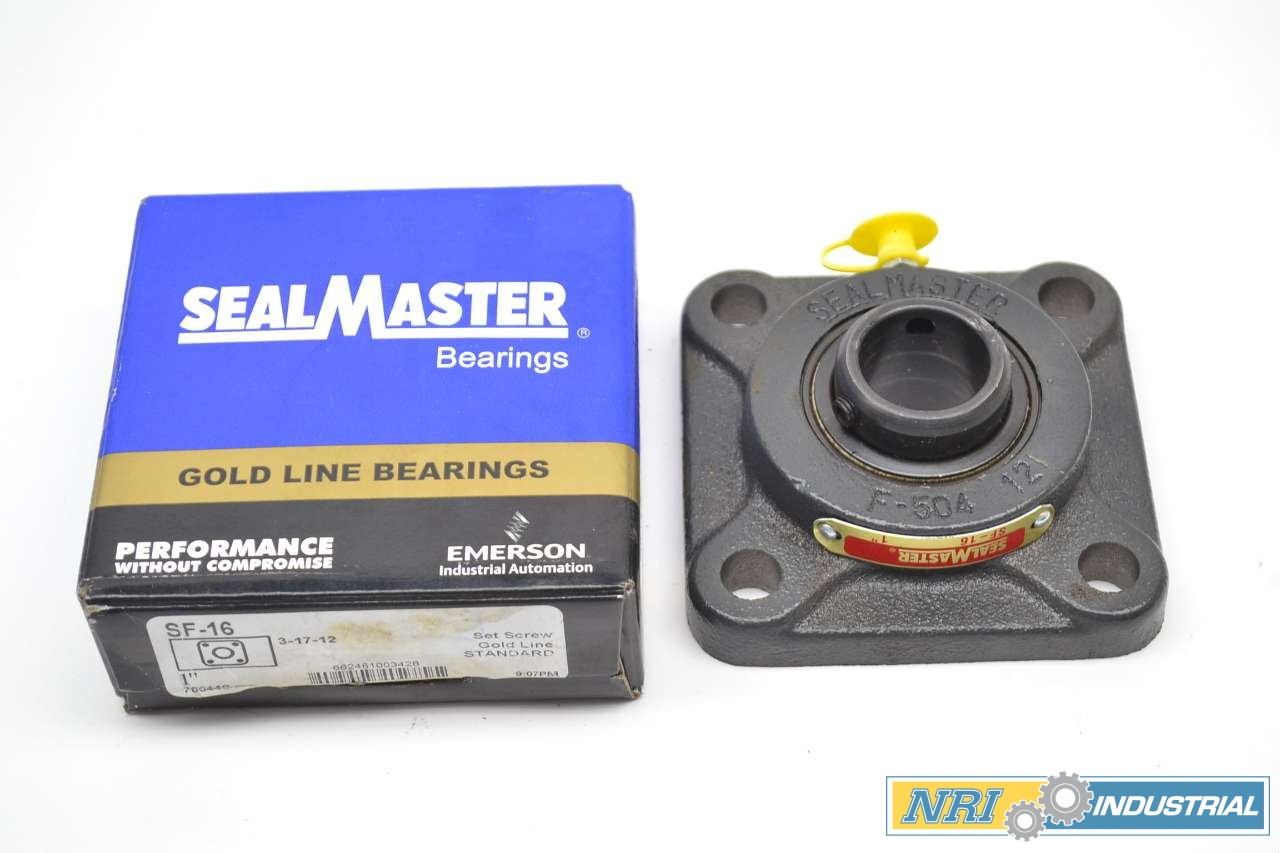

thumbzoomNRI IndustrialB44662345.391In StockSEALMASTER45.39 @ 1
thumbzoomLily BearingSF-1670.921In StockSEALMASTER2.0970.92 @ 1
thumbzoomRadwellSF-1686.513SEALMASTER1.9386.5 @ 1
thumbzoommotorsandcontrol.comSF-1694.971In StockSealmaster2.094.97 @ 1
us.rs-online.com72115499101.941In StockSealmaster101.94 @ 1
AmazonTPB00DBOL29A112.311In Stock5SEALMASTER112.31 @ 1
thumbzoomPurvisSF-16116.981In StockSealmaster116.98 @ 1
thumbzoomZoroG6218371128.99129Sealmaster1.9128.99 @ 1
thumbzoomsimsupply.comZO-G6218371161.15120Sealmaster161.15 @ 1
