mpn:
brand:
manufacturer:
MPN:
Weight:
1.6
Weight:
1.6 LB
Preferred Price:
266.89
Price:
266.89
Min Simple Price:
150.79
Absolute Min Price:
214.12
Min Price:
214.12
Dimensions:
[6.0, 4.0, 2.0]
qty:
21
simpleSku:
MDk1MQ:::SRP-18
sku:
MDk1MQ::NE:SRP-18@y0
condition:
11
seller:
MRO Supply
amzMan:
sealmaster
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| base to bore centerline: | 1.7500 in |
| base width: | 1.5000 in |
| Bearing Housing Material Type, Housing Material | Pressed Steel |
| Bearing Insert Material | 52100 Chrome Steel |
| Bearing Insert Type | Ball |
| Bearing Lubrication | Sealmaster GoldPlex-HP or NLGI #2 Equivalent |
| bolt center-to-center length: | 3.1563 to 5.0938 in |
| Bolt Hole Center-to-Center, Dimension C | 4-1/8" |
| Bolt Size | 3/8" |
| bolt size: | .3750 in |
| Bore Dia. | 1-1/8" |
| bore diameter: | 1.1250 in |
| bore type: | Round |
| Country of Origin (subject to change) | Multiple |
| Dimension A, Mounting Surface to Shaft Center | 1-3/4" |
| Dimension B, Overall Length | 5-1/4" |
| Dimension D | 1-1/2" |
| Dimension E | 2-5/16" |
| Dimension G | 1/4" |
| Dimension H, Overall Height | 3-3/8" |
| Dimension J | 1-5/8" |
| Dimension M, Overall Width | 1-47/64" |
| Duty Series | Standard |
| duty type: | Normal Duty |
| Dynamic Load Capacity | 300 lb. |
| Estimated Weight | 1.60 |
| expansion type: | Non-Expansion Bearing (Fixed) |
| Finish | black oxide |
| finish/coating: | Uncoated |
| Gross Weight | 0 lbs |
| Housing Material, housing material: | Stamped Steel |
| Insert Material | Cast Steel/Black Oxide |

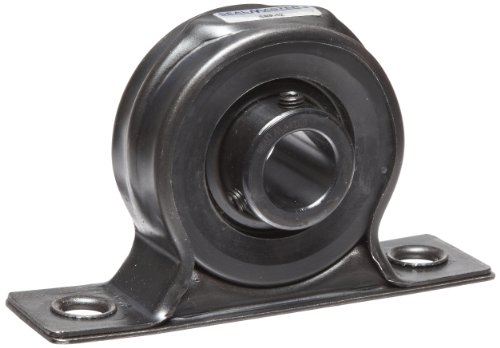

| Item | Pillow Block Bearing |
| Locking Device | Setscrew |
| locking device:, Locking Type, Shaft Locking Type | Set Screw |
| lubrication type: | Lubrication Fitting |
| Manufacturer | Sealmaster |
| manufacturer catalog number: | 700681 |
| mounting: | Two-Bolt Base |
| Number of Bolts | 2 |
| operating temperature range: | Max 250 |
| overall height: | 3.3750 in |
| overall length: | 5.2500 in |
| overall width: | 1.6250 in |
| Part Number | SRP-18 |
| replacement bearing:, Replacement Insert | SRC-18 |
| Seal Type | Standard Felt Seal |
| seal type: | Felt Seal |
| Series, series: | SRP |
| Shaft Diameter (in) | 1.125 |
| Static Load Capacity | 180 lb. |
| Temp. Range | -20 Degrees to 220 Degrees F |
| Type | Two Bolt Pillow Block |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | MRO Supply | 2259448 | 150.79 | 150.79 | 1 | In Stock | SealMaster | 150.79 @ Qty: 1+ | ||
 | Zoro | G0105887 | 152.0 | 152.0 | 1 | In Stock | 10 | Sealmaster | 152.0 @ Qty: 1+ | |
 | motorsandcontrol.com | SRP-18 | 161.56 | 161.56 | 1 | In Stock | Sealmaster | 1.6 | 161.56 @ Qty: 1+ | |
 | Galco | SRP-18-SMST | 161.56 | 161.56 | 1 | In Stock | Sealmaster | 161.56 @ Qty: 1+ | ||
| us.rs-online.com | 73759644 | 168.11 | 168.11 | 1 | In Stock | Sealmaster | 168.11 @ Qty: 1+ | |||
 | motionindustries.com | 00579871 | 182.32 | 182.32 | 1 | In Stock | Sealmaster | 182.32 @ Qty: 1+ |
