| Bearing Housing Material Type, Housing Material | Pressed Steel |
| Bearing Insert Material | 52100 Chrome Steel |
| Bearing Insert Type | Ball |
| Bearing Lubrication | Sealmaster GoldPlex-HP or NLGI #2 Equivalent |
| Bolt Hole Center-to-Center, Dimension C | 4-1/8" |
| Bolt Size | 3/8" |
| Bore Dia. | 1-1/8" |
| Country of Origin (subject to change) | Multiple |
| Dimension A, Mounting Surface to Shaft Center | 1-3/4" |
| Dimension B, Overall Length | 5-1/4" |
| Dimension D | 1-1/2" |
| Dimension E | 2-5/16" |
| Dimension G | 1/4" |
| Dimension H, Overall Height | 3-3/8" |
| Dimension J | 1-5/8" |
| Dimension M, Overall Width | 1-47/64" |
| Dynamic Load Capacity | 300 lb. |
| Finish | black oxide |

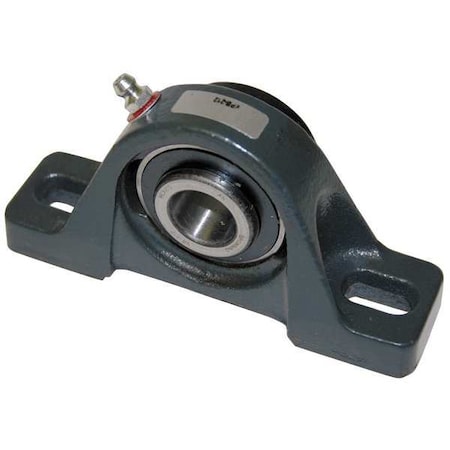

| Item | Pillow Block Bearing |
| Locking Type, Shaft Locking Type | Set Screw |
| Number of Bolts | 2 |
| Series | SRP |
| Static Load Capacity | 180 lb. |
| Temp. Range | -20 Degrees to 220 Degrees F |
