Description:

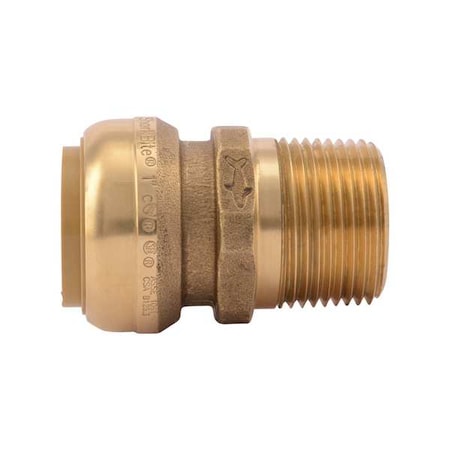

Male Adapter, Application Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1 in, Fitting Side A Tube Outer Diameter 1 in, Fitting Material Brass, Fitting Thread Size 1, Color Brass, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 15/32 in, Specific Fitting Shape Straight Adapter
Attributes
| Key ^ | Value |
|---|---|
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape, Specific Fitting Shape, Specific Pipe Fitting Shape | Adapter |
| Color | Brass |
| Fitting Connection Type | Push-Fit x MNPT |
| Fitting Pipe Size, Fitting Side A Tube Outer Diameter, Fitting Side B Pipe Size, For Tube Outside Diameter, Pipe Size - Pipe Fitting, Tube Size | 1 in |
| Fitting Thread Size | 1 |
| Gasket Material, Release Ring Material | EPDM |
| Includes Pre-Applied Thread Sealant | No |
| Item | Male Adapter |
| Max. Pressure | 200 psi |
| Pipe Fitting Connection Type | Push-To-Connect |
| Pipe Size (Fittings) | 1" |
| Special Features | Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue |
| Standards | ANSI/NSF-61, ASSE 1061 / NSF 81, CPUC Listed, IAPMO, IGC 188, IPC, UPC |
| Temp. Range | 0 Degrees to 200 Degrees F |
| Tube Fitting Material | DZR Brass |
