mpn:
brand:
manufacturer:
MPN:
Weight:
13.4989043023
Weight:
13.4989043023 LB
Preferred Price:
1511.56
Price:
1511.56
Min Simple Price:
853.99
Absolute Min Price:
1212.66
Min Price:
1212.66
Dimensions:
[6.0, 6.0, 6.0]
qty:
21
simpleSku:
TI1NDU:::3RA13448XB301BB4
sku:
TI1NDU::8O:3RA13448XB301BB4@y0
condition:
11
seller:
Zoro
amzMan:
siemens
HazMat:
False
DropShip:
True

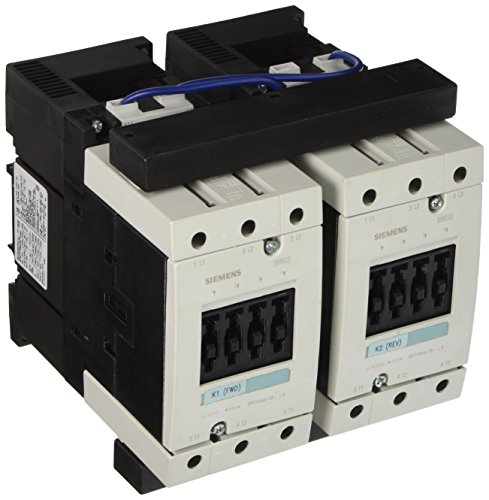

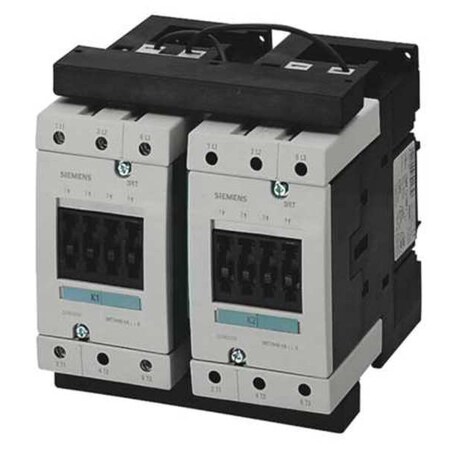

Attributes
| Key | Value |
|---|---|
| Action | Reversing |
| Aux. Contact Configuration | 2 NC |
| Auxiliary Contact Form | 2NC |
| Coil Volts | 24VDC |
| Contact Current Rating | 65 A |
| Control Voltage | 24 VDC |
| Country of Origin (subject to change) | Germany |
| Current Rating | 65 A |
| Depth | 0.118" (3mm), 5.87" |
| Dimensions | 169 x 150 x 152 mm |
| Enclosure NEMA Rating | No Enclosure |
| Frame / Series / Class / Code | S3 |
| Full Load Amps-Inductive | 65 |
| Full Load Amps-Resistive | 100 |
| Function | IEC Contactor |
| Height | 5.91" |
| Horsepower Rating | 75 HP |
| Horsepower, Max, 1 Phase, at 115 V | 5 |
| Horsepower, Max, 1 Phase, at 208 V | 10 |
| Horsepower, Max, 1 Phase, at 230 V | 15 |
| Horsepower, Max, 3 Phase, at 208 V | 20 |
| Horsepower, Max, 3 Phase, at 230 V | 25 |
| Horsepower, Max, 3 Phase, at 460 V | 50 |
| Horsepower, Max, 3 Phase, at 575 V | 60 |
| HP @ 1 Phase - 120V | 5 |
| HP @ 1 Phase - 230V | 15 |
| HP @ 1 Phase - 240V | 15 |
| HP @ 3 Phase - 208V | 20 |
| HP @ 3 Phase - 240V | 25 |
| HP @ 3 Phase - 480V | 50 |
| HP @ 3 Phase - 575V | 60 |
| Includes | Electro-Mechanical Interlock |
| Item | IEC Magnetic Contactor |
| Length | 6.653" (169mm) |
| Maximum Operating Temperature | 60 C |
| Minimum Operating Temperature | -25 C |
| Mounting Type | DIN Rail Mounted |
| Number of Poles | 3 |
| Power Rating | 30 kW |
| Primary Type | IEC Contactor |
| Relay Type | Electromechanical |
| Reversing | Yes |
| Series | 3RA Series |
| Size | S3 |
| Standards | UL, CSA, IEC, CAC ; CE Approved ; CSA Certified ; GOST Certified ; UL Recognized |
| Temperature Operating Range | -25 to 60 C |
| Terminal Type | Screw Terminal |
| Termination | Screw |
| Type | Reversing Contactor |
| UPC Code | 754554670867 |
| Voltage Rating | 400 VAC |
| Width | 5.91", 5.906" (150mm) |
