SIEMENS 3RT1075-6AP36

B07FBQ9PJX

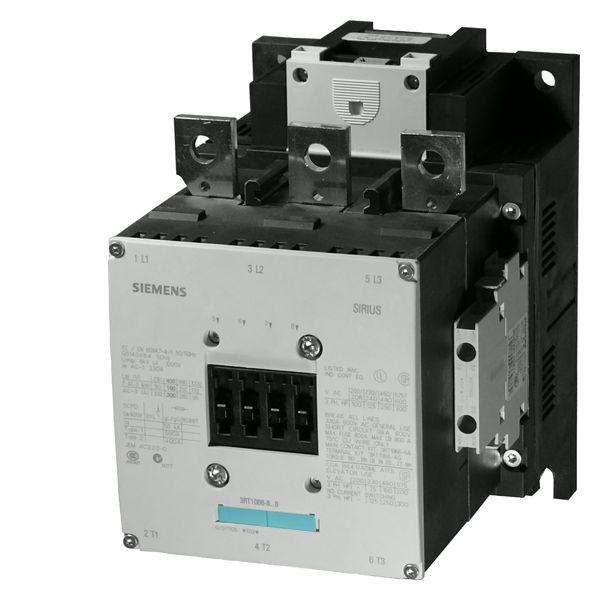

3RT1075-6AP36 | SIEMENS Sirius S12 CONTACTOR 200KW 00 230VAC 50HZ SCR

3RT1075-6AP36 | SIEMENS Sirius S12 CONTACTOR 200KW 00 230VAC 50HZ SCRzoom

Attributes

Key Value
(3P) Three PolePole
+60 ?CStart Temp. (Max)
-25 ?CStart Temp. (Min)
3RT1075-6AP36Stock Code
Base Product Number3RT1075
CategoryContactors, Relays
Coil Power920W
Coil Power Rating830 VA Pickup, 9.2 VA H.
Coil Resistance-
Coil Voltage220 VAC, 240 VDC, 220 ~.
Connection typeScrew
Connection:screw-type terminals
Contact Configuration3NO
Contact Form3PST-NO (3 Form A)
Contact Material-
Contact RatingA600/Q600
Contact Rating (Current)400 A
Contact Rating:A600 / Q600
Contact typeNon-Reversing
Country of OriginDE
CSA, EAC, CE, UL, CCCUL Listed
Dimensions214 mm H x 160 mm W x 2.
Enclosure TypeIP00
FeaturesAuxiliary Contacts
For additional options .Notes
Frequency Rating40/60
ManufacturerSiemens Industry, Inc.
MfrSiemens
Mounting typeScrew Fixing
Mounting TypeChassis Mount, DIN Rail
Mounting:Screw Fixing
Must Operate Voltage-
Must Release Voltage-
Number of Auxiliary Con.4
Number of Poles3
Operate Time100 ms
Operating Cycles10000000 Cycles Contact.
Operating Temperature-25 to 60, -25?C ~ 60?C
Operating Temperature:60.0 -25.0 C
PackageBox
Phase:3
Power factor0.9 Closing, 0.9 Holding
Product StatusActive
Release Time100 ms
SeriesSIRIUS
SiemensBrand
SizeSize S12
Size:S12
Sub Brand:SIRIUS
Switching Voltage1000VAC - Max
Terminal TypeScrew/Spring Loaded
Termination StyleScrew Terminal
TypeStandard
Type:3RT10 power contactor
UNSPSC39121529
UPC754554772684
Wattage231

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.com3RT1075-6AP361362.911In StockSIEMENS1362.91 @ 1
thumbzoomimc-direct.com3RT1075-6AP361456.121In StockSIEMENS1456.12 @ 1
thumbzoomcontrolparts.com3RT1075-6AP361824.41In StockSIEMENS1824.4 @ 1
thumbzoomstandardelectricsupply.com22868661876.291In StockSiemens1876.29 @ 1
thumbzoomkempstoncontrols.co.uk3RT1075-6AP362106.215923515Siemens2106.2159235 @ 1
RS Delivers203-25892155.6561In StockSiemens2155.656 @ 1
Digi-Key152327272165.271In StockSiemens2165.27 @ 1
Dale-Electric3RT1075-6AP362941.471In StockSiemens Industry, Inc.2941.47 @ 1
thumbzoomMRO Supply61414183240.01In Stock14Siemens3240.0 @ 1
thumbzoombulbspro.com3RT1075-6AP367737.681In StockSiemens7737.68 @ 1
