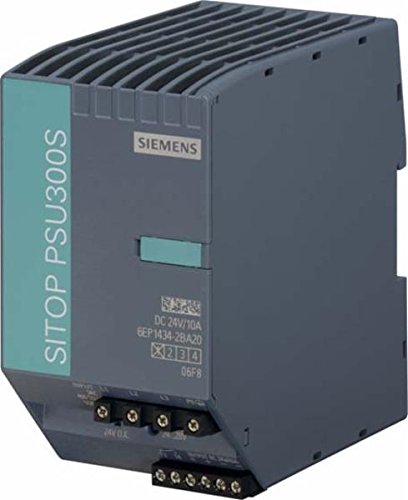

Siemens 6EP1434-2BA20 Power Supply 24VDC Output 10 Amps 460-480VAC Input 240 Watts

Siemens 6EP1434-2BA20 Power Supply 24VDC Output 10 Amps 460-480VAC Input 240 Wattszoom

Attributes

Key Value
AC Voltage - Input340 ~ 550 VAC
Ambient Temperature-25 to +70 deg C
Amperage Rating0.7/0.6 A Input, 10 A O.
Amperage Rating:10 A
Amps10
ApplicationPower supply SITOP smart
ApplicationsIndustrial, ITE (Commer.
Approval AgencyCB, cCSAus, CE, cULus
BrandSiemens
Catalog Number6EP14342BA20
CategoryPower Supplies - Extern.
ConfigurationEnclosed
Country of OriginAustria, AT
Current - Output (Max)10A
DC Voltage - Input (Max)-
DC Voltage - Input (Min)-
Depth120 mm
Dimensions120 mm L x 70 mm W x 12.
Efficiency91%
Efficiency:0.91
Environmental Conditionsto25 to 70
Environmental Condition.to25 to 70
Estimated Weight1.54
FeaturesAdjustable Output, IP20
Frequency Rating50/60 Hz, 47 to 63
Frequency Rating:47-63 Hz
Height125 mm, 125
Height:4.921 in
Input current0.6/0.7
Input TypeAC
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage (AC)460-480
Input Voltage Range340-550, 340-550 VAC
InsulationIP20
Insulation:IP20
Item TypePower supply SITOP PSU3.
Length120
Length:120.0 mm
Made in USANo
ManufacturerSiemens Industry, Inc.,.
MfrSiemens
Minimum Load Required-
MountingDIN Rail
Mounting typeDIN Rail
Mounting TypeDIN Rail Mount
Mounting:Snaps onto DIN rail EN .
Number of Outputs1
Operating Temperature-25?C ~ 70?C
Output (Volts)24
Output Current10 A
Output current10
Output Power240 W
Output voltage24, 24 VDC
Output Voltage24 VDC
PackageBox
Part Number6EP14342BA20
Phase3
Phase:3-phase AC
Phases3
Power (Watts)-, 240
Power Dissipation23
Power Rating240 W
Powering Capacity240
Primary TypeAC-DC
Product StatusActive
Receptacle Configuratio.screw-type terminals
Series6EP1, SITOP Smart Serie.
Short Circuit ProtectionConstant Current
Size / Dimension4.72" L x 2.76" W x 4.9.
Special FeaturesThe SITOP smart 3-phase.
Specifications50/60 Hz, 91% Efficienc.
StandardSafety extra-low output.
Standard Number60950-1; UL 508
Standard:Safety extra-low output.
Sub BrandPower supply
Sub Brand:Power supply
Temperature Rating (Deg.-25 to 70
TypeIndustrial, PSU300S, 1-.
Type:Power supply SITOP PSU3.
UNSPSC39121004
UPC804766249037
UPC Code804766249037
Voltage - Output 124V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 5-
Voltage - Output 6-
Voltage Rating24
Voltage Rating:24 V
Wattage240
Wattage:240 W
Width70 mm, 70
Width:70.0 mm
WxHxD70 x 125 x 120

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwell6EP14342BA20303.0312SIEMENS303.03 @ 1
RS Delivers196-3639304.681In StockSiemens304.68 @ 1
thumbzoommotorsandcontrol.com6EP1434-2BA20325.014Siemens1.54325.0 @ 1
thumbzoomstandardelectricsupply.com2319907328.51In StockSiemens328.5 @ 1
steinerelectric.com931785328.51In StockSiemens328.5 @ 1
Dale-Electric6EP14342BA20395.851In StockSiemens Industry, Inc.395.85 @ 1
us.rs-online.com70909766418.191In StockSiemens418.19 @ 1
Digi-Key15263630418.191In StockSiemens418.19 @ 1
thumbzoomFrench GerlemanSIE6EP14342BA20455.01In StockSiemens455.0 @ 1
thumbzoomcrescentelectric.com814519844.821In StockSiemens844.82 @ 1
kirbyrisk.com3284031932.281In StockSiemens932.28 @ 1
