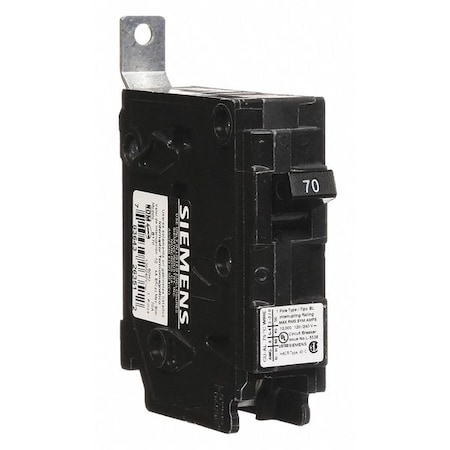

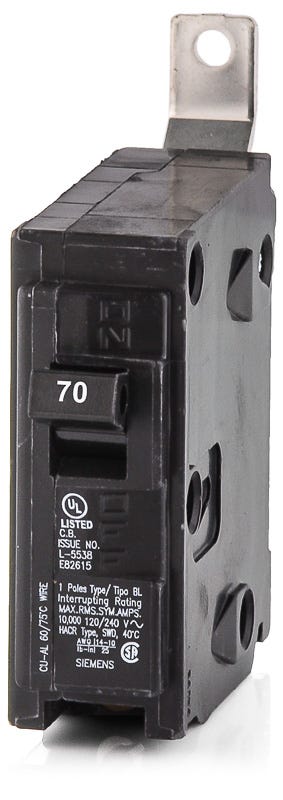

SIEMENS B170

B00CRKU9AW

ITE B170

ITE B170zoom

Attributes

Key Value
(1P) Single PolePole
1/2Width (in)
12Case Quantity
120/240VACVoltage (V)
2.5Length (in)
3Height (in)
70 AmpAmperage
70AAmp Rating
AC Voltage Rating120/240V AC
Alternate Mfr Part Numb.B170
Amps70 A
ApplicationElectrical Distribution
AWG 6-4 | 3 -2/0Wire Gauge
B170Stock Code
BOLT-ONBreaker Style
BrandSiemens
Catalog NumberB170
CategoryCircuit Breakers
Circuit Breaker ActuatorToggle
Circuit Breaker Mountin.Bolt On
Circuit Breaker TypeStandard
Contactor TypeMagnetic
Continuous current / ra.70 A
Country of OriginMX
CSA, UL ListedUL Listed
DC Voltage RatingNot Rated
Depth3 in
Depth [in]:3 in
Design of the overload .THERMAL-MAGNETIC
Design of the product:BL
DisplayB170 BREAKER 70A 1P 120.
Estimated Weight1.00
For additional options .Notes
For Use WithSiemens P1 Panelboards
Frame Size125A/BL
Gtin783643263512
Height4 in
Height [in]:3.75 in
ItemMiniature Circuit Break.
Length4 in
Length (Straight Wirewa.4.0 in
ManufacturerSiemens Industry, Inc.,.
Max. AIR Rating10kA at 120/240V AC
Max. Wire Size2 AWG (Al), 4 AWG (Cu)
Min. Wire Size8 AWG
MountingBolt On
Mounting TypeBolt-On
MpnB170
Number of Poles1
Number Of Poles:1
Part NumberB170
Phase1
Poles1
SeriesBL
SiemensBrand
Size of the circuit-bre.BL(125A)
Standard:ULLISTED/CSA/NOMCERTIFI.
StandardsUL Listed
Suitability for operati.ELECTRICALDISTRIBUTION
Supply voltage frequenc.TRUE
Terminal ConnectionLug
Type/Tipo BLFamily
UNSPSC39121601
UPC783643263512
Upc783643263512
Voltage120VAC
Voltage / between phase.120 V
Width1 in
Width [in]:1 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAllfusesB17016.69112Siemens16.69 @ 1
simplybreakers.comB17017.731In StockSiemens \/ ITE17.73 @ 1
thumbzoomsuperbreakers.comB17019.4219Siemens19.42 @ 1
AmazonSCB005XHCI1Y29.991In StockSiemens29.99 @ 1
Dale-ElectricB17059.321In StockSiemens Industry, Inc.59.32 @ 1
thumbzoombulbspro.comB17068.651In StockSiemens68.65 @ 1
thumbzoomindustrialzone.comB17089.123In StockSiemens0.3389.12 @ 3
thumbzoomZoroG2492506103.991In StockSiemens0.31103.99 @ 1
kirbyrisk.com1871083120.781In StockSiemens120.78 @ 1
thumbzoommotorsandcontrol.comB170122.871In StockSiemens1.0122.87 @ 1
us.rs-online.com72763234139.671In StockSiemens139.67 @ 1
thumbzoomcrescentelectric.com906371167.711In StockSiemens167.71 @ 1
