Description:

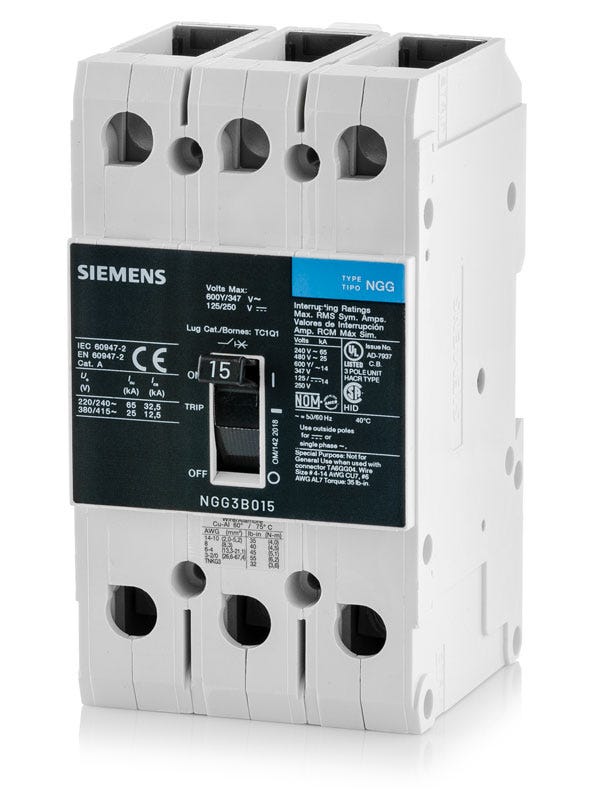

The New is a low-voltage G-frame general purpose circuit breaker with high performance thermal magnetic trip. This 3 Pole NGG circuit breaker is designed to be used as incoming main and branch breakers in distribution systems. It has an over center toggle mechanism that is trip-free and uses repulsion contact arm construction. It comes with line and load lugs included as standard. This circuit breaker 15A 600V is complete with Long-Time and Instantaneous trip functions and is suitable for reverse feed applications. The Siemens NGG3B015L can be independently mounted on DIN rail or held in place by mounting screws.
Attributes
| Key ^ | Value |
|---|---|
| Actuator Type | Toggle |
| Amperage | 15 |
| Brand | Siemens |
| Circuit Breaker Type | Molded Case |
| Frame Type | GG |
| Functions | LI - Long-Time and Instantaneous |
| Gtin, Upc | 783643413788 |
| Height (in) | 5.4 |
| Interrupting Rating | 25kA |
| Length (in) | 2.9 |
| Max Wire Size | 6 AWG(Al), 6 AWG(Cu) |
| Min Wire Size | 12 AWG(Al), 14 AWG(Cu) |
| Mounting Type | Din Rail |
| Number Of Wires, Phase, Poles, Width (in) | 3 |
| Protection | Thermal Magnetic |
| Series | NGG |
| Standards | UL 489 Listed, HACR, HID, SWD Rated |
| Temperature Rating | 40 deg C |
| Terminal Connection | Feed-Thru |
| Voltage | 600 VAC |
| Voltage Protection Rating | 480V |
