mpn:
brand:
manufacturer:
MPN:
Description:

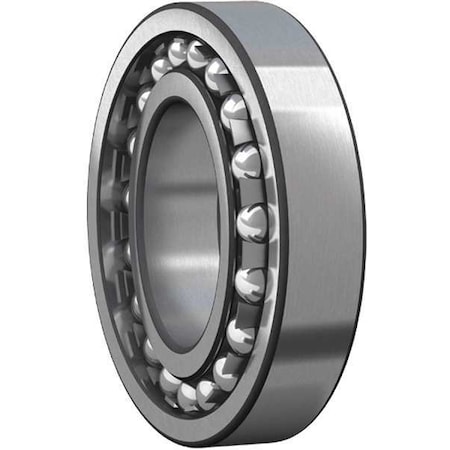

Self-Aligning Ball Bearing, Bearing Industry Number 2206, Bore Diameter 30 mm, Outside Diameter 62 mm, Outer Ring Width 20 mm, Ring Material Alloy Steel, Bore Type Cylindrical, Closure Open, Cage Material Thermoplastic, System of Measurement Metric, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade 100Cr6, Bore Diameter Tolerance +0/-0.010 mm, Dynamic Radial Load Capacity 23.8 kN, Fillet Radius 1 mm, Lubricant Material Alvania Grease, Maximum Axial Load 404 lbf
Weight:
0.572
Weight:
0.25 LB
Preferred Price:
76.83
Min Offer Price:
67.82
Price:
76.83
Min Simple Price:
41.988
Absolute Min Price:
59.62
Min Price:
59.62
Dimensions:
[3.0, 3.0, 1.0]
qty:
21
simpleSku:
zU0MzQ:::2206 ETN9
sku:
zU0MzQ::Q4:2206 ETN9@y0
condition:
11
seller:
RS Delivers
amzMan:
skf
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| ABEC Tolerance | 1 |
| Bearing Material | Steel |
| Bearing Type | Ball |
| Bore | 1.181 Inch | 30 Millimeter |
| Bore Dia. | 30 mm |
| Bore Diameter | 30 mm |
| Bore Diameter Tolerance | +0/-0.010 mm |
| Bore Tolerance | +0/-.010mm |
| Bore Type | Cylindrical |
| Brand | SKF |
| Cage Material | Polyamide, PA66 |
| Category - BDI | Self Aligning Ball Bearings |
| Closure Type | None |
| Color | Silver |
| Dynamic Load Capacity | 5,350 lb |
| EAN | 7316576620522 |
| Enclosure | Open |
| Fillet Radius | 1 mm |
| Harmonized Tariff Code | 8482.10.50.68 |
| Inch - Metric | Metric |
| Industry Number | 2206-ETN9 |
| Inner Diameter | 30 mm |
| Inner Race Width | 0.787 Inch | 20 Millimeter |
| Internal Clearance | C0-Medium, CN |
| International Shipping | No |
| Item | Self-Aligning Ball Bearing |
| Keyword String | Self Aligning |
| Long Description | 30MM Bore; Shaft Mount; 62MM Outside Diameter; 20MM Inner Race Width; 20MM Outer Race Width; Open; Polyamide Cage; Double Row of Balls; ABEC 1 | ISO P0; C0-Medium |
| Lubrication | Shell Alvania Grease |
| Manufacturer Item Number | 2206 ETN9 |
| Manufacturer Name | SKF |
| Max. Load Axial | 404 lb |
| Max. RPM | 15,000 RPM |
| Minimum Buy Quantity | N/A |
| Mounting Method | Shaft |
| Mpn | 2206 ETN9 |
| Noun | Bearing |
| Number of Rows | Double |
| Number of Rows of Balls | Double Row |
| Other Features | Allowable Misalignment 2.5 Deg | High Capacity Design |
| Outer Diameter | 62 mm |
| Outer Race Width | 0.787 Inch | 20 Millimeter |
| Outer Ring Width | 20 mm |
| Outside Dia. | 62 mm |
| Outside Dia. Tolerance | +0/-.013mm |
| Outside Diameter | 2.441 Inch | 62 Millimeter, 62 mm |
| Outside Diameter Tolerance | +0/-0.013 mm |
| Overall Width | 20 mm |
| Precision Class | ABEC 1 | ISO P0 |
| Product Group - BDI | B00152 |
| Rolling Element | Ball Bearing |
| Seal/Shield Type | Open |
| Single Row/Double Row | Double Row |
| SKU | ZO-G9418753 |
| Static Load Rating | 6.72 kN |
| SubCategory | Power Transmission |
| Temp. Range | -40 Degrees to 210 Degrees F |
| UNSPSC | 31171532 |
| UPC Code | 7316576620522 |
| Weight / Kilogram | 0.259 |
| Weight / LBS | 0.573 |
| Width | 20 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| RS Delivers | 209-1900 | 41.988 | 41.988 | 1 | 18 | SKF | 41.988 @ Qty: 1+ | |||
 | BDI Express | 1418506 | 85.076917 | 85.076917 | 1 | 4 | SKF | 0.5698 | 85.076917 @ Qty: 1+ | |
| us.rs-online.com | 73219287 | 108.31 | 108.31 | 1 | In Stock | SKF Bearings | 108.31 @ Qty: 1+ | |||
 | Zoro | G9418753 | 124.99 | 124.99 | 1 | 1 | Skf | 0.57 | 124.99 @ Qty: 1+ | |
| motionindustries.com | 00043281 | 144.38 | 144.38 | 1 | In Stock | SKF | 144.38 @ Qty: 1+ | |||
 | National Supply Network | 81196974 | 147.57 | 147.57 | 1 | In Stock | SKF | 147.57 @ Qty: 1+ | ||
 | simsupply.com | ZO-G9418753 | 148.02 | 148.02 | 1 | In Stock | Skf | 148.02 @ Qty: 1+ | ||
 | bscsource.com | 81196974 | 154.69 | 154.69 | 1 | In Stock | SKF | 154.69 @ Qty: 1+ |
