| ABEC Rating, ABEC Tolerance | 1 |
| Bearing Industry Number | 6208 |
| Bearing Material, Cage Material | Steel |
| Bearing Type, Closure, Seal/Shield Type | Open |
| Bore Dia., Bore Diameter | 40 mm |
| Bore Diameter Tolerance | +0/-0.01 mm |
| Bore Tolerance | +0/-.01mm |
| Country of Origin (subject to change) | Multiple |
| Dynamic Load Capacity | 7,300 lb |
| Dynamic Radial Load Capacity | 32.5 kN |
| Fillet Radius | 1 mm |
| Includes Retaining Ring, Retaining Ring Groove | Yes |
| Industry Number | 6208 NR JEM |

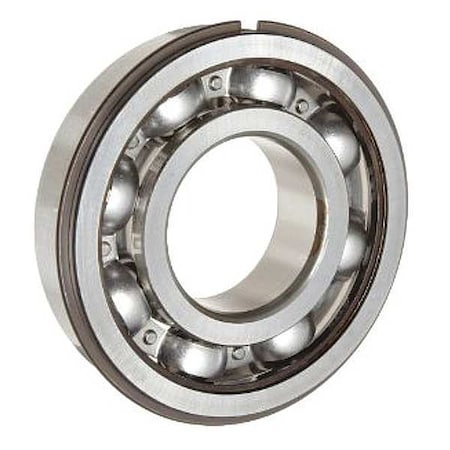

| Item | Radial Ball Bearing |
| Lubricant Material, Lubrication | MT47 Grease |
| Max. RPM, Maximum Speed | 11,000 RPM |
| Maximum Axial Load | 7,300 lbf |
| Maximum Temperature | 212 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Number of Rows | One |
| Outer Ring Type | Retaining Ring Groove |
| Outer Ring Width, Width | 18 mm |
| Outside Dia. Tolerance, Outside Diameter Tolerance | +0/-11 micron |
| Outside Dia., Outside Diameter | 80 mm |
| Retainer Type, Retaining Ring Material | Snap Ring |
| Retaining Ring Diameter | 86.6 mm |
| Retaining Ring Thickness | 1.7 mm |
| Ring Material | Alloy Steel |
| Ring Material Grade | 100Cr6 |
| Single Row/Double Row | Single Row |
| Static Load Capacity | 4,300 lb |
| Static Radial Load Capacity | 19 kN |
| System of Measurement | Metric |
| Temp. Range | -40 Degrees to 212 Degrees F |
