SKF 7310 BECBM

B007VGTYW6

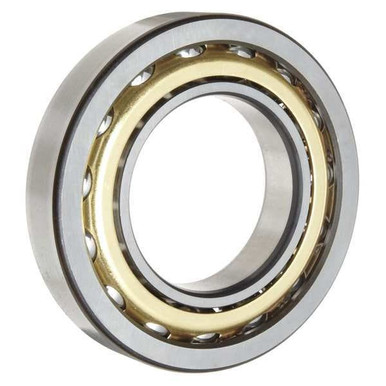

SKF 7310 BECBM Medium Series Angular Contact Bearing, ABEC 1 Precision, 40? Contact Angle, Open, Brass Cage, Normal Clearance, 50mm Bore, 110mm OD, 27mm Width, 11500lbf Static Load Capacity, 16700lbf Dynamic Load Capacity

SKF 7310 BECBM Medium Series Angular Contact Bearing, ABEC 1 Precision, 40? Contact Angle, Open, Brass Cage, Normal Clearance, 50mm Bore, 110mm OD, 27mm Width, 11500lbf Static Load Capacity, 16700lbf Dynamic Load Capacityzoom

Attributes

Key Value
ABEC Rating3
ABEC Tolerance3
Bearing TypeMatched Bearing
Bore1.969 Inch | 50 Millime.
Bore Dia.50 mm
Bore Diameter50 mm
Bore TypeCylindrical
BrandSKF
Cage MaterialBrass, Machined Brass
Category - BDIAngular Contact Ball Be.
Closure TypeNone
Contact Angle40 Degree
Contact Angle (Degree)40
Current Stock22
Dynamic Load Capacity (.16,900
Dynamic Load Capacity (.75,000
EAN7316577086396
EnclosureOpen
Flush GroundYes
Harmonized Tariff Code8482.10.50.28
Housing Fillet Radius1 mm
Inch - MetricMetric
Inner Diameter50 mm
Internal ClearanceCB
International ShippingNo
ItemAngular Contact Ball Be.
Keyword StringAngular Contact
Lead TimeExpected to ship in 1-2.
Long Description50MM Bore; 110MM Outsid.
LubricationMT47 Grease
Manufacturer Item Number7310 BECBM
Manufacturer NameSKF
Max. RPM8,000 RPM
Maximum Capacity / Fill.No
Minimum Buy QuantityN/A
Mounting ArrangementUniversal
Mpn7310 BECBM
NounBearing
Number of Bearings1 (Single)
Number of RowsSingle
Number of Rows of BallsSingle Row
O.D. (in)4 1/3
Other FeaturesNormal Axial Internal C.
Outer Diameter110 mm
Outside Dia.110 mm
Outside Diameter110 mm, 4.331 Inch | 11.
Overall Width27 mm
Precision ClassABEC 1 | ISO P0
Product Group - BDIB00308
Rolling ElementBall Bearing
Series7300 Series
Shaft Fillet Radius1 mm
SKUZO-G8373845
Snap RingNo
Standard Preload (lbs.)36
Standard Preload (N)160
Static Load Capacity (L.11,500
Static Load Capacity (N)51,000
Static Load Rating51 kN
SubCategoryPower Transmission
Temp. Range (F)-40 Degrees to 212 Deg.
TypeSingle Row Explorer
UNSPSC31171531
UPC Code7316577086396
Weight / Kilogram1.191
Width1.063 Inch | 27 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007VGTYW6120.721In Stock2SKF120.72 @ 1
thumbzoomBDI Express1420776166.67537271111SKF2.6202166.67537271 @ 1
thumbzoomMRO Supply313885179.971In StockSKF Bearing179.97 @ 1
factorysupplyoutlet.comWF19ZD183.781In Stock25SKF183.78 @ 1
thumbzoomZoroG8373845196.99124Skf2.6196.99 @ 1
us.rs-online.com73220882212.1714SKF Bearings212.17 @ 1
thumbzoomsimsupply.comZO-G8373845233.22122Skf233.22 @ 1
thumbzoomsustainablesupply.comC1573082263.041In StockSKF2.6263.04 @ 1
motionindustries.com00060458282.851In StockSKF282.85 @ 1
