SKF 7205 BEGAP

B002E7RQDG

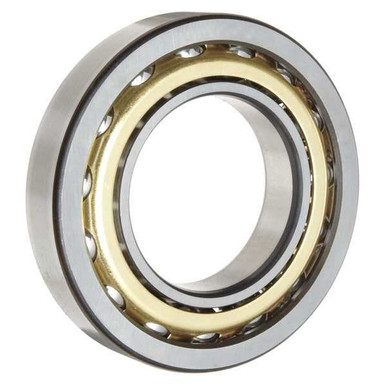

Angular Contact Bearing, 25mm, O.D. 52mm

Angular Contact Bearing, 25mm, O.D. 52mmzoom

Attributes

Key Value
ABEC Tolerance3
Bore0.984 Inch | 25 Millime.
Bore Dia.25 mm
Bore Diameter25 mm
Bore TypeCylindrical
BrandSKF
Cage MaterialPolymer, PA66
Category - BDIAngular Contact Ball Be.
Closure TypeNone
Contact Angle40 Degree
Contact Angle (Degree)40
Current Stock9
Dynamic Load Capacity (.3,510
Dynamic Load Capacity (.15,600
EAN7316576632679
EnclosureOpen
Flush GroundYes
Harmonized Tariff Code8482.10.50.28
Housing Fillet Radius0.6 mm
Inch - MetricMetric
Inner Diameter25 mm
Internal ClearanceC0-Medium
International ShippingNo
ItemAngular Contact Ball Be.
Keyword StringAngular Contact
Lead TimeExpected to ship in 1-2.
Long Description25MM Bore; 52MM Outside.
LubricationMT47 Grease
Manufacturer Item Number7205 BEGAP
Manufacturer NameSKF
Max. RPM17,000 RPM
Maximum Capacity / Fill.No
Minimum Buy QuantityN/A
Mounting ArrangementUniversal
Mpn7205 BEGAP
NounBearing
Number of Bearings1 (Single)
Number of RowsSingle
Number of Rows of BallsSingle Row
O.D. (in)2
Outer Diameter52 mm
Outside Dia.52 mm
Outside Diameter52 mm, 2.047 Inch | 52 .
Overall Width15 mm
Precision ClassABEC 3 | ISO P6
PreloadLight
Product Group - BDIB00308
Ring Material Grade100Cr6
Rolling ElementBall Bearing
Series7200 Series
Shaft Fillet Radius0.6 mm
SKUZO-G8339116
Snap RingNo
Standard Preload (lbs.)27
Standard Preload (N)120
Static Load Capacity (L.2,290
Static Load Capacity (N)10,200
Static Load Rating10 kN
SubCategoryPower Transmission
System of MeasurementMetric
Temp. Range (F)-40 Degrees to 212 Deg.
TypeSingle Row Explorer
UNSPSC31171531
UPC Code7316576632679
Weight / Kilogram0.133
Weight / LBS0.278
Width0.591 Inch | 15 Millime.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express141874871.6369179618SKF0.292671.63691796 @ 1
thumbzoomMRO Supply31366877.361In StockSKF Bearing77.36 @ 1
factorysupplyoutlet.comWY23MO78.981In Stock25SKF78.98 @ 1
thumbzoomZoroG833911682.95119Skf0.3182.95 @ 1
us.rs-online.com7322074891.181In StockSKF Bearings91.18 @ 1
thumbzoomsimsupply.comZO-G833911698.2719Skf98.27 @ 1
thumbzoomsustainablesupply.comC1572903110.951In StockSKF0.31110.95 @ 1
motionindustries.com00059247121.581In StockSKF121.58 @ 1
thumbzoomNational Supply Network45668886159.641In StockSKF159.64 @ 1
thumbzoombscsource.com7205BEGAP159.791In StockSKF159.79 @ 1
