Description:

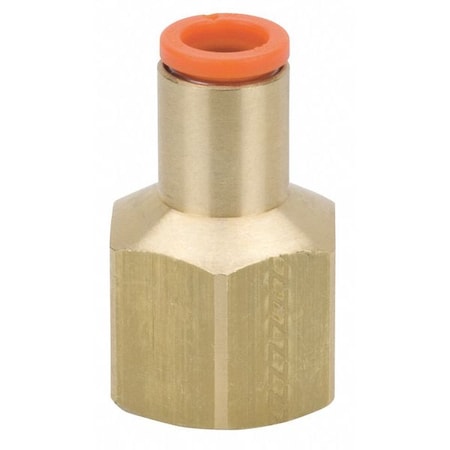

Female Adapter, Application Air, Non-Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type FBSPT, Fitting Side B Pipe Size 3/8 in, Fitting Side A Tube Outer Diameter 6 mm, Fitting Material Brass, Color Brass, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 29 29/32 mm, Specific Fitting Shape Straight Adapter, Release Type Button, Standards JIS B0203, RoHS
Attributes
| Key | Value |
|---|---|
| Basic Material | Brass |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Brass |
| Color | Brass |
| Fitting Pipe Size | 3/8 in |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Pipe Size | 3/8 in |
| For Tube Outside Diameter | 6 mm |
| Hex Size | 19 mm |
| Max. Pressure | 145 psi |
| Overall Length | 29 29/32 mm |
| Pipe Fitting Connection Type | Tube x Female BSPT |
| Pipe Size | 3/8 in |
| Pipe Size (Fittings) | 3/8" |
| Pipe Size - Pipe Fitting | 3/8 in |
| Quick Connect Air Coupling Material | Brass |
| Quick Connect Air Coupling Max. Pressure | 1MPa |
| Quick Connect Air Coupling Pipe Size | 3/8" |
| Quick Connect Air Coupling Product Grouping | Quick Coupler Body |
| Specific Pipe Fitting Shape | Adapter |
| Standards | RoHs |
| Temp. Range | 23 Degrees to 140 Degrees F |
| Tube Size | 6mm |
