Description:

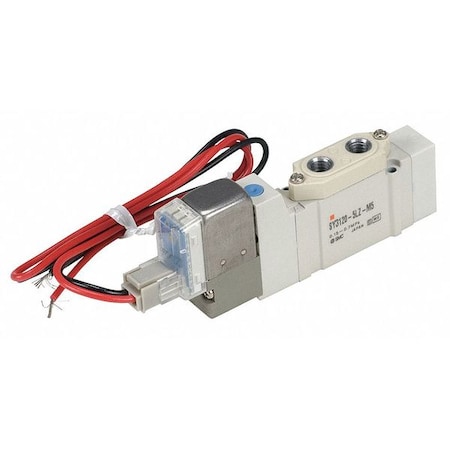

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size M5 x 0.8, Max. CFM - Valves 0.29 cfm, Operational Pressure Range 22 to 100 psi, Body Style Manifold, Pilot Port Size M5, Pilot Pressure 22, Coefficient of Volume 0.18, Plug Connector with Lead Wire Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.4 W, Ambient Temp. Range 14 Degrees to 122 Degrees F, Overall Height 1 in
Attributes
| Key | Value |
|---|---|
| Actuator/Return | Solenoid/Spring |
| Air Valve Type | 5-Way, 2-Position |
| Ambient Temp. Range | 14 Degrees to 122 Degrees F |
| Body Style | Manifold |
| CFM | 0.29 |
| Coefficient of Volume | 0.18 |
| Electrical Connections | Plug Connector with Lead Wire |
| Item | Solenoid Air Control Valve |
| Max. CFM - Valves | 0.29 |
| Operational Pressure Range | 22 to 100 psi |
| Overall Height | 1 in |
| Overall Length | 3 1/2 in |
| Overall Width | 2 in |
| Package Quantity | 1 |
| Pilot Port Size | M5 |
| Pilot Pressure | 22 |
| Pipe Size | M5 x 0.8 |
| Power Consumption | 0.4 W |
| Pressure Range | 22 to 100 psi |
| Shifting Technology | Solenoid |
| Standards | CE |
| Valve Actuator / Return | Solenoid / Spring |
| Valve Ways and Positions | 5-Way/2-Position |
| Voltage | 24V DC |
