SMC ZQ1071U-K15L-EAG-00

B00BRN1YTU

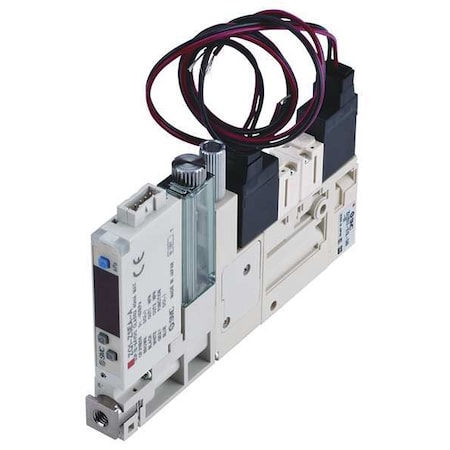

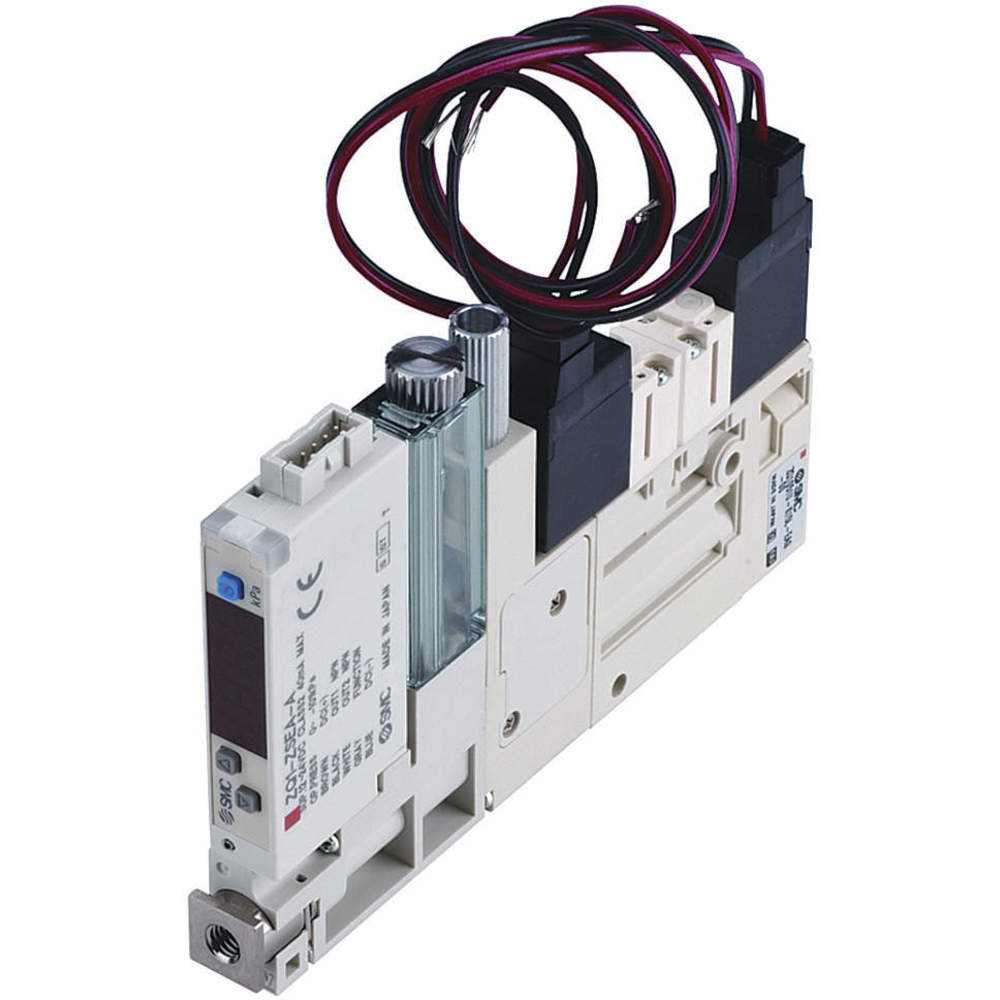

SMC - ZQ1071U-K15L-EAG-00 - Vacuum Ejector, Single Unit with M5 Pressure Port Size and 10.0 lpm Vacuum Flow Rate

SMC - ZQ1071U-K15L-EAG-00 - Vacuum Ejector, Single Unit with M5 Pressure Port Size and 10.0 lpm Vacuum Flow Ratezoom

Attributes

Key Value
Ejector TypeSingle Stage Venturi
Exhaust TypeMuffler
Height74.9 mm
IncludesMuffler, Needle Flow Co.
ItemVacuum Ejector
Length107 mm
Maximum Operating Tempe.60 Degrees C
Maximum Supply Pressure72 psi
Orifice Dia.0.7 mm
Overall Length107 mm
Overall Width10 mm
Pressure Port SizeM5
Supply Pressure Range43 to 72 PSI
Switch Type2 NPN Outputs
Temp. Range5 Degrees to 60 Degree.
Vacuum Flow Rate10.0 lpm
Vacuum Port SizeM5
Vacuum Pressure @ 40 PSI-60 KPA
Vacuum Pressure @ 75 PSI-80 KPA
Vacuum Pressure Range0 to -80 KPA
Valve Supply Voltage24V DC
Valve Type2 NC Supply and Release
Weight109 g
Width10 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
smcpneumatics.comZQ1071U-K15L-EAG-00330.751In StockSMC330.75 @ 1
ipneumatics.comZQ1071U-K15L-EAG-00330.751In StockSMC330.75 @ 1
thumbzoomZoroG4870092350.991In StockSmc0.45350.99 @ 1
thumbzoomsustainablesupply.comC1675937353.741In StockSMC0.45353.74 @ 1
thumbzoomRaptor SuppliesAC4TBT490.8071611In StockSMC VALVES490.807161 @ 1
