Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 7.5A & 13A |
| Applications | Aviation, Marine, Military |
| Backshell Material, Plating, Cable Opening, Color, Contact Finish Thickness - Mating, Material Flammability Rating, Mounting Feature, Shell Size, MIL, Voltage Rating | - |
| Base Product Number | BACC63 |
| Category | Connectors, Interconnects |
| Connector Style | Plug |
| Connector Type | Plug, Male Pins, Circular |
| Contact Finish - Mating | Gold |
| Contact Material | Copper alloy |
| Contact Mating Life | 500 |
| Contact Plating | Gold over nickel |
| Contact Size | 48#20, 8#16 |
| Contact Style | Pin |
| Contacts Supplied, RoHS | Yes |
| Contacts, # of, Number of Positions | 56 |
| Crimp Wire Gauge | 24, 22, 20, 18, 16 |
| Current Rating (Amps) | 7.5A, 13A |

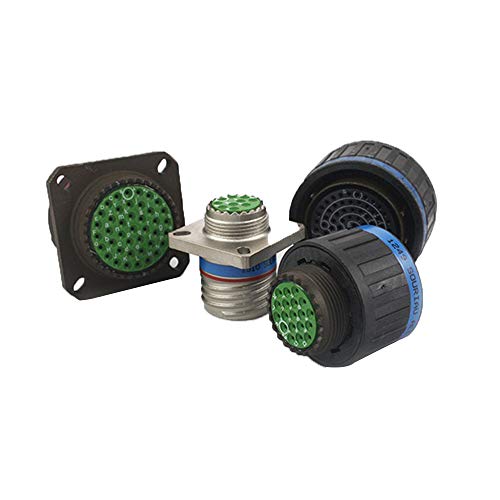

| Description | CONN PLUG MALE 56POS GOLD CRIMP |
| Detailed Description | 56 Position Circular Connector Plug, Male Pins Crimp |
| Digi-Key Part Number | SBACC63CT25-4PN-ND |
| Export Class | EAR / EAR99 |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Grommet & Seals Material | Silicone |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Arrangement, Shell Size - Insert | 25-4 |
| Insert Material | Hard Dielectric, Thermoplastic |
| Insert Rotation/Keying | N |
| Manufacturer Product Number | BACC63CT25-4PN |
| Manufacturer, Mfr | Souriau-Sunbank by Eaton |
| Mounting Type | Free Hanging (In-Line), Cable |
| Operating Temperature | -65?C ~ 200?C |
| Operating Temperature ?F (?C) | -85 to +347 (-65 to +175) |
| Orientation | N (Normal) |
| Package | Bulk |
| Primary Material, Shell Material | Composite |
| Product Status | Active |
| Sealing | Meets IP67 |
| Series | BACC63, 8D |
| Shell Color | Black |
| Shell Finish | Nickel |
| Shell Plating | No Plating |
| Shielding | Shielded, No |
| Specification | BACC |
| Termination, Termination Method | Crimp |
| Weight (g) | 60.97500 |
| Weight (lbs) | 0.13450 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Digi-Key | 4572113 | 165.96 | 165.96 | 1 | In Stock | Souriau-Sunbank by Eaton | 165.96 @ Qty: 1+ | ||
| PEI-Genesis | BACC63CT25-4PN | 193.36 | 193.36 | 1 | 150 | Souriau | 0.1345 | 193.36 @ Qty: 1+ |
