Description:

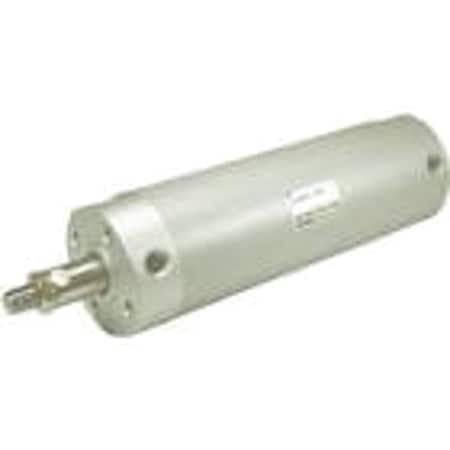

Air Cylinder, Air Cylinder, Double Acting, Air Cylinder Bore Dia. 20 mm, 8 in Stroke, Round Body, Basic Air Cylinder Mount, Aluminum Body Material, 1/8 in NPT Port Size, 14 Degrees to 140 Degrees F Temp. Range, 11.8 in Overall Length, Magnetic Piston Material, 145 psi Max. Pressure, Hard Coat Anodized Finish, Aluminum End Cap Material, Chrome Plated Carbon Steel Piston Rod Material, Magnetic Piston Yes, Tie Rod Material N, Tube Material Aluminum, 0.315 in Rod Dia., 1/4 In.-28 UNF Rod Thread Size
Attributes
| Key ^ | Value |
|---|---|
| Air Cylinder Bore Dia., Bore Dia. | 20 mm |
| Air Cylinder Type | Round Body |
| Body Material, Tube Material | Aluminum |
| Cushion Type | Air Cushion |
| Cylinder Action, Single Acting/Double Acting | Double Acting |
| Cylinder Type | Round |
| Dimension A | 11 4/5 in |
| Dimension B | 0.94 in |
| Dimension C | 1 in |
| Item | Air Cylinder |
| Magnetic Piston | Yes |
| Max. Pressure | 145 psi |
| Mount | Basic |
| Overall Length | 11.8 in |
| Piston Rod Material | Chrome Plated Carbon Steel |
| Port Size | 1/8 in NPT |
| Rod Dia. | 0.315 in |
| Rod Thread Length | 0.5 in |
| Rod Thread Size | 1/4"-28 UNF |
| Stroke | 8 in |
| Tie Rod Material | N |
