| [Uc] Control Circuit Voltage | 208 V AC 60 Hz |
| Ambient Air Temperature For Operation | -22-122 ?F |
| Awg Gauge | AWG 10 copper |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Class | 8501 |
| China Rohs Regulation | X |
| Connections - Terminals | screw clamp terminal |
| Contacts Type And Composition | 1 NO |
| Depth | 2.25 in |
| Device Application | suited for controlling small single phase motors and other light loads |
| Device Short Name | type C |
| Environmental Disclosure | ENVPEP1705008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 2.43 in |
| Hold-In Power Consumption In Va | 10-10 VA |
| Line Rated Current | 30 A |
| Maximum Switching Voltage | 600 V AC |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free | Yes |
| Mounting Support | panel mounting |
| Phase | 1 phase |
| Product Certifications | UL listed file E78351 CCN NLDX || CSA || CE |

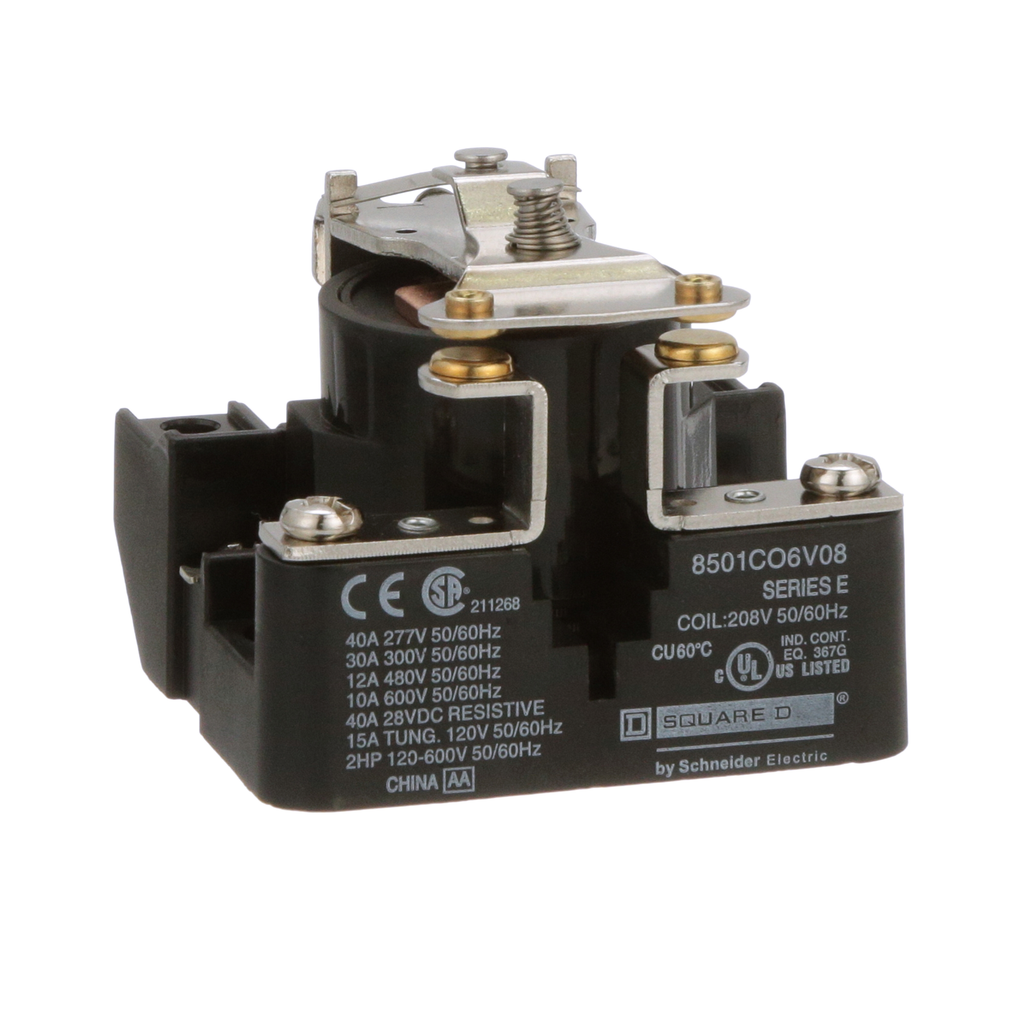

| Product Or Component Type | power relay |
| Range Of Product | Power Relay 8501C |
| Rated Power In Hp | 2 hp |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Sustainable Offer Status | Green Premium product |
| Switch Function | SPST |
| Tightening Torque | 11-15 lbf.in |
| Warranty | 18 months |
| Width | 2.5 in |
