Description:

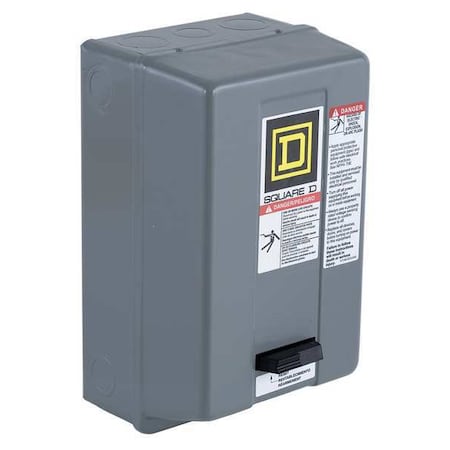

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting 9 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 3 A, Trip Class 10/20, Number of Poles 3, Number of Auxillary Contacts 0, Phase Three, Operator None, Operator Function Not Applicable, Auxiliary Contact Form Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC
Attributes
| Key ^ | Value |
|---|---|
| Action | Nonreversing |
| Amps AC | 9 |
| Auxiliary Contact Form | Not Applicable |
| Coil Volts | 120V AC |
| Depth, Overall Depth | 5.56 in |
| Enclosure NEMA Rating | 1 |
| Features, Includes | Class 10/20 selectable solid state overload relay |
| Height, Overall Height | 10 in |
| HP @ 3 Phase - 208V, HP @ 3 Phase - 240V | 1 1/2 hp |
| HP @ 3 Phase - 480V, HP @ 3 Phase - 575V | 2 hp |
| Hz | 50/60 |
| Item | NEMA Magnetic Motor Starter |
| NEMA Size | 00 |
| Number of Poles | 3 |
| Overall Width, Width | 6 in |
| Overload Relay Amp Setting | 3 to 9A |
| Standards | CSA, UL Listed |
| Starter Type | NEMA Style |
