Square D 8702SEO2V02S

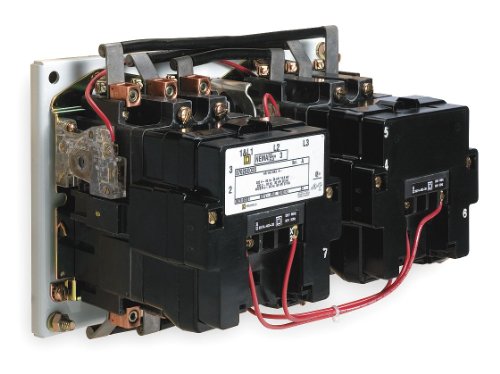

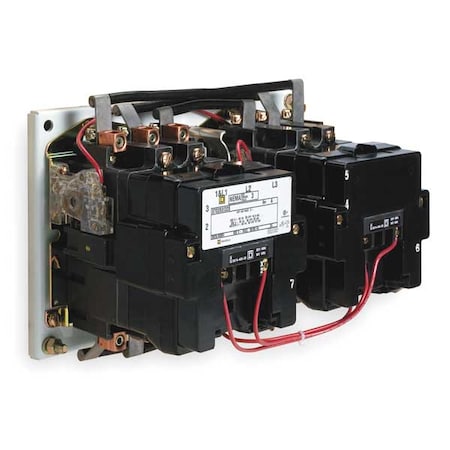

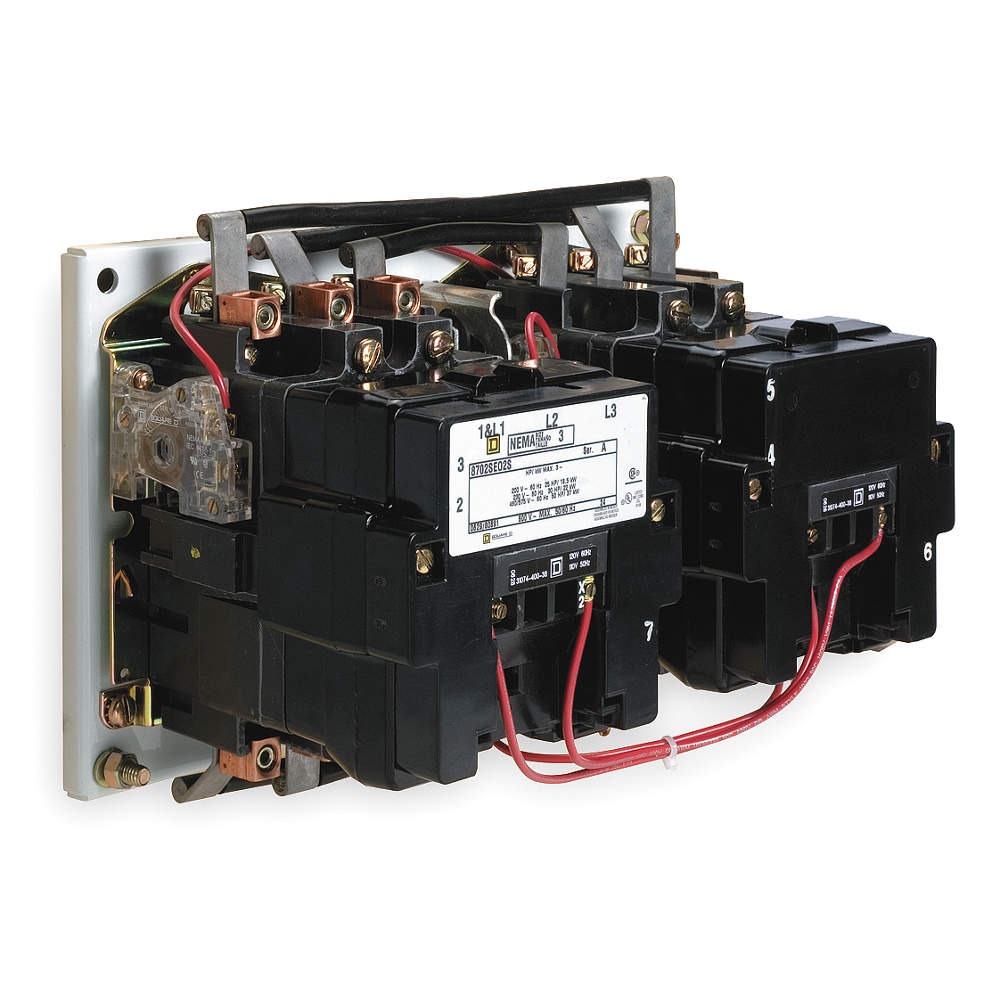

Square D - 8702SEO2V02S - Schneider Electric/Square D 8702SEO2V02S Type S Contactor; 3 Pole, 120 Volt AC At 60 Hz, 110 Volt AC At 50 Hz, 90 Amp

Square D - 8702SEO2V02S - Schneider Electric/Square D 8702SEO2V02S Type S Contactor; 3 Pole, 120 Volt AC At 60 Hz, 110 Volt AC At 50 Hz, 90 Ampzoom

Attributes

Key Value
3-Phase HP Rating (Max.)50 hp
[Uc] Control Circuit Vo.110 V AC 50 Hz || 120 V.
[Ue] Rated Operational .600 V AC
ActionReversing
Amperage Rating90A
ApplicationReversing
Auxiliary Contact FormAuxiliary Contacts Not .
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8702SEO2V02S
China Rohs RegulationProduct out of China Ro.
Coil Power Rating25 hp at 200 VAC/30 hp .
Coil Voltage110 V AC 50 Hz;120 V AC.
Coil Volts120V AC
Condition Of Usehorizontal
Connectionscrew clamp terminals
Connection type3
Contact Configuration3-POLE
Contact Rating90A, 90, 90 A
Contact typeReversing
Contactor ApplicationReversing
Control Circuitseparate control circuit
Control Typeno control units
Country of OriginMexico, 00 - Unknown
Depth7 in, 177.80 mm
Dimensions12.72 in W x 7.01 in D .
ECCNEAR99
Electrical Connectionscrew clamp terminals
Enclosure NEMA RatingNo Enclosure
Enclosure TypeOpen
Eu Rohs DirectiveNot compliant
Frame / Series / Class .Class 8702
Frequency Rating50/60, 50/60 Hz
Full Load Amps90 A
GTIN00785901808916
Height7.97 in, 202.44 mm
HP @ 3 Phase - 208V25 hp
HP @ 3 Phase - 240V30 hp
HP @ 3 Phase - 480V50 hp
HP @ 3 Phase - 575V50 hp
Hz50/60
Indicatorno indicator
ItemNEMA Magnetic Contactor.
Item TypeContactor;No control un.
Line Rated Current90 A
Local Signallingno indicator
Made in USANo
ManufacturerSchneider Electric
Mounting typeSurface
NEMA Contactor Size3
Nema Degree Of Protecti.not rated (open device)
NEMA Size3
Nema Size3
Number of Poles3
Operating Cycles5, 5 cpm
Operating Temperature0 to 40, 0 to 40 deg C
Overall Depth7 in
Overall Height7.97 in
Overall Width12.72 in
Phase3, 3 phase
Poles Description3P
Product CertificationsUL Listed || CSA
Product Or Component Ty.contactor
Provided Equipmentfuse not supplied
Range Of Producttype S
Rated Power In Hp25 HP 200 V AC || 30 HP.
Rating90A
ReversingYes
Series8702
SizeSZ 3, 7.01
Special Featuresseparate control circuit
StandardUL LISTED - CSA CERTIFI.
StandardsCSA, UL Listed, CSA, UL
Sub Brandtype S
Terminal TypeScrew Clamp, Screw/Clamp
TypeReversing Type S, Type .
UNSPSC39121529
UPC785901808916
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage18.5 kW at 200 V/22 kW .
Width323.09 mm, 12.72 in
Wiring Mode3 wires

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG64854373312.991In StockSquare D34.03312.99 @ 1
thumbzoomstandardelectricsupply.com1208243361.081In StockSquare D (Schneider Electric)3361.08 @ 1
thumbzoomgordonelectricsupply.com8702SEO2V02S3500.01In Stock10SQUARE D3500.0 @ 1
thumbzoomNewark16B74603676.641In StockSQUARE D BY SCHNEIDER ELECTRIC3676.64 @ 1
thumbzoommayerelectric.comSQD8702SEO2V02S3816.121In StockSQUARE D3816.12 @ 1
Graybar882460403838.3521In StockSquare D (Schneider Electric)3838.352 @ 1
thumbzoomcrescentelectric.com1997094115.611In StockSquare D4115.61 @ 1
thumbzoomsustainablesupply.comC11772014226.191In StockSquare D34.04226.19 @ 1
grainger.caSQD8702SEO2V02S5113.237947461In StockSQUARE D34.05113.23794746 @ 1
thumbzoomRaptor SuppliesAF9FEV7065.450991In StockSQUARE D7065.45099 @ 1
