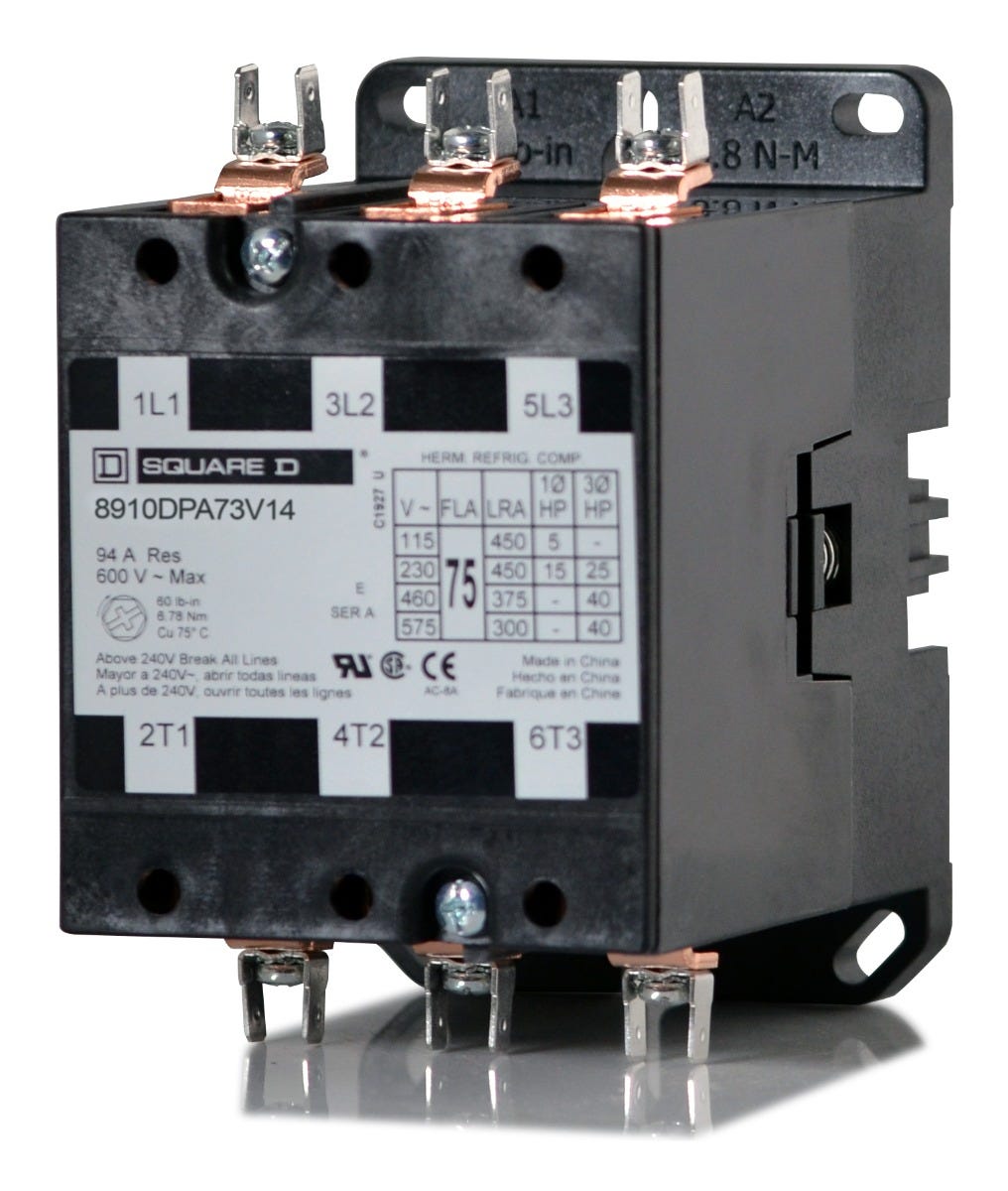

SQUARE D 8910DPA73V14 H2645 Dfinit Prpose Contactr 24VAC 75A 3P Open

SQUARE D 8910DPA73V14 H2645 Dfinit Prpose Contactr 24VAC 75A 3P Openzoom

Attributes

Key Value
ActionNon-Reversing
Amperage75
ApplicationIDEAL FOR HEATING, AIR .
ApprovalUl, Csa, Ce
ApprovalsCSA, UL
BrandSquare D, Square D by S.
Catalog Number8910DPA73V14
Coil TypeMagnetic
Coil Voltage24 VAC, 24 V AC 50/60 Hz
Coil Volts24VAC at 50/60Hz, 24V AC
ConditionNew
ConnectionBox lugs;quick connect .
Contact Configuration3 NO
Contact Current Rating75 A
Contact Form3PST-NO
Contact Rating75 A
Control Voltage24 V
Country of OriginChina
Country of Origin (subj.China
Current Rating75 A
Depth0.157 in, 4.37 in
Dimensions60.2 x 76 x 82.5 mm
DIN MountingYes
Enclosure NEMA RatingNo Enclosure
Enclosure TypeOpen
Estimated Lead Time (in.11
Family SeriesSquare D Contactors
For Use WithDP and DPA Series
Frame Type8910
Full Load Amps-Inductive75 A
Full Load Amps-Resistive94 A
FunctionContactor
Gross Weight3.685 lbs
GTIN785901118350
Gtin785901118350
Height5.2 in
Horsepower Rating5 hp
Horsepower, Max, 1 Phas.5 @ 115 VAC, 10 @ 230 V.
Horsepower, Max, 3 Phas.25 @ 230VAC, 40 @ 460VAC
HP @ 1 Phase - 120V5 hp
HP @ 1 Phase - 230V15
HP @ 1 Phase - 240V15 hp
HP @ 3 Phase - 230V25
HP @ 3 Phase - 240V25 hp
HP @ 3 Phase - 480V40 hp
HP @ 3 Phase - 575V40 hp
Hz50/60
IncludesQuick Connect Terminal
Inductive Current Rating75 A
ItemDefinite Purpose Magnet.
Item Number8910DPA73V14
Item TypeDefinite Purpose Contac.
Length2.37 in
Locked Rotor 240/277V450 A
Locked Rotor 480V375 A
Locked Rotor 600V300 A
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155719
Max HP 120V 1PH5 hp
Max HP 230/240V 1PH15 hp
Max HP 230/240V 3PH25 hp
Max HP 460/480V 3PH40 hp
Max HP 575/600V 3PH40 hp
Maximum Operating Tempe.65 C
Minimum Operating Tempe.0 C
MountingPanel Mount
Mounting StyleDIN Rail
Mounting TypePanel Mount, Panel
Mpn8910DPA73V14
Net Weight3.36 lbs
Nominal Coil Voltage24 VAC
Number of Poles3
Phase3
Poles3, 3 NO
Product TypeDefinite Purpose Magnet.
Promotion RestrictionNot eligible for promot.
Relay TypeElectromechanical
ReversingNo
Series8910, 8910DP Series, St.
Size3P
Special Features5-5 HP 115 V AC, 1 PHAS.
StandardUL RECOGNIZED-CSA
StandardsCE, CSA, UL, RoHS, UL R.
Sub BrandDPA
Temperature Operating R.0 to 65 C
Terminal ConnectionBox Lug
Terminal TypeQuick Connect
TerminationBox Lug, Quick Connect,.
TypeContactor
UPC785901118350
UPC Code785901118350
Voltage600VAC
Voltage Rating600 V
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width0 in, 3.39 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC2682087149.081In StockSquare D3.9149.08 @ 1
thumbzoomZoroG2502735237.941In StockSquare D3.9237.94 @ 1
thumbzoomsuperbreakers.com8910DPA73V14261.01In StockSquare D261.0 @ 1
thumbzoomindustrialrefrigerationparts.com8910DPA73V14300.091In StockSquare D2.0300.09 @ 1
thumbzoomNational Supply Network69524247301.151In StockSquare D301.15 @ 1
thumbzoommostelectric.com8910DPA73V14314.821In StockSQUARE D/TELEMECANIQUE314.82 @ 1
thumbzoomGalco8910DPA73V14-SQD324.681In StockSquare D3.685324.68 @ 1
thumbzoomAllfuses8910DPA73V14331.741In StockSquare D331.74 @ 1
thumbzoommidwestapplianceparts.com8910DPA73V14-SQ-P337.091In StockSquared337.09 @ 1
us.rs-online.com70060234365.131In StockSquare D365.13 @ 1
thumbzoomcrescentelectric.com9049366.671In StockSquare D by Schneider Electric366.67 @ 1
thumbzoomptacsolutions.com8910DPA73V14388.161In StockSchneider Electric (Square D)388.16 @ 1
steinerelectric.com96638391.571In StockSquare D?391.57 @ 1
thumbzoomgsistore.com8910DPA73V1411800.019999Schneider Electric (Square D)11800.0 @ 1
