Description:

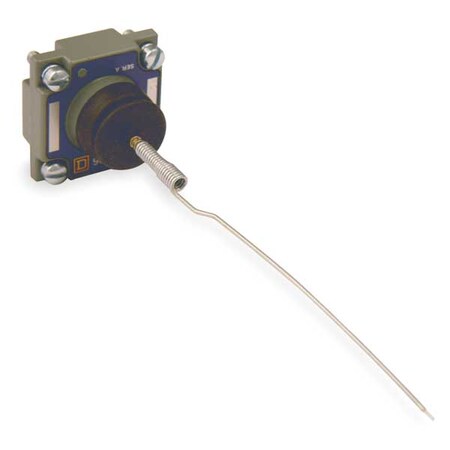

Limit Switch Head, Actuator Style Wobble Stick, Actuator Location Top, Actuator Length 3.95 in, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 4.0 in-lb, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating Not Rated, Standards CE, CSA, UL, For Use With 9007 Type C
Attributes
| Key ^ | Value |
|---|---|
| Actuator Length | 3.95 in |
| Actuator Location | Top |
| Actuator Style | Wobble Stick |
| Amps, Contact Form, Voltage Rating | Not Applicable |
| Associated Body | 9007C |
| Description/Special Features | 11.5 in Length From Tip to Bottom Rubber Boot, Die-Cast Zinc Alloy Body |
| Environmental Characteristic | standard environment |
| For Use With | 9007 Type C |
| IP Rating | Not Rated |
| Item, Product Or Component Type, Product Type | Limit Switch Head |
| Movement | Omnidirectional |
| NEMA Rating | 13, 4, 6P |
| Operating Force | 4.0 in-lb |
| Operating Temp. | 0 Degrees to 185 Degrees F |
| Series Name | heavy duty |
| Standards | CE, CSA, UL |
| Switch Actuation | any direction |
| Travel | 90 Degrees |
| Type Of Approach | multi-directional approach, multi-directional approach |
| Type Of Operator | spring return wobble stick steel wire extension |
