Description:

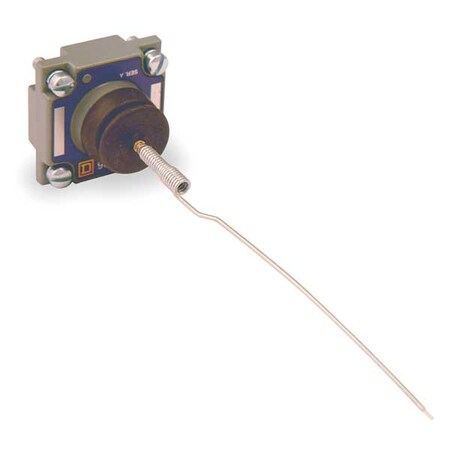

Limit Switch Head, Actuator Style Cat Whisker, Actuator Location Top, Actuator Length 4.75 in, Contact Form Not Applicable, Amps 10, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 7 in-oz, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating Not Rated, Standards CE, CSA, UL, For Use With 9007 Type C
Attributes
| Key ^ | Value |
|---|---|
| Actuator Length | 4.75 in |
| Actuator Location | Top |
| Actuator Style | Cat Whisker |
| Amps | 10 |
| Associated Lever | 9007C |
| Contact Form, Voltage Rating | Not Applicable |
| Description/Special Features | Momentary |
| Environmental Characteristic | standard environment |
| For Use With | 9007 Type C |
| Head Type | multi-directional head |
| IP Rating | Not Rated |
| Item, Product Or Component Type, Product Type | Limit Switch Head |
| Movement | Omnidirectional |
| Movement Of Operating Head | multi-directional |
| NEMA Rating | 13, 4, 6P |
| Operating Force | 7 in-oz |
| Operating Temp. | 0 Degrees to 185 Degrees F |
| Standards | CE, CSA, UL |
| Switch Actuation | any direction |
| Travel | 90 Degrees |
| Type Of Operator | spring return wire whisker steel - |
