Schneider Electric 9013FHG22J43M1

B013WY1HXY

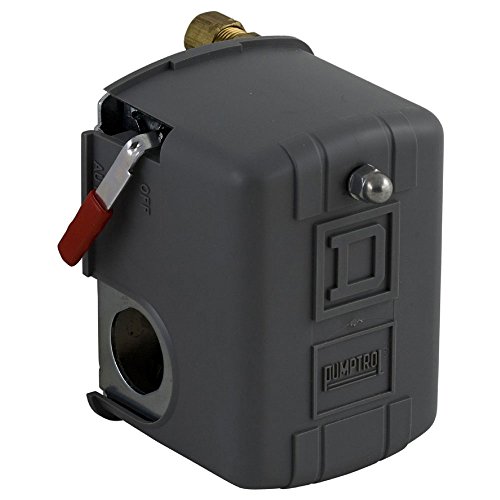

Square D by Schneider Electric 9013FHG22J43M1 Air-Compressor Pressure Switch, 80 psi Set Off, 20 psi Fixed Differential, 1/4" NPSF Internal, Auto/Off Cut-Out Lever

Square D by Schneider Electric 9013FHG22J43M1 Air-Compressor Pressure Switch, 80 psi Set Off, 20 psi Fixed Differential, 1/4" NPSF Internal, Auto/Off Cut-Out Leverzoom

Attributes

Key Value
AC Contact Rating10A @ 575V, 10 A @ 575V
ApplicationControl small electrica.
BrandSquare D by Schneider E.
Burst Pressure220 psi
Catalog Number9013FHG22J43M1
Circuit TypePower Circuit
ConditionNew
Contact Configuration2 NC, snap action, DPST.
Country of OriginMexico
DifferentialFixed Differential Scale
Electrical ConnectionScrew-Clamp Terminals
EnclosureNEMA 1 UL 50
Estimated Lead Time (in.7
GTIN785901511243
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V1 hp
ItemPressure Switch
Item TypeElectromechanical press.
Made in USANo
Manual Switch ActionAuto/Off
ManufacturerSquare D, Schneider Ele.
NEMA Rating1
Operating Cycles10 CYC/MN
Operating Temperature-33-257 A Degrees F
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor
Pressure Switch Differe.20 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.60/80 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range20 to 100 psi
Pressure Switch UnloaderNo
Process Connection0.25 INCH NPSF INTERNAL.
Series9013FHG
Special FeaturesNitrile (Buna-N) Diaphr.
StandardCSA FILE LR25490-UL LIS.
StandardsANSI /NSF Standard 61, .
Sub Brand9013FH
System Pressure100 PSI
Temp. Range-22 Degrees to 257 Deg.
UPC785901511243
Warranty DescriptionContractual Warranty:18.
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com9013FHG22J43M146.981In StockSquare D2.046.98 @ 1
thumbzoomZoroG234358254.09176Square D1.0954.09 @ 1
thumbzoomgordonelectricsupply.com9013FHG22J43M158.091In Stock10SQUARE D58.09 @ 1
thumbzoomsustainablesupply.comC118280459.631In StockSquare D1.0959.63 @ 1
thumbzoomcrescentelectric.com133364082.21In StockSquare D by Schneider Electric82.2 @ 1
grainger.caGUS2PXK886.726558941In StockSQUARE D1.0986.72655894 @ 1
thumbzoomRaptor SuppliesAH2QAL102.74033251In StockSQUARE D102.7403325 @ 1
