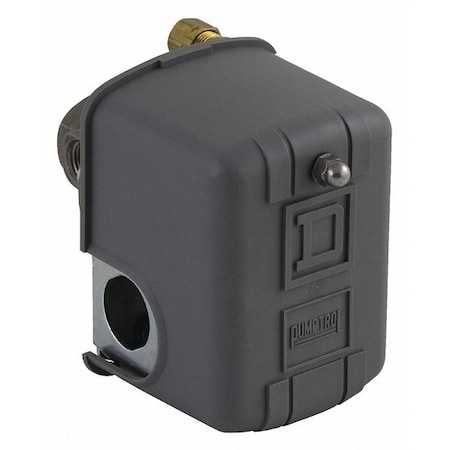

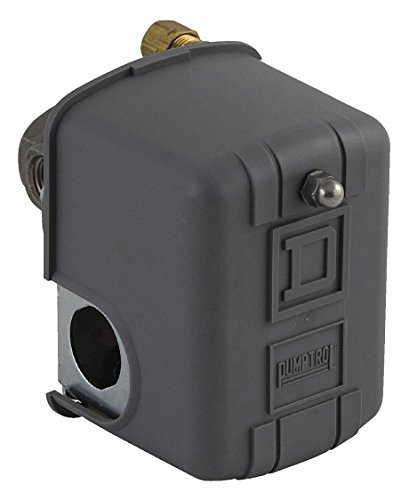

Square D 9013FHG44J59X

mpn9013FHG44J59X
brandname: SQUARE D
manufacturername: SQUARE D

Square D - 9013FHG44J59X - Schneider Electric/Square D 9013FHG44J59X Non-Adjustable Differential Pressure Switch; 220 psig, 1/4 Inch NPSF, 2 NC, DPST-DB, 575 Volt AC, 20 Amp

Brand: Square D
PartNumber: 9013FHG44J59X
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Square D
Label: Square D

Attributes

Key	Value
[Ui] Rated Insulation V.	575 V UL 508
AC Contact Rating	10A @ 575V
Adjustable Range On Ris.	100-200 psi
Ambient Air Temperature.	-33-257 ?F
Ambient Air Temperature.	-33-257 ?F
Approvals	CSA, UL
Approximate Fixed Diffe.	40 psi
Brand	Square D
Cable Entry Number	2 0.88 in cable entries.
California Proposition .	Diisononyl phthalate (D.
Circuit Type	Power Circuit
Circularity Profile	ENVEOLI111210EN
Color	Black
Condition	New
Contact Type	DPST
Contacts Type And Compo.	2 NC, snap action, DPST.
Controlled Fluid	air -22-257 ?F)
Current Stock	3
Depth	3.76 in
Destruction Pressure	220 psi
Electrical Circuit Type	Power Circuit
Electrical Connection	Screw Terminals, Screw-.
Electrical Durability	100000 cycles 10 cyc/mn
Enclosure Rating	NEMA 1
Environmental Disclosure	ENVPEP111211EN
Estimated Lead Time (in.	7
Eu Rohs Directive	Not applicable, out of .
Factory Modification	2-way pressure release .
Family Series	Square D Pressure Switc.
Fluid Connection Type	0.25 inch 4-way flange .
Gauge Proof Pressure	500 psig
Gross Weight	0 lbs
GTIN	785901667742
Height	4.45 in
HP @ 1 Phase - 120V	1 1/2 hp
HP @ 1 Phase - 230V	2
HP @ 1 Phase - 240V	2 hp
HP @ 3 Phase - 240V	3 hp
HP @ 3 Phase - 480V	1 hp
Increasing Pressure	100-200 psi
International Shipping	No
Ip Degree Of Protection	IP20 conforming to IEC .
IP Rating	IP20 (IEC 60529)
Item	Pressure Switch
Item Number	9013FHG44J59X
Lead Time	Expected to ship in 1-2.
Local Display	without
Manual Switch Action	None
Manufacturer	Square D
Manufacturer Part Number	155789
Material	polypropylene Cover \|\| .
Materials In Contact Wi.	zinc plated steel or eq.
Maximum Operating Rate	10 cyc/mn
Mechanical Durability	300000 cycles
Motor Power Kw	1.5 kW 2 hp)230 V AC, 1.
Mpn	9013FHG44J59X
Nema Degree Of Protecti.	NEMA 1 UL 50
NEMA Rating	1
Net Weight	1 lb(US), 1 lb
Operating Position	any position
Port Connection	1/4 in 4-Way Flange
Pressure Actuator	diaphragm
Pressure Sensor Name	9013FH
Pressure Sensor Size	200 psi
Pressure Sensor Type	electromechanical press.
Pressure Switch Action	Standard
Pressure Switch Applica.	Air Compressor
Pressure Switch Differe.	40 psi
Pressure Switch Electri.	DPST
Pressure Switch Factory.	135/175 psi
Pressure Switch Port Ty.	(4) Port, 1/4 in FNPS
Pressure Switch Range	60 to 200 psi
Pressure Switch Type Of.	regulation between 2 th.
Pressure Switch Unloader	1/4 in Compression
Product Certifications	CSA file LR25490 \|\| UL .
Product Series	9013F
Product Specific Applic.	control small electrica.
Protective Treatment	None
Quantity Per Set	1
Range Of Product	Square D Pumptrol
Reach Regulation	Reference contains Subs.
Repeat Accuracy	+/- 3 %
Scale Type	fixed differential
Series	9013FHG
Setting	internal
Short-Circuit Protection	20 A cartridge fuse gG
SKU	ZO-G3190381
Special Features	Nitrile (Buna-N) Diaphr.
Standards	ANSI /NSF Standard 61, .
SubCategory	Electrical
Temp. Range	-22 Degrees to 257 Deg.
Terminal Block Type	4 terminals
Terminals Description I.	L1-T1 \|\| L2-T2
Type of Circuit	Normally Closed
Type Of Packing	individual
UPC	785901667742
Value Of Setting	off at 175 psi
Warranty	18 months
Weight	2.000000
Width	2.78 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Galco	9013FHG44J59X-SQD	36.1	1	4		Square D	1.0	36.1 @ 4
industrialrefrigerationparts.com	9013FHG44J59X	36.8	1	4		Square D	2.0	36.8 @ 4
Zoro	G3190381	39.19	1	76		Square D	0.95	39.19 @ 4
gordonelectricsupply.com	9013FHG44J59X	45.09	1	4	10	SQUARE D		45.09 @ 4
Onlinecomponents.com	9013FHG44J59X	48.06	1	4		Square D		48.06 @ 4
simsupply.com	ZO-G3190381	52.34	1	4		Square D		52.34 @ 4
mayerelectric.com	SQD9013FHG44J59X	53.59	1	4		SQUARE D	1.0	53.59 @ 4
midwestapplianceparts.com	9013FHG44J59X-SQ-P	60.04	1	4		Squared		60.04 @ 4
sustainablesupply.com	C2681824	64.45	1	4		Square D	0.95	64.45 @ 4
Raptor Supplies	AH2QBQ	89.231571	1	4		SQUARE D		89.231571 @ 4
