B07KR9N1JF

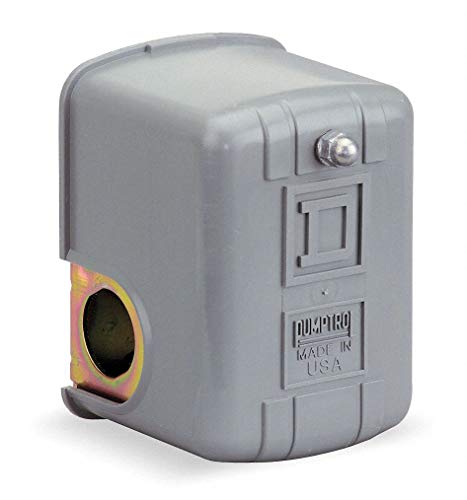

SQUARE D 9013GSG2J20P Pressure Swtch Diaphrgm 5 to 80 psi DPST

SQUARE D 9013GSG2J20P Pressure Swtch Diaphrgm 5 to 80 psi DPSTzoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V, 10 A @ 575V
Actuation TypeDiaphragm
Adjustable Range On Ris.20-80 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Adjustable .15-30 psi
BrandSquare D
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI111210EN
ColorGrey
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock4
Depth3.88 in
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Electrical Circuit Typepower circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Eu Rohs DirectivePro-active compliance (.
Factory Modificationpulsation plug
Fluid Connection Type0.25 inch NPSF internal.
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V3
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemPressure Switch
Local Displaywithout
Manual Switch ActionNone
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GSG2J20P
Nema Degree Of Protecti.NEMA 1 UL 50
NEMA Rating1
Net Weight2.25 lb(US)
Operating Positionany position
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GS
Pressure Sensor Size80 psi 5-60 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.15 to 30 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.20/40 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range5 to 80 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsCSA file LR25490 || UL .
Product Specific Applic.control electrically dr.
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series9013GSG
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G3353043
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsANSI /NSF Standard 61, .
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
Type Of Packingindividual
UPC785901636427
Value Of Setting20...40 psi
Warranty18 months
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG335304382.2919Square D2.082.29 @ 1
Grainger6B44786.01150SQUARE D86.0 @ 1
thumbzoomsustainablesupply.comC268191990.221In StockSquare D2.090.22 @ 1
thumbzoomsimsupply.comZO-G335304397.51In StockSquare D97.5 @ 1
thumbzoommayerelectric.comSQD9013GSG2J20P101.221In StockSQUARE D2.25101.22 @ 1
thumbzoommidwestapplianceparts.com9013GSG2J20P-SQ-P105.541In StockSquared105.54 @ 1
grainger.caGUS6B447147.44748891In StockSQUARE D2.0147.4474889 @ 1
thumbzoommostelectric.com9013GSG2J20P150.1211SQUARE D/TELEMECANIQUE150.12 @ 1
thumbzoomRaptor SuppliesAJ2JGN220.0509091In StockSQUARE D220.050909 @ 1
