CAI - SQUARE D 9080LBA163106

B07J6SQFF5

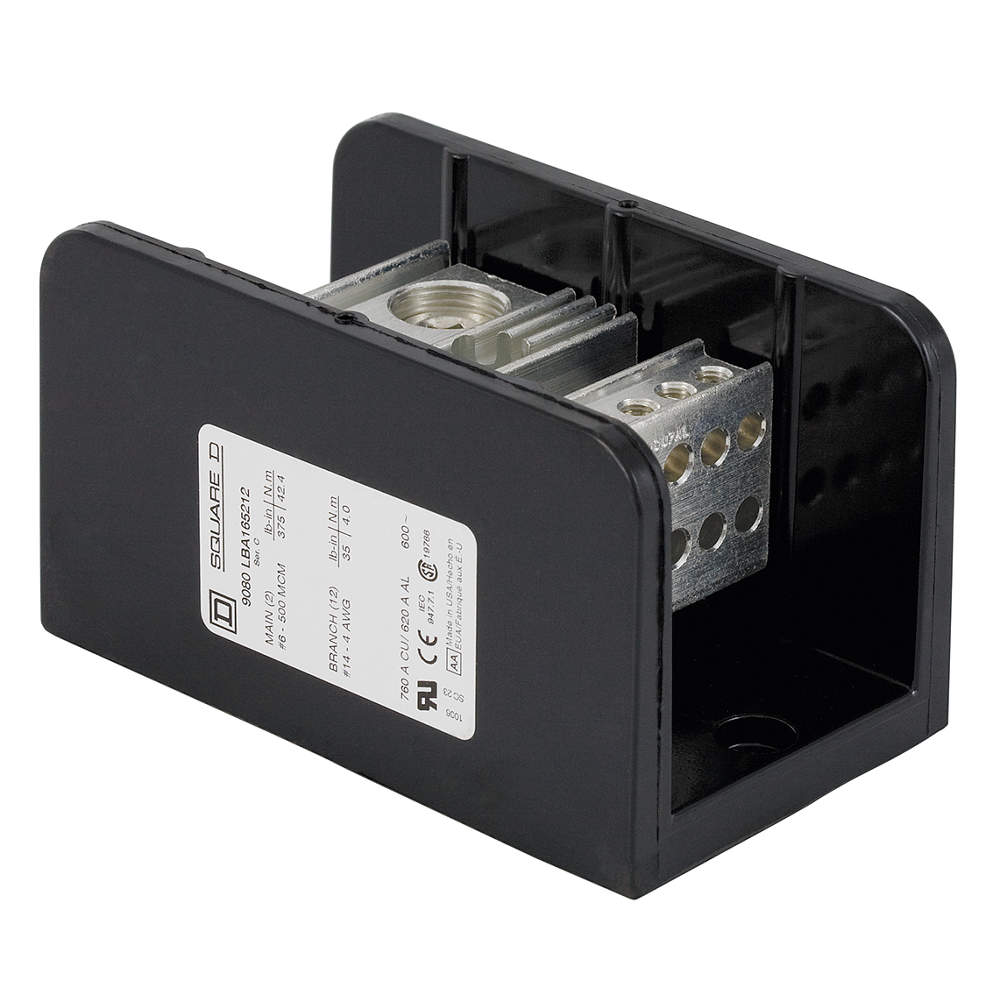

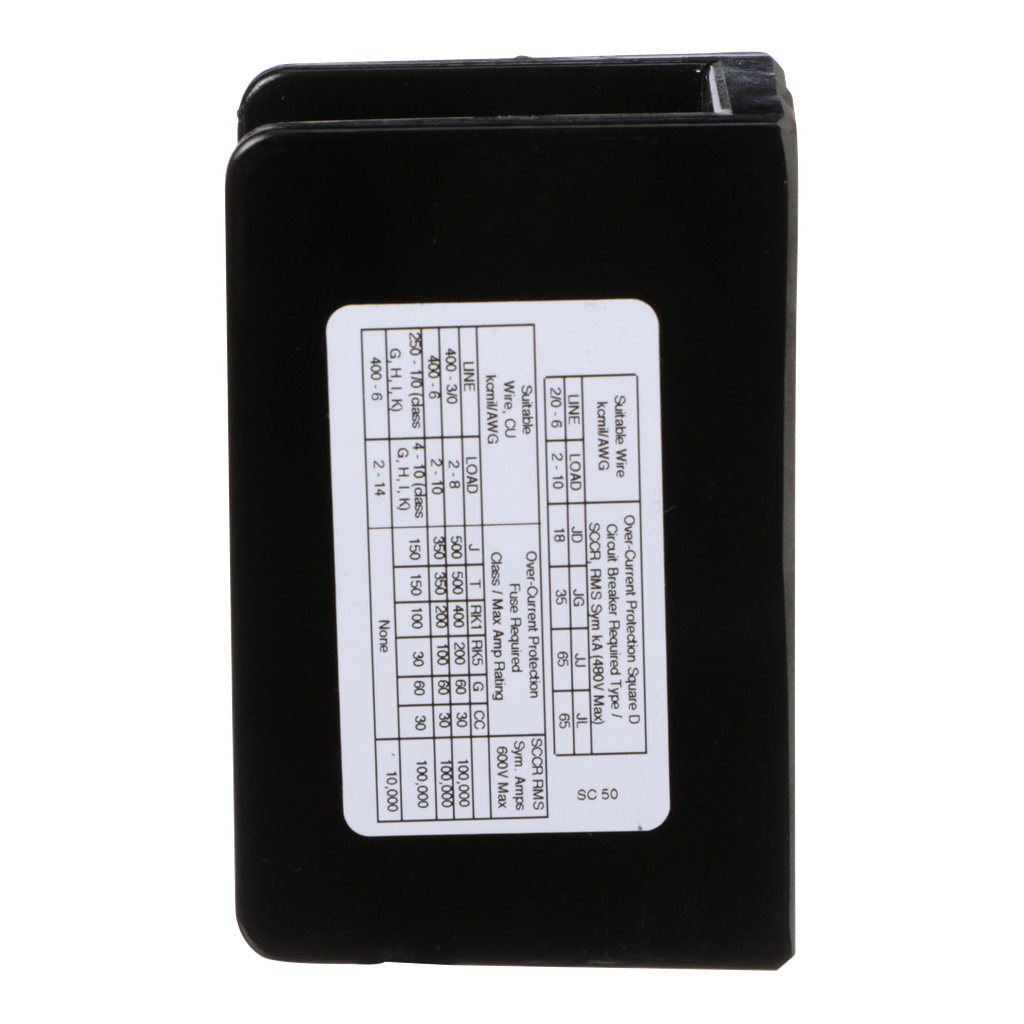

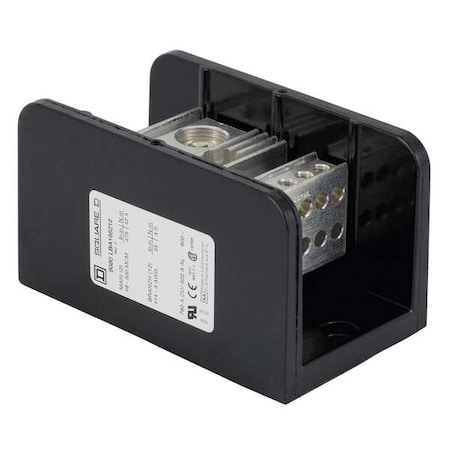

Square D Power Distribution Block, 335 Max. Amps, Number of Poles: 1

Square D Power Distribution Block, 335 Max. Amps, Number of Poles: 1zoom

Attributes

Key Value
[Ics] Rated Service Bre.65 kA UL 508 A
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-302 ?F
Amperage Rating335A
Application9080LB,9080LB31
BrandSquare D, Square D by S.
California Proposition .Lead and lead compounds.
Catalog Number9080LBA163106
CategoryConnectors, Interconnec.
China Rohs RegulationPro-active China RoHS d.
ConnectionTin plated aluminium lu.
Connections - Terminalsload lug 45 lbf.in AWG .
Country of OriginUnited States, US - Uni.
Current Rating (Amps)335 A
Current Stock47
Depth2.91 in, 2.61 in
DescriptionPWR DISTR BLK 600V 335A
Detailed Description1 Pole Power Distributi.
Digi-Key Part Number4008-9080LBA163106-ND
ECCNEAR99
Electrical Connectiontin plated aluminium lu.
Eu Rohs DirectiveCompliant
For Line Aluminum Wire .400 kcmil
For Line Aluminum Wire .6 AWG
For Line Copper Wire Si.400 kcmil
For Line Copper Wire Si.6 AWG
For Load Aluminum Wire .2 AWG
For Load Aluminum Wire .14 AWG
For Load Copper Wire Si.2 AWG
For Load Copper Wire Si.14 AWG
Height4.75 in
International ShippingNo
ItemPower Distribution Block
Item TypePower Distribution Bloc.
Lead TimeExpected to ship in 1-2.
Length4.0 in
Length (Straight Wirewa.4.0 in
Line Rated Current335-335 A copper || 270.
Line Side Connection Ty.Screw Connection
Line Side Connections P.1
Line Side Wire Size Ran.6 AWG - 400 kcmil
Line Side Wire/Stud Size400MCM (kcmil) - 6 AWG
Load Side Connection Ty.Screw Connection
Load Side Connections P.6
Load Side Wire/Stud Size2-14 AWG
Made in USAYes
ManufacturerSchneider Electric
Manufacturer Product Nu.9080LBA163106
Manufacturer Standard L.1 Weeks
MaterialPhenolic block
Material : phenolicblock
Max. Amps335 A
Mercury FreeYes
MfrSchneider Electric
MountingSurface
Mounting Supportsurface mount
Mpn9080LBA163106
Number Of Cablesline 1 , AWG 6...400 kc.
Number of Poles1
Number Of Poles1
Number Of Terminals1 line || 6 load
Overall Depth2.91 in
Overall Length4.75 in
Overall Width2.28 in
PackageBox
Packaging2 per Pack
Primary Connections/Pole1
Primary Wire Range (AWG)6 AWG to 500 MCM
Product CertificationsCSA file 70361 class 62.
Product Compatibility9080LB31
Product Or Component Ty.Power Distribution Block
Product StatusActive
Range Of Product9080LB
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Secondary Connection/Po.6
Secondary Wire Range (A.14 to 2 AWG
SeriesSquare D
Short-Circuit Current65 kA
Size2.91
SKUZO-G3539837
Special FeaturesLUGS TIN PLATED ALUMINI.
StandardCSA FILE 70361 CLASS 62.
SubCategoryElectrical
Toxic Heavy Metal FreeYes
TypePower Distribution Block
UNSPSC39121410
UPC785901097327
Voltage - Rated600 V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width2.28 in, 1.94 in
Wire SizeLine 1, AWG 6...400 kcm.
Wire Strip LengthLine 1.06 in; Load 0.56.
Wire Stripping Length :.1 in for bottom connect.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com216454853.751In StockSquare D53.75 @ 1
thumbzoomZoroG353983754.65147Square D0.6454.65 @ 1
thumbzoomDigi-Key1715740954.721In StockSchneider Electric54.72 @ 1
thumbzoommayerelectric.comSQD9080LBA16310658.941In StockSQUARE D58.94 @ 1
thumbzoomsustainablesupply.comC121284561.321In StockSquare D0.6461.32 @ 1
thumbzoomsimsupply.comZO-G353983764.78147Square D64.78 @ 1
us.rs-online.com7219489367.5712Square D67.57 @ 1
thumbzoomNewark17B334868.251In StockSQUARE D BY SCHNEIDER ELECTRIC68.25 @ 1
Graybar9009524569.161In StockSquare D (Schneider Electric)69.16 @ 1
steinerelectric.com9651670.291In StockSquare D?70.29 @ 1
thumbzoommostelectric.com9080LBA16310673.7316SQUARE D/TELEMECANIQUE73.73 @ 1
thumbzoomcrescentelectric.com3487683.3811Square D by Schneider Electric83.38 @ 1
thumbzoomRaptor SuppliesAG7FWT95.47755751In StockSQUARE D95.4775575 @ 1
thumbzoomNational Supply Network69659217103.241In StockSquare D103.24 @ 1
