| [Us] Rated Supply Voltage | 480 V |
| Back Emf Constant | 77.4 V/krpm 120 ?C |
| Brake Pull-In Power | 18 W |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Centring Collar Depth | 3.5 mm |
| Centring Collar Diameter | 130 mm |
| China Rohs Regulation | X |
| Circle Diameter Of The Mounting Holes | 165 mm |
| Continuous Power | 2.85 W |
| Continuous Stall Current | 8.58 A |
| Continuous Stall Torque | 10.3 N.m LXM32.D30M2 10 A, 230 V, single phase || 10.3 N.m LXM32.D30N4 10 A, 400 V, three phase || 10.3 N.m LXM32.D30N4 10 A, 480 V, three phase |
| Device Short Name | BMH |
| Electrical Connection | rotatable right-angled connectors |
| Environmental Disclosure | ENVPEP111002EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Feedback Type | multiturn SinCos Hiperface |
| Holding Brake | with |
| Holding Torque | 18 N.m holding brake |
| Ip Degree Of Protection | IP54 standard |
| Length | 187 mm |
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Current Irms | 29.8 A LXM32.D30M2 || 29.8 A LXM32.D30N4 |
| Maximum Mechanical Speed | 4000 rpm |
| Maximum Permanent Current | 29.8 A |
| Maximum Radial Force Fr | 1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Motor Flange Size | 140 mm |
| Mounting Holes Diameter | 11 mm |
| Mounting Support | international standard flange |
| Net Weight | 10.3 kg |
| Nominal Output Power | 1450 W LXM32.D30M2 10 A, 230 V, single phase || 2400 W LXM32.D30N4 10 A, 400 V, three phase || 2400 W LXM32.D30N4 10 A, 480 V, three phase |
| Nominal Speed | 2000 rpm LXM32.D30M2 10 A, 230 V, single phase || 3000 rpm LXM32.D30N4 10 A, 400 V, three phase || 3000 rpm LXM32.D30N4 10 A, 480 V, three phase |
| Nominal Torque | 6.9 N.m LXM32.D30M2 10 A, 230 V, single phase || 7.7 N.m LXM32.D30N4 10 A, 400 V, three phase || 7.7 N.m LXM32.D30N4 10 A, 480 V, three phase |
| Number Of Motor Poles | 10 |
| Number Of Motor Stacks | 1 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 30.8 N.m LXM32.D30M2 10 A, 230 V, single phase || 30.8 N.m LXM32.D30N4 10 A, 400 V, three phase || 30.8 N.m LXM32.D30N4 10 A, 480 V, three phase |
| Phase | three phase |
| Product Compatibility | LXM32.D30M2 230 V single phase || LXM32.D30N4 400...480 V three phase |

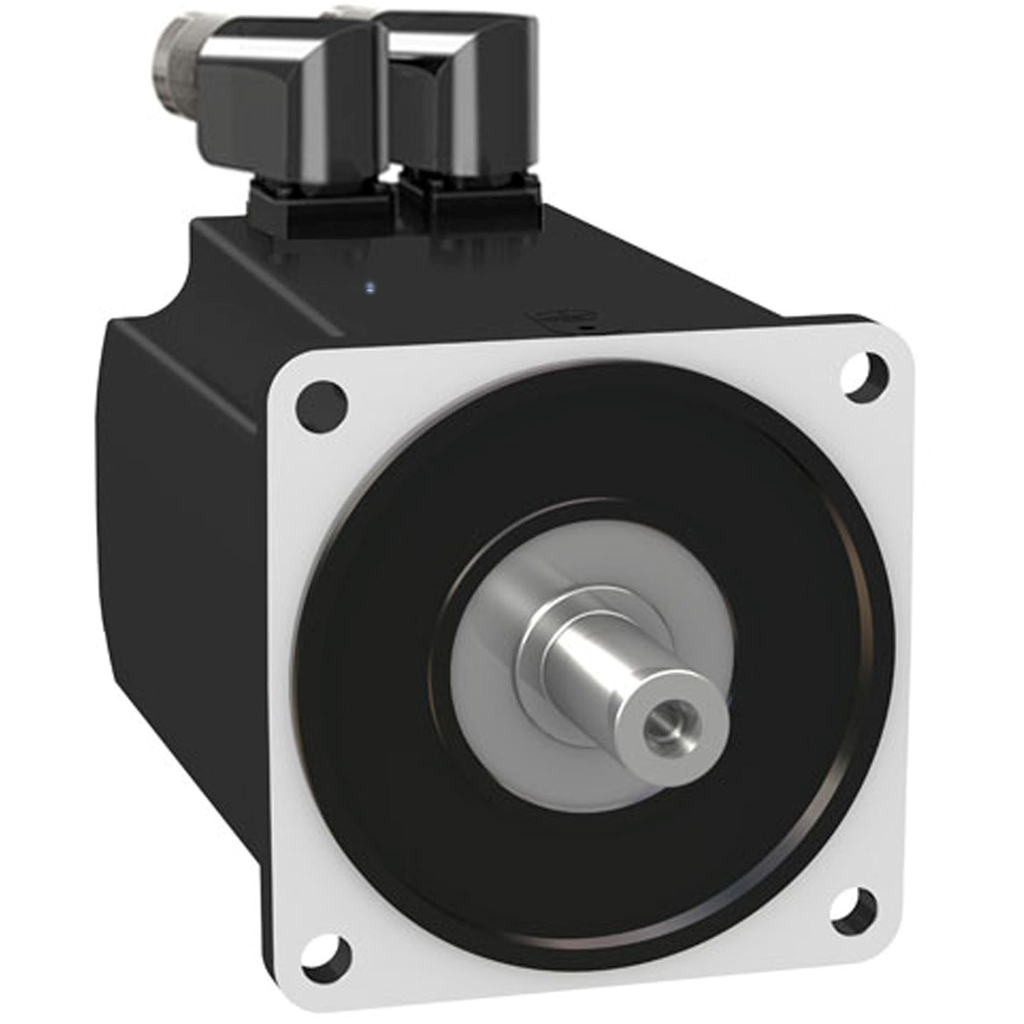

| Product Or Component Type | servo motor |
| Range Compatibility | Lexium 32 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rotor Inertia | 17.96 kg.cm? |
| Second Shaft | without second shaft end |
| Shaft Diameter | 24 mm |
| Shaft End | smooth shaft |
| Shaft Length | 50 mm |
| Speed Feedback Resolution | 32768 points/turn x 4096 turns |
| Stator Electrical Time Constant | 9.7 ms 20 ?C |
| Stator Inductance | 6.7 mH 20 ?C |
| Stator Resistance | 0.69 Ohm 20 ?C |
| Sustainable Offer Status | Green Premium product |
| Torque Constant | 1.2 N.m/A 120 ?C |
| Type Of Cooling | natural convection |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
