| [Ue] Rated Operational Voltage | 120/240 V AC |
| Bus Rated Current | 1200 A |
| Bypass Type | lever bypass |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Depth | 9.44 in |
| Device Mounting | surface |
| Enclosure Material | steel |
| Eu Rohs Directive | Compliant |
| Height | 53.06 in |
| Line Rated Current | 225 A |
| Material | aluminium/copper busbar |
| Mercury Free, Rohs Exemption Information | Yes |
| Meter Socket Type | ringless |
| Nema Degree Of Protection | NEMA 3R |
| Number Of Jaws | 5 with jaw release |
| Number Of Meter Sockets | 3 |
| Phase | 1 phase in || 1 phase out |
| Product Certifications | UL Listed |

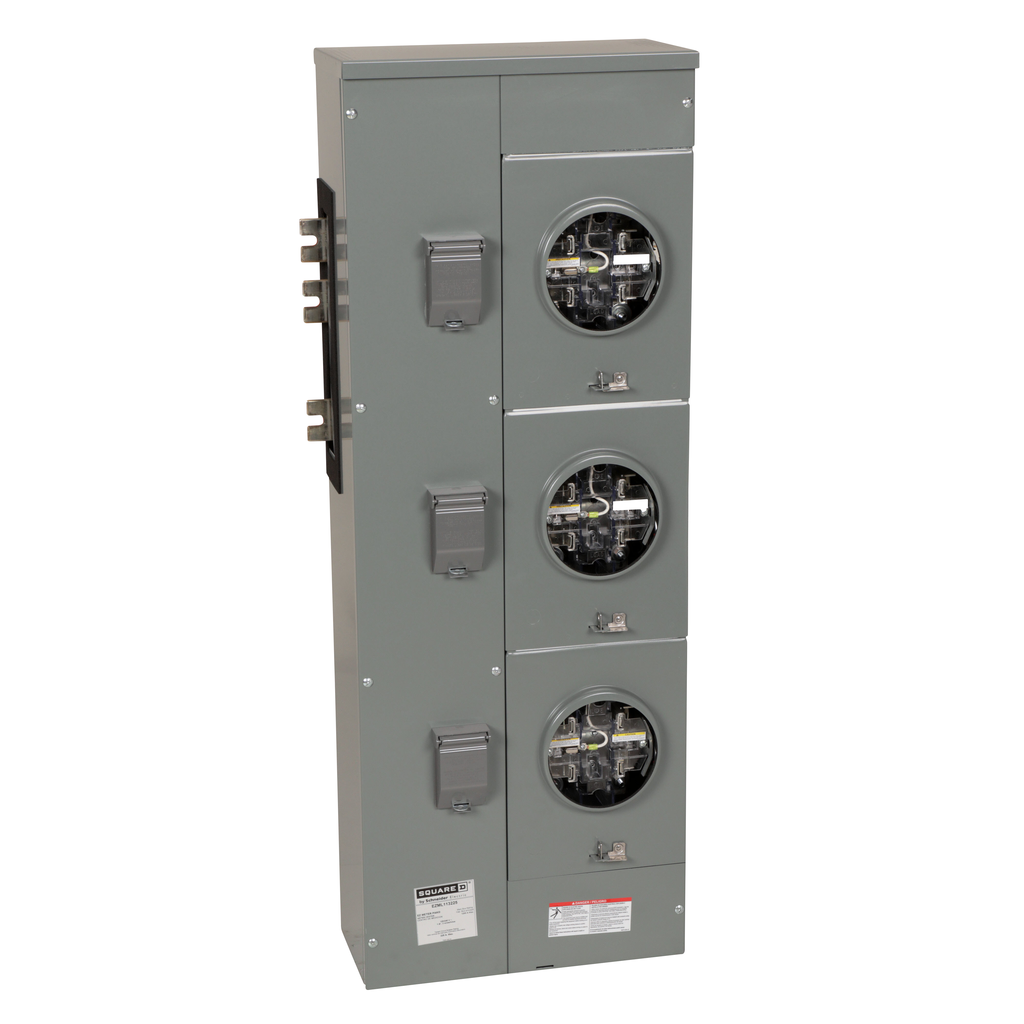

| Product Or Component Type | Meter Center Branch Unit |
| Range Of Product | Meter-Pak |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Warranty | 18 months |
| Width | 19.44 in |
| Wiring Configuration | 3-wire |
