Description:

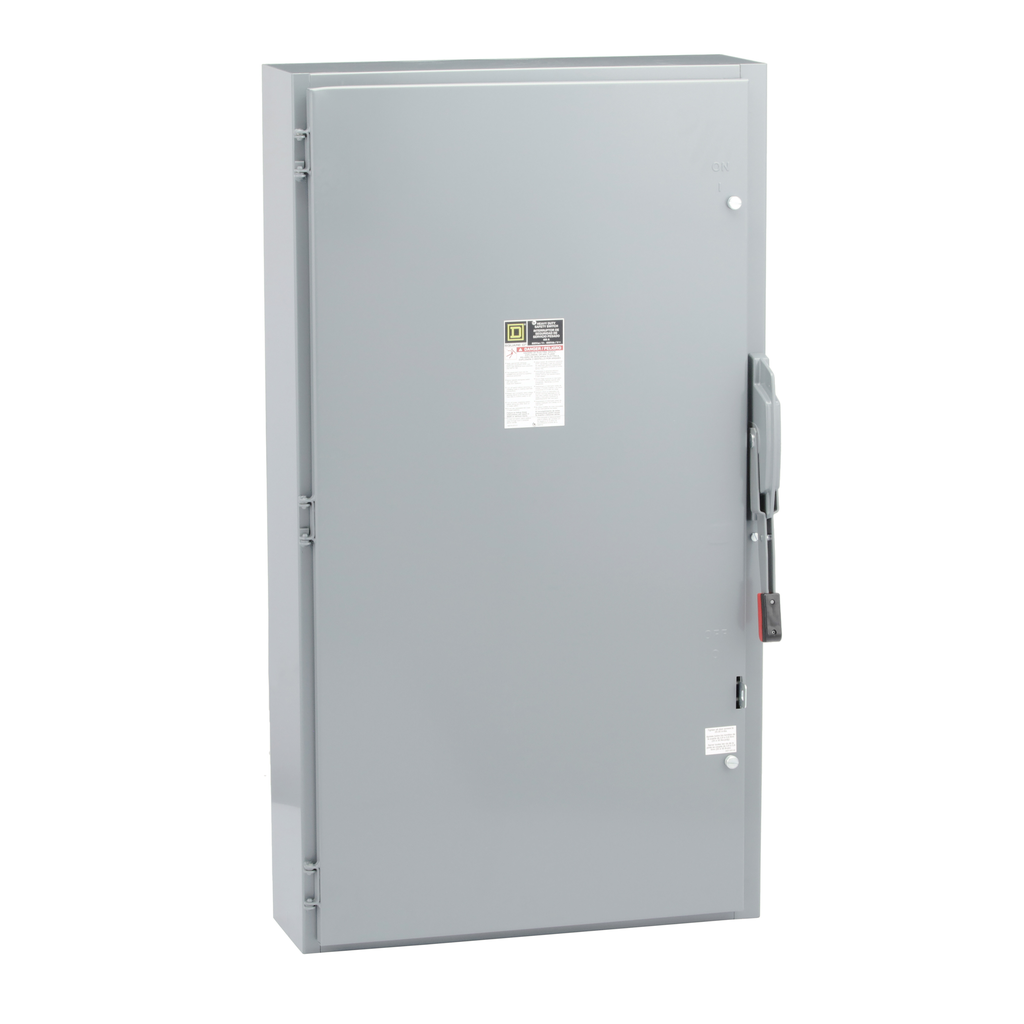

Shop SQUARE D at Mayer. Safety switch, heavy duty, fusible, 400A, 3 poles, 250 hp, 600 VAC/DC, NEMA 1
Attributes
| Key ^ | Value |
|---|---|
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Awg Gauge | AWG 1/0...750 kcmil copper or aluminium |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Depth | 10.13 in |
| Device Application | heavy application |
| Device Composition | none |
| Device Mounting | surface |
| Disconnector Device Type | fusible disconnect |
| Electrical Connection | lugs |
| Environmental Disclosure | ENVPEP1404026EN |
| Eu Rohs Directive | Compliant |
| Fuse Type | H or K || R or J |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 50.25 in |
| Line Rated Current | 400 A |
| Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Nema Degree Of Protection | NEMA 1 steel |
| Net Weight | 78 kg |
| Number Of Poles | 3 |
| Phase | 3 phase |
| Product Certifications | UL listed file E2875 |
| Product Or Component Type | Single Throw Safety Switch |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Series Name | heavy duty |
| Short-Circuit Current | 10 kA for H or K || 200 kA for R or J |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 550-550 lbf.in (AWG 1/0...750 kcmil) |
| Warranty | 18 months |
| Width | 27.63 in |
| Wiring Configuration | 3-wire |
