mpn:
brand:
manufacturer:
MPN:
Description:

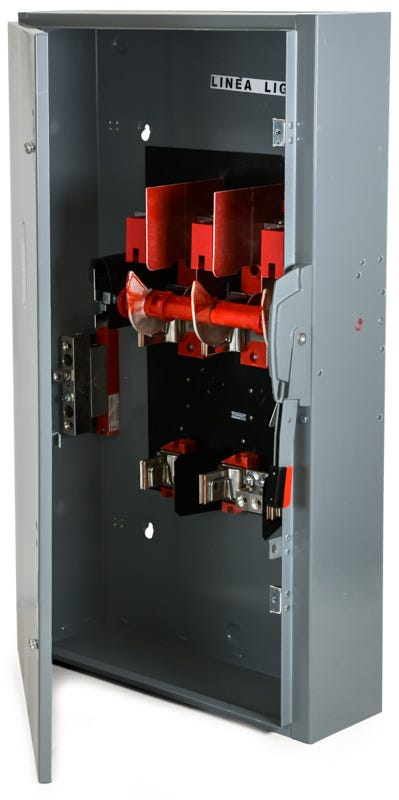

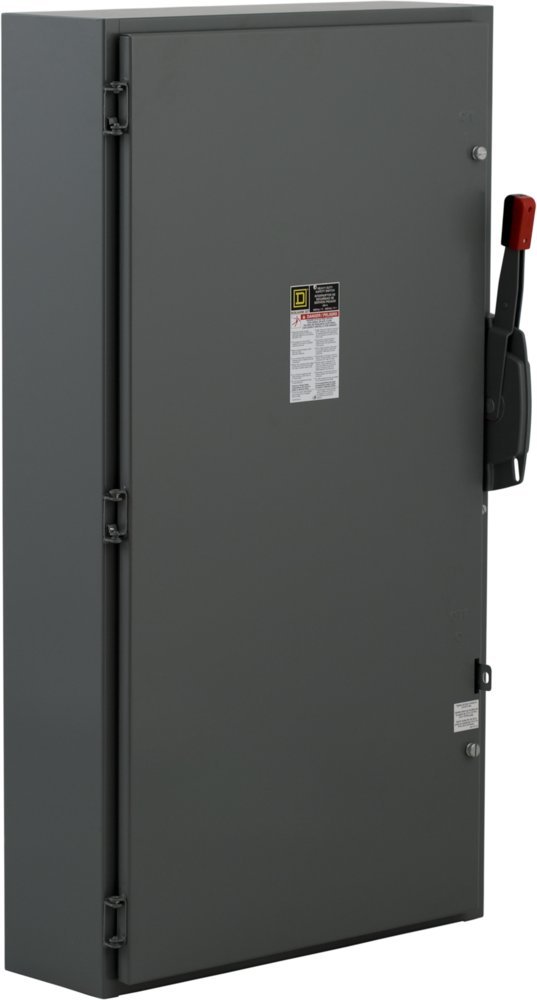

SWITCH FUSIBLE HD 600V 600A 3P NEMA1
Weight:
11.1875
Weight:
11.1875 LB
Preferred Price:
5281.68
Price:
5281.68
Min Simple Price:
2984.0
Absolute Min Price:
4237.28
Min Price:
4237.28
Dimensions:
[52.0, 29.0, 14.0]
qty:
21
simpleSku:
DUzOTQ:::H366
sku:
DUzOTQ::EB:H366@y0
condition:
11
seller:
AmazonTP
amzMan:
square d
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| [Ue] Rated Operational Voltage, Voltage Rating | 600 V AC/DC |
| Action | SINGLE THROW |
| Amperage Rating | 600, 600A |
| Amps AC, Line Rated Current | 600 A |
| Application, Duty Rating, Series Name, Special Features, Sub Brand | heavy duty |
| Awg Gauge, AWG Range | AWG 3/0...500 kcmil copper or aluminium |
| Brand | Square D |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number, Mpn | H366 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Connection | AWG 3/0...500 KCMIL COPPER OR ALUMINIUM,LUGS |
| Contact Form | 3PST |
| Country of Origin | United States, MX - Mexico |
| Depth | 10.13 in., 10.13 in, 10.1 in |
| Device Application | heavy application |
| Device Composition | none |
| Device Mounting, Mounting, Mounting Type | surface |
| Disconnector Device Type | fusible disconnect |
| Duty | Heavy |
| ECCN | EAR99 |
| Electrical Connection | lugs |
| Enclosure Depth | 6 - 12 inches |
| Enclosure Height | 30 inches and larger |
| Enclosure Width | 20 to 29 3/4 inches |
| Enclosure, Nema Degree Of Protection | NEMA 1 steel |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Environmental Disclosure | ENVPEP1404026EN |
| Eu Rohs Directive | Compliant |
| For Use With | Class R Fuse |
| Fuse Kit (Class R) | Mfr. No. HRK4060 |
| Fuse Type | H or K || R or J |
| Fusibility, Fusible / Nonfusible, Protection Method | Fusible |
| GTIN | 00785901451891 |
| Gtin, Upc, UPC, UPC Code | 785901451891 |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 50.25 in, 50.25 in., 50.2 in |
| HP | 400 hp @ 600V AC |
| IP Rating | 20 |
| Item | Safety Switch |
| Item Type | SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT |
| Made in USA, Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Manufacturer | Schneider Electric |
| Material, Material of Construction | Steel |
| Metallic / Non-Metallic | Metallic |
| NEMA Enclosure Type, NEMA Rating | 1 |
| Nema Rating | Indoor |
| Net Weight | 81.2 kg |
| No. of Poles, No. of Wires, Number of Poles, Number Of Poles, Number of Wires, Phase | 3 |
| Phase | 3 phase |
| Product Certifications, Standard | UL listed file E2875 |
| Product Or Component Type | Single Throw Safety Switch |
| Rated Voltage | 600V ac/dc |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Series | H, H3 Series |
| Short-Circuit Current | 10 kA for H or K || 200 kA for R or J |
| Size | 10.13 IN,27.63 IN,50.25 IN |
| Standards | UL, UL listed |
| Sustainable Offer Status | Green Premium product |
| Tightening Torque | 375-375 lbf.in (AWG 3/0...500 kcmil) |
| Type | Heavy Duty Safety Switch |
| UNSPSC | 39122205 |
| Voltage | 600V AC |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18 months |
| Width | 27.63 in., 27.6 in, 27.63 in |
| Wiring Configuration | 3-wire |
