mpn:
brand:
manufacturer:
MPN:
Description:

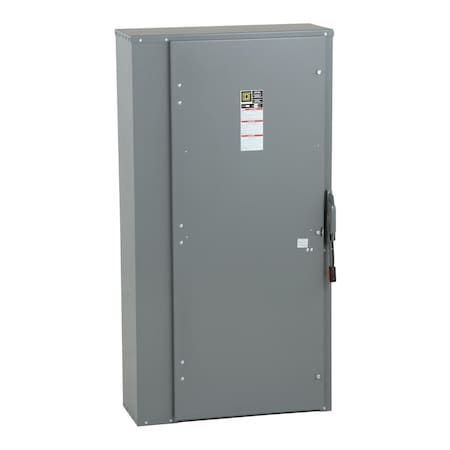

SWITCH FUSIBLE HD 600V 1200A 3P NEMA1
Weight:
23.0175
Weight:
361.0 LB
Preferred Price:
10947.45
Price:
10947.45
Min Simple Price:
6185.0
Absolute Min Price:
8782.7
Min Price:
8782.7
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
DY0NDY:::H368
sku:
DY0NDY::KA:H368@y0
condition:
11
seller:
gordonelectricsupply.com
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| [Ue] Rated Operational Voltage, Voltage Rating | 600 V AC/DC |
| Actuator Type | Single Throw |
| Amperage Rating | 1200A, 1200, 1200 A, 1200 |
| Amps AC, Line Rated Current | 1200 A |
| Application | HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT. |
| Awg Gauge, AWG Range | AWG 3/0...750 kcmil copper or aluminium |
| Brand | Square D |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number | H368 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | Gray |
| Connection | AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS |
| Contact Configuration, No. of Poles, No. of Wires, Number Of Poles, Number of Poles, Number of Wires, Phase | 3 |
| Contact Form | 3PST |
| Contact Rating | Y |
| Country of Origin | United States, MX - Mexico |
| Country of Origin (subject to change) | Multiple |
| Depth | 17.75 in, 17.75 in. |
| Device Application | heavy application |
| Device Composition | none |
| Device Mounting, Mounting, Mounting Type, Mounting type | surface |
| Dimensions | 36.62 in W x 17.75 in D x 69.13 in H, 69.13 in H x 36.62 in W x 17.75 in D |
| Disconnector Device Type | fusible disconnect |
| Duty | Heavy |
| ECCN | EAR99 |
| Electrical Connection | lugs |
| Enclosure, Enclosure Type | NEMA 1 |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Environmental Disclosure | ENVPEP1405016EN |
| Eu Rohs Directive | Compliant |
| Finish | Painted |
| Fuse Type | L |
| Fusible / Nonfusible, Protection Method | Fusible |
| GTIN | 00785901195467 |
| Halogen Content Performance | Halogen free plastic parts product |
| Height | 69.13 in., 69.13 in |
| Horsepower | 50 hp, 500 hp |
| Item Type | SAFETY SWITCH |
| Item, Product Or Component Type | Single Throw Safety Switch |
| Made in USA, Mercury Free, Pvc Free, Rohs Exemption Information | Yes |
| Manufacturer | Schneider Electric |
| Material | Cold Rolled Steel |
| Nema Degree Of Protection | NEMA 1 steel |
| NEMA Enclosure Type, NEMA Rating, Wattage | 1 |
| Net Weight | 167.4 kg |
| Phase | 3 phase |
| Product Certifications | UL listed file E2875 |
| Rated Voltage, Voltage | 600V AC/DC |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Series | E4 |
| Series Name, Special Features, Sub Brand | heavy duty |
| Short Circuit Current Rating (kA) | 200, 200 kA |
| Short-Circuit Current | 200 kA maximum L |
| Size | 17.75 IN,36.62 IN,69.13 IN |
| Standard | UL 98 LISTED |
| Sustainable Offer Status | Green Premium product |
| Temperature Rating (Degrees F) | -22 to 104, -22 to 104 deg F |
| Terminal Type | Lug |
| Tightening Torque | 375-375 lbf.in 85.01-380 mm? (AWG 3/0...750 kcmil) |
| Type | Fusible General Purpose, Fusible General Purpose Heavy Duty, Heavy Duty Safety Switch |
| UNSPSC | 39122205 |
| UPC | 785901195467 |
| Voltage Rating | 600, 600 VAC/VDC |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18 months |
| Width | 36.62 in., 36.62 in |
| Wiring Configuration | 3-wire |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | gordonelectricsupply.com | H368 | 6185.0 | 6185.0 | 1 | In Stock | 10 | SQUARE D | 6185.0 @ Qty: 1+ | |
 | Newark | 15B9222 | 6783.97 | 6783.97 | 1 | In Stock | SQUARE D BY SCHNEIDER ELECTRIC | 6783.97 @ Qty: 1+ | ||
 | mayerelectric.com | SQDH368 | 7591.98 | 7591.98 | 1 | In Stock | SQUARE D | 368.28 | 7591.98 @ Qty: 1+ | |
 | standardelectricsupply.com | 2193527 | 7929.65 | 7929.65 | 1 | In Stock | Square D (Schneider Electric) | 7929.65 @ Qty: 1+ | ||
 | Radwell | H368 | 8000.0 | 8000.0 | 1 | In Stock | SCHNEIDER ELECTRIC SQUARE D | 8000.0 @ Qty: 1+ | ||
| steinerelectric.com | 505749 | 8108.04 | 8108.04 | 1 | In Stock | Square D? | 8108.04 @ Qty: 1+ | |||
 | Zoro | G5204571 | 8875.28 | 8875.28 | 1 | In Stock | Square D | 361.0 | 8875.28 @ Qty: 1+ | |
 | crescentelectric.com | 14536 | 18465.59 | 18465.59 | 1 | In Stock | Square D | 18465.59 @ Qty: 1+ | ||
| Graybar | 88240676 | 20634.8464 | 20634.8464 | 1 | In Stock | Square D (Schneider Electric) | 20634.8464 @ Qty: 1+ |
