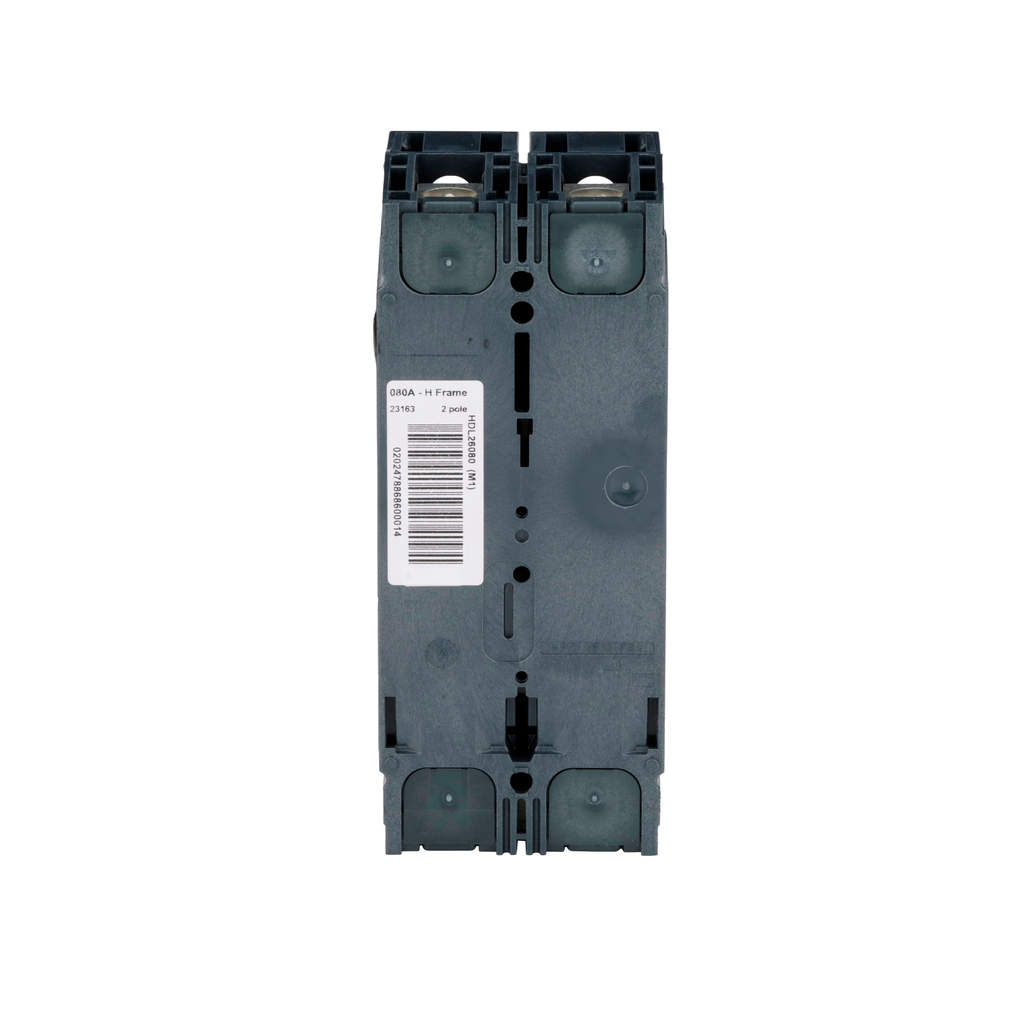

Schneider Electric HDL26080

Schneider Electric HDL26080

mpn:
HDL26080
brand:
Square D
manufacturer:
Square D
MPN:
HDL26080
Description:
Molded Case Circuit Breakers 2P 80A Thermal Magnetic PowerPact H-Frame Series
Weight:
0.3125
Weight:
3.15 LB
Preferred Price:
1509.52
Price:
1509.52
Min Simple Price:
852.84
Absolute Min Price:
1211.03
Min Price:
1211.03
Dimensions:
[7.0, 5.0, 3.0]
qty:
21
simpleSku:
DUzOTQ:::HDL26080
sku:
DUzOTQ::II:HDL26080@y0
condition:
11
seller:
Zoro
amzMan:
schneider electric
HazMat:
False
DropShip:
True

Attributes

Key ^Value
[Ics] Rated Service Breaking Capacity25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
[Ui] Rated Insulation Voltage750 V IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
AC Voltage Rating600V AC
Actuator Type, Circuit Breaker Actuator, Control TypeToggle
Ambient Air Temperature For Operation-2-70 ?C
Ambient Air Temperature For Storage-50-85 ?C
Amperage Rating80
Amps, Current Rating80 A
ApplicationPROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Awg Gauge, AWG RangeAWG 14...AWG 3/0 aluminium/copper terminal
BrandSquare D by Schneider Electric
Breaking Capacity25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Breaking Capacity Code, FrameD
California Proposition 65 : WARNING: This product can expose you to chemicals includingDINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog NumberHDL26080
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circuit Breaker ApplicationHACR rated
Circuit Breaker Mounting StyleFree Standing
Circuit Breaker TypeStandard
Circularity ProfileENVEOLI2206027EN
Color, Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMINIUM/COPPER,LUGS LOAD-LUGS LINE
Continuous Current Rating80 %
Country of OriginUnited States, US - United States
Current Rating80A
DC Voltage Rating250V DC
Depth86 mm
Depth, Length4.36 in
Device Applicationdistribution
Dimensions6.4 H x 4.12 W x 4.36 D in
DisplayHDL26080 Circuit breaker, PowerPact H, 80A, 2 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%
ECCNEAR99
Electrical Connectionlugs, line || lugs, load
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant with Exemptions
Family NamePowerPact H Family
Frame Size150A/HD
Frame TypeH Frame
Height163 mm, 6.4 in, 6.42
High Amp Trip Setting1,450 A
Instantaneous TripFixed
Interrupt Rating25kA@240VAC ; 18kA@480VAC ; 14kA@600VAC, 14kA
Ip Degree Of Protectionfront cover IP40 IEC 60529
ItemMolded Case Circuit Breaker
Item Type, Product Or Component Typecircuit breaker
Length, Wire Stripping Length16 mm
Line Rated Current80-80 A
Local Signallingswitched off (OFF) 1 trip indicator green)
Low Amp Trip Setting, Magnetic Hold Current800 A
Made in USA, Mercury Free, Pvc Free, Rohs Exemption InformationYes
Magnetic Tripping Current1450-1450 A
ManufacturerSchneider Electric
Max. AIR Rating25kA at 240V AC
Max. Wire Size3 AWG
Min. Wire Size14 AWG
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypePanel Mount
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Number Of Slots2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Operating Temperature40 A Degrees C
PhaseSingle
Phase ConnectionNot Applicable
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Protected Poles Description2t
Quality LabelsCE
Quantity Per Set1
Range, Sub BrandPowerPact
Rated Voltage690V AC 50/60 Hz IEC 60947-3
Reach RegulationReference contains Substances of Very High Concern above the threshold
SeriesPowerPact H-Frame Series, HD
Special FeaturesUNIT MOUNT
StandardCE-IEC-UL LISTED-CSA
Standard, StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
StandardsCE, CSA, IEC, UL Listed, UL 489 ; IEC/EN 60947-2 ; CSA C22.2 No. 5 ; Federal Specification W-C-375B/GEN ; NEMA AB1 ; NMX J-266 ; CCC ; CE Marked
Suitability For Isolationyes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionLine/Load Lug
Terminal IdentifierAL150HD
Terminal TypeLine: Lug - Load: Lug
TerminationScrew
Tightening Torque, Torque5-5 N.m 2.5-6 mm? (AWG 14...AWG 10) || 14-14 N.m 10-95 mm? (AWG 8...AWG 3/0)
Trip Range1450 A,80 A,800 A
Trip TimeAdjustable Trip
Trip TypeThermal Magnetic
Trip Type, Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
UPC, UPC Code785901461920
Utilisation Categorycategory A
Voltage Rating250 V DC-600 V AC, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Weight5.00 lbs.
Width2.74 in, 4.09, 104 mm, 104 in.
Wire Size3/0-14 AWG

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG1162463852.84852.841In StockSquare D852.84 @ Qty: 1+
standardelectricsupply.com2210698871.12871.121In StockSquare D871.12 @ Qty: 1+
thumbzoommayerelectric.comSQDHDL26080911.37911.371In StockSQUARE D4.84911.37 @ Qty: 1+
thumbzoomgordonelectricsupply.comHDL26080935.0935.01In Stock10SQUARE D935.0 @ Qty: 1+
thumbzoomRadwellHDL26080980.0980.01In StockSCHNEIDER ELECTRIC SQUARE D980.0 @ Qty: 1+
thumbzoomRaptor SuppliesAF6PQJ1045.9736821045.9736821In StockSQUARE D1045.973682 @ Qty: 1+
thumbzoomNewark20K00281069.581069.581In StockSQUARE D BY SCHNEIDER ELECTRIC1069.58 @ Qty: 1+
Grainger1MAK41107.01107.01In Stock16SQUARE D1107.0 @ Qty: 1+
us.rs-online.com700605641151.541151.541In StockSquare D5.01151.54 @ Qty: 1+
Graybar250703531189.441189.441In StockSquare D (Schneider Electric)1189.44 @ Qty: 1+
thumbzoomsustainablesupply.comC11673611215.181215.181In StockSquare D2.961215.18 @ Qty: 1+
thumbzoomNational Supply Network696473861223.871223.871In StockSquare D1223.87 @ Qty: 1+
thumbzoomcrescentelectric.com833151402.831402.831In StockSquare D by Schneider Electric1402.83 @ Qty: 1+
B00CONQ9II
893.14 USD
Schneider Electric HDL26080

SCHNEIDER ELECTRIC 600-VOLT 80-AMP HDL26080 Molded CASE Circuit Breaker 600V 80A

SCHNEIDER ELECTRIC 600-VOLT 80-AMP HDL26080 Molded CASE Circuit Breaker 600V 80Azoom
