| [Ics] Rated Service Breaking Capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Accessory / Separate Part Type | shunt trip 24 V DC compartment |
| Ambient Air Temperature For Operation | -2-70 ?C |
| Ambient Air Temperature For Storage | -50-85 ?C |
| Awg Gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Breaking Capacity | 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489 |
| Breaking Capacity Code | G |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311006EN |
| Color | Black |
| Communication Interface | Modbus || Ethernet |
| Continuous Current Rating | 80 % |
| Control Type | toggle |
| Depth | 86 mm |
| Device Application | distribution |
| Electrical Connection | busbar connection line || busbar connection load |
| Environmental Disclosure | ENVPEP1311006EN |
| Eu Rohs Directive | Compliant |
| Height | 163 mm |
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Line Rated Current | 125-125 A |
| Local Signalling | switched off (OFF) 1 trip indicator green) |
| Magnetic Hold Current | 900 A |
| Magnetic Tripping Current | 1700-1700 A |
| Mercury Free | Yes |
| Mounting Mode | unit mount busbar) |
| Mounting Support | busbar |
| Net Weight | 2.2 kg |
| Network Frequency | 50/60 Hz |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in) |
| Poles Description | 2P |
| Pollution Degree | 3 IEC 60947-1 |
| Product Certifications | UL || CSA || NOM |

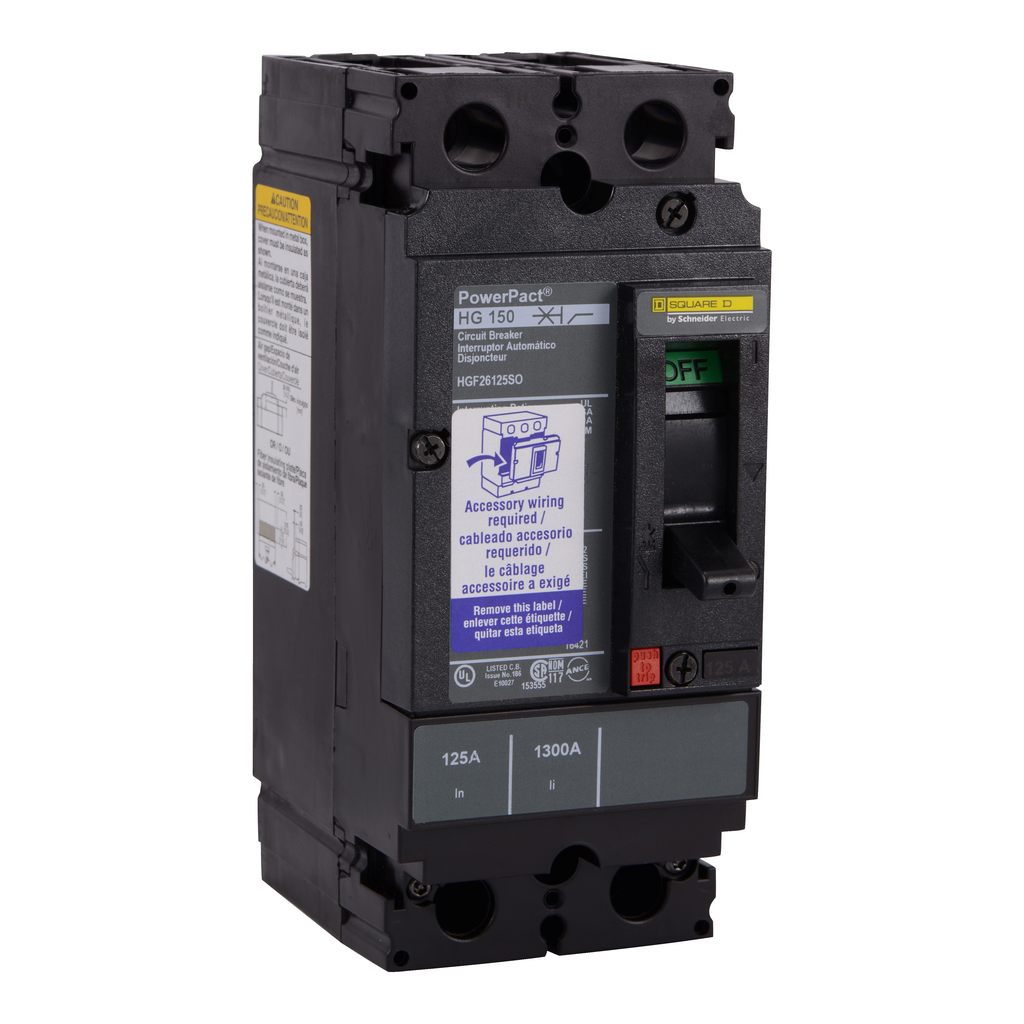

| Product Name | PowerPact H |
| Product Or Component Type | circuit breaker |
| Protected Poles Description | 2t |
| Pvc Free | Yes |
| Quality Labels | CE |
| Quantity Per Set | 1 |
| Range | PowerPact |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Sustainable Offer Status | Green Premium product |
| Terminal Identifier | AL150HD |
| Tightening Torque | 5-5 N.m 2.5-6 mm? (AWG 14...AWG 10) || 14-14 N.m 10-95 mm? (AWG 8...AWG 3/0) |
| Trip Unit Technology | thermal-magnetic |
| Utilisation Category | category A |
| Width | 104 mm |
| Wire Stripping Length | 16 mm |
