Square D by Schneider Electric HOM1224M100PC

B00NOZ9GIU

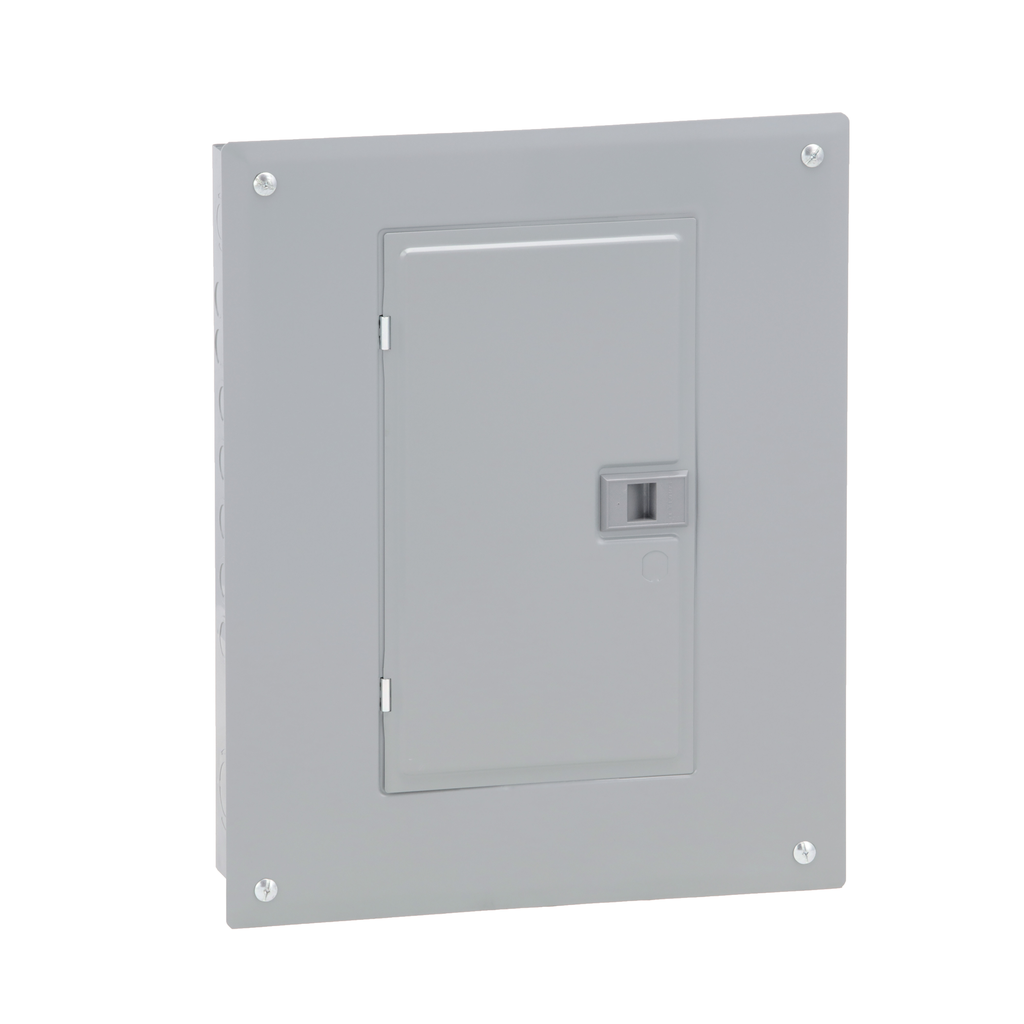

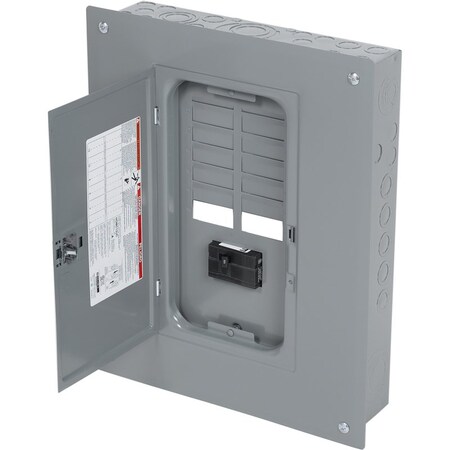

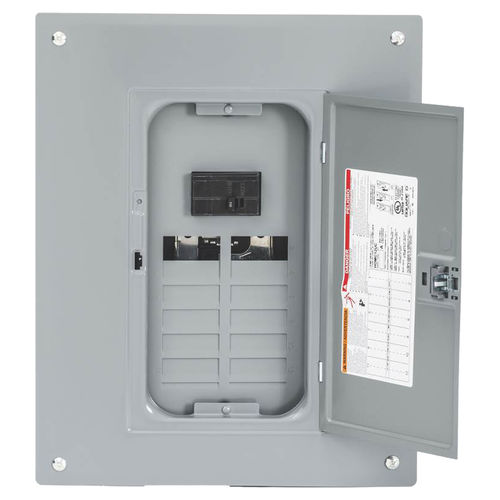

Square D - HOM1224M100PC 100 Amp 12-Space 24-Circuit Indoor Main Breaker Load Center

Square D - HOM1224M100PC 100 Amp 12-Space 24-Circuit Indoor Main Breaker Load Centerzoom

Attributes

Key Value
Ambient Air Temperature.-5 ?C || 40 ?C
Amperage100A
Amperage Rating100
Amps100 A
Availability:Drop Ship
Awg GaugeAWG 6...AWG 2/0 alumini.
AWG RangeAWG 6...AWG 2/0 Aluminu.
Box Number6
BrandSquare D by Schneider E.
Brand:Square D Co.
Bus Materialtin plated aluminium bu.
Bus Rated Current125.0 A
Cable SizeAWG 6...AWG 2/0 alumini.
California Proposition .Lead and lead compounds.
Catalog NumberHOM1224M100PC
China Rohs RegulationPro-active China RoHS d.
Circuit Breaker TypeHomeline
ColorBaked Enamel Gray
Color FamilyGray
Country of OriginUNITED STATES, US - Uni.
Country:UNITED STATES
Cover TypeCombination Flush/Surfa.
Current Rating100 A
Depth95 mm
Device Compositiongrounding bar (ordered .
ECCNEAR99
Enclose TypeIndoor
EnclosureBaked enamel Gray;Welde.
Enclosure Materialwelded sheet steel
Enclosure NEMA RatingNEMA 1 indoor
Environmental DisclosureENVPEP1403002
Eu Rohs DirectiveCompliant
Ground Bar Kitgrounding bar (ordered .
Height455 mm
Interrupt Rating22 kA
ItemLoad Center
Item TypeLoad Center
Item Weight15.50 lbs per EA
Line Rated Current100 A
Load Center TypePoN Convertible Mains (.
Made in USAYes
Main Circuit Breaker or.PoN Convertible Mains (.
Main TypePoN Convertible Mains (.
ManufacturerSchneider Electric
Manufacturer:Square D Co.
MaterialTin Plated Aluminum Bus.
Max Number of Circuits24
Max. No. of Tandem Brea.12
Max. Single Pole Circui.12
Max. Tandem Circuits24
Mercury FreeYes
Mount TypeCombination
MPN:HOM1224M100PC
Nema Degree Of Protecti.NEMA 1 indoor
No. of Circuits24
No. of Spaces12
No. of Wires3-wire
Number Of Circuits24
Number of Spaces12
Number Of Spaces12
Number Of Tandem Circui.12
Package Quantity1
Phase1, Single, 1 phase
Primary/Ambient Air Tem.-5?C || 40?C
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Provided Equipmentcircuit-breaker 1 ) 2P .
Range Of ProductHomeline
Rated Current100A
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
RSPID:123907771
RSPN:DIB508349
SeriesHOM Series, Homeline
Short Circuit Current R.22 kA
Short-Circuit Current22 kA
Special Featurestin plated aluminium bu.
StandardUL E-6294
StandardsUL listed file E-6294
Sub BrandHomeline
Surface FinishBaked Enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
UL ListedYes
UNSPSC39121101
UPC785901863540
UPC Code785901863540
UPC:00785901863540
Voltage120V/240V
Voltage Rating120/240 V AC
Width362 mm
Wire SizeAWG 6...AWG 2/0 alumini.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
pioneergeneralstore.com699459466.7313SQUARE D BY SCHNEIDER ELECTRIC66.73 @ 3
thumbzoomResourceful SupplyHOM1224M100PC67.99133Square D Co.67.99 @ 3
Home Depot20483633971.013Square D71.0 @ 3
Graybar2564968180.292813Square D (Schneider Electric)80.2928 @ 3
AmazonTPB00NOZ9GIU80.85133Square D by Schneider Electric80.85 @ 3
thumbzoomgordonelectricsupply.comHOM1224M100PC93.0913SQUARE D93.09 @ 3
thumbzoommayerelectric.comSQDHOM1224M100PC93.3613SQUARE D93.36 @ 3
thumbzoomstandardplumbing.comHOM1224M100PC93.5613SCHNEIDER ELECTRIC USA, INC.93.56 @ 3
thumbzoomzaynesolutions.com699459497.5318SQUARE D97.53 @ 3
thumbzoomparisfarmersunion.com699459499.9913SQUARE D99.99 @ 3
thumbzoomRadwellHOM1224M100PC100.1113SCHNEIDER ELECTRIC18.0100.11 @ 3
Ace Hardware36003109.9913Square D109.99 @ 3
thumbzoomPlumbersStock591580111.9213Square D18.3111.92 @ 3
JugenheimerJI508349119.9913Square D Co.15.5119.99 @ 3
thumbzoomhardwareandmoreee.com863787122.6117SQUARE D BY SCHNEIDER ELECTRIC122.61 @ 3
Life and Home42972421127.1213Square D127.12 @ 3
thumbzoomHardware and ToolsEBBA-9049133.7913Square D133.79 @ 3
thumbzoomZoroG406885901149.9913Square D149.99 @ 3
us.rs-online.com70920754172.0113Square D172.01 @ 3
standardelectricsupply.com2354849185.5813Square D185.58 @ 3
thumbzoomcrescentelectric.com227824416.3112Square D by Schneider Electric416.3 @ 3
