Schneider Electric HOM48L125GRB

B004Q0P0BY

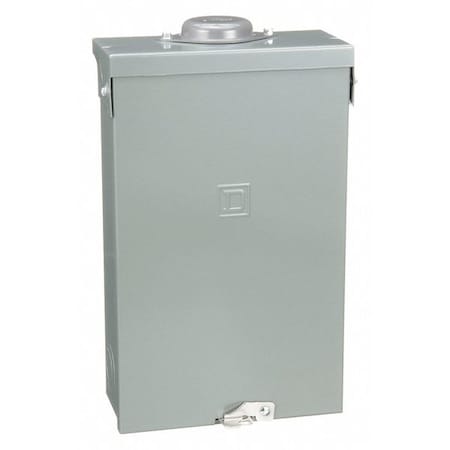

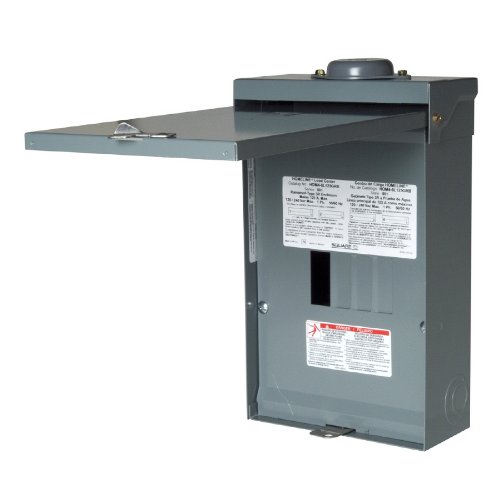

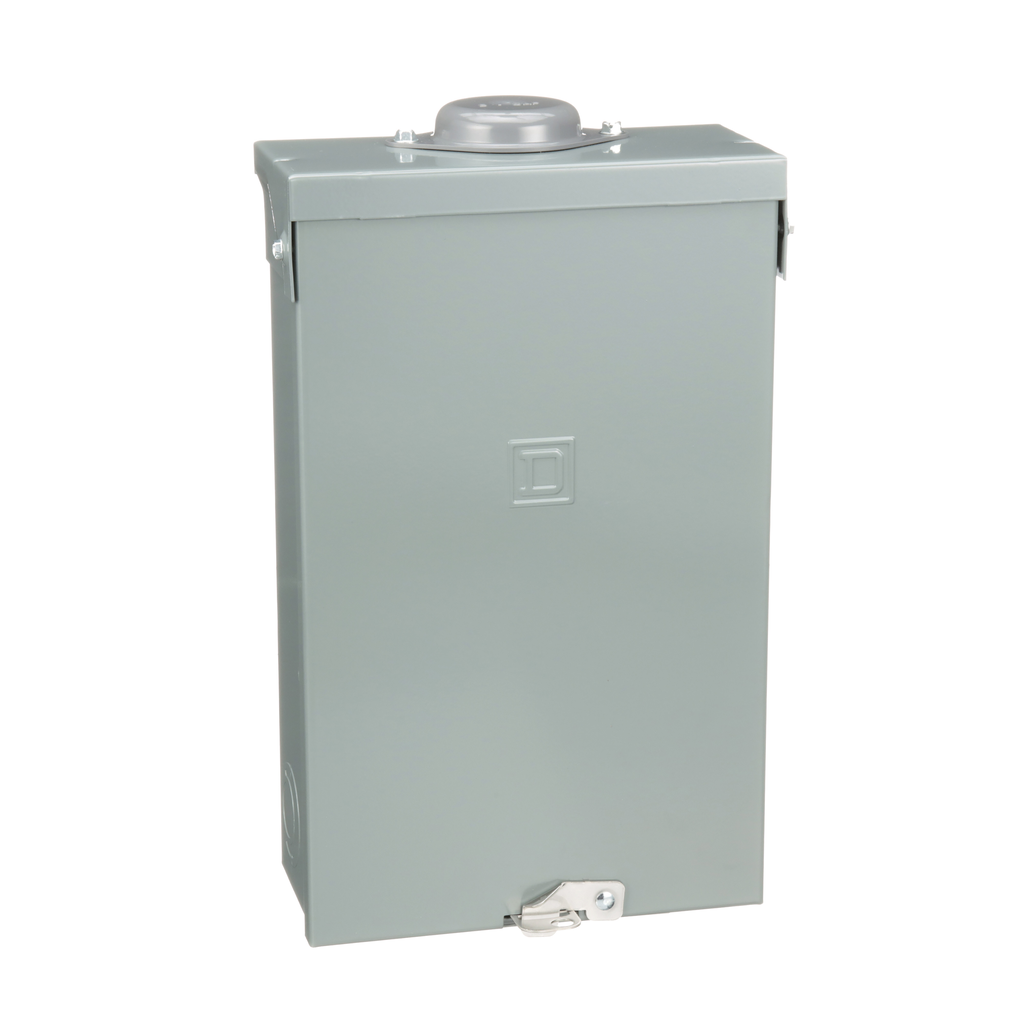

SCHNEIDER ELECTRIC Center 240-Volt 125-Amp 1-Phase Nema-3R HOM48L125GRB Ld Ctr HOM Mlo 240V 125A 1 Ph 4Sp Nema3R

SCHNEIDER ELECTRIC Center 240-Volt 125-Amp 1-Phase Nema-3R HOM48L125GRB Ld Ctr HOM Mlo 240V 125A 1 Ph 4Sp Nema3Rzoom

Attributes

Key Value
Additional FeaturesDesigned to Meet Resdie.
Ambient Air Temperature.-5 ?C || 40 ?C
AMP125
Amperage Rating125 A, 125
Amps125
ApplicationDESIGNED TO MEET RESIDE.
Awg GaugeAWG 14...AWG 2/0 copper.
AWG RangeAWG 14...AWG 2/0 Copper.
Box Number15R
BrandSquare D by Schneider E.
Breaker MountingPanel
Breaker TypeHOM
Cable SizeAWG 14...AWG 2/0 copper.
California Proposition .Lead and lead compounds.
Catalog NumberHOM48L125GRB
China Rohs RegulationPro-active China RoHS d.
Circuit Breaker TypeHOM
Colorbaked enamel Gray
Color FamilyGray
Color FinishGrey
ConditionNew
ConfigurationEnclosed
Country of OriginMX - Mexico, Mexico
Cover Typesurface cover
Current Rating125 A
Depth4-27/100 in, 108 mm
Device Compositiongrounding bar included .
Dimensions8.88 in W x 4.27 in D x.
ECCNEAR99
EnclosureBaked enamel Gray;Welde.
Enclosure Box Size15R
Enclosure Materialwelded galvannealed ste.
Enclosure NEMA Rating3R
Enclosure TypeNEMA 3R
Environmental DisclosureENVPEP1403002
Estimated Lead Time (in.4
Eu Rohs DirectiveCompliant
Family SeriesSquare D Miscellaneous
Frequency Rating50/60, 50/60 Hz
Gross Weight0 lbs
Height376 mm, 14-4/5 in
Housing materialSteel
Interrupt Rating10 kA, 10, 10 kA, 10 KA.
ItemLoad Center
Item NumberHOM48L125GRB
Item TypeLoad Center
Line Rated Current125 A
Load Center Typemain lugs
Made in USANo
Main Circuit Breaker or.Main Lug
Main TypeFixed Mains (Lugs)
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number537211
Materialtin plated aluminium bu.
Mercury FreeYes
Mounting typeBolt-On/Flush
Mounting TypeSurface
Nema Degree Of Protecti.NEMA 3R outdoor
NEMA Rating3R
Net Weight0 lbs
No. of Circuits8
No. of Spaces4
No. of Wires3-wire
Number Of Circuits8
Number of Circuits8
Number of Poles1
Number Of Spaces4
Number of Spaces4
Number Of Tandem Circui.4
Package Quantity1
Phase1, 1 phase, Single Phase
Product CertificationsUL listed file E-6294
Product Or Component Ty.Load Center
Provided Equipmentgrounding bar 1 )
Range Of ProductHomeline
Rated Current125A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesHOM Series
Short-Circuit Current10 kA
Special Featurestin plated aluminium bu.
StandardUL E-6294
Sub BrandHomeline
Surface Finishbaked enamel Gray
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Type1-Phase Fixed Rainproof.
UL ListedYes
UNSPSC39121101
UPC785901484370
UPC Code785901484370
Voltage240V
Voltage Rating120/240, 120/240 VAC, 1.
Volts120/240V
WarrantyLifetime
Warranty DescriptionContractual Warranty:Li.
Weight2.000000
Width8-8/9 in, 226 mm
Wire Size12 to 2/0 AWG, 14 to 2/.
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Home Depot10019636830.311In StockSquare D30.31 @ 1
thumbzoomsustainablesupply.comC304595058.731In StockSquare D11.2458.73 @ 1
thumbzoomZoroG057099159.291In StockSquare D11.2459.29 @ 1
thumbzoomGalcoHOM48L125GRB-SQD62.611In StockSquare D62.61 @ 1
thumbzoomindustrialrefrigerationparts.comHOM48L125GRB63.811In StockSquare D2.063.81 @ 1
thumbzoomRadwellHOM48L125GRB70.01In StockSCHNEIDER ELECTRIC SQUARE D70.0 @ 1
thumbzoomgordonelectricsupply.comHOM48L125GRB75.091In Stock10SQUARE D75.09 @ 1
thumbzoommayerelectric.comSQDHOM48L125GRB76.031In StockSQUARE D76.03 @ 1
ferguson.com222937076.321In StockSquare D Company76.32 @ 1
solarflexion.comHOM48L125GRB103.921In StockSquare D103.92 @ 1
us.rs-online.com70920807106.781In StockSquare D106.78 @ 1
thumbzoomcrescentelectric.com20043173.521In StockSquare D by Schneider Electric173.52 @ 1
Graybar99538713175.24641In StockSquare D (Schneider Electric)175.2464 @ 1
Newark79C8684184.921In StockSQUARE D BY SCHNEIDER ELECTRIC184.92 @ 1
thumbzoomstandardelectricsupply.com2393655272.911In StockSquare D272.91 @ 1
