| [Ics] Rated Service Breaking Capacity | 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2 |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Ambient Air Temperature For Operation | -2-70 ?C |
| Ambient Air Temperature For Storage | -50-85 ?C |
| Awg Gauge | AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium |
| Breaking Capacity | 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489 |
| Breaking Capacity Code | G |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406010EN |
| Color | Black |
| Communication Interface | Modbus || Ethernet |
| Continuous Current Rating | 80 % |
| Control Type | toggle |
| Depth | 110 mm |
| Device Application | distribution |
| Device Short Name | L-Frame |
| Electrical Connection | lugs line || lugs load |
| Environmental Disclosure | ENVPEP1406010EN |
| Eu Rohs Directive | Compliant |
| Height | 340 mm |
| Ip Degree Of Protection | front cover IP40 |
| Line Rated Current | 250-250 A |
| Local Signalling | ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green) |
| Long Time Pick-Up Adjustment Range | 0.25...1 x In |
| Mercury Free | Yes |
| Mounting Mode | unit mount lug) |
| Mounting Support | lug |
| Net Weight | 6.2 kg |
| Network Frequency | 50/60 Hz |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in) |
| Poles Description | 4P |
| Pollution Degree | 3 IEC 60947-1 |
| Product Certifications | UL || CSA || NOM |

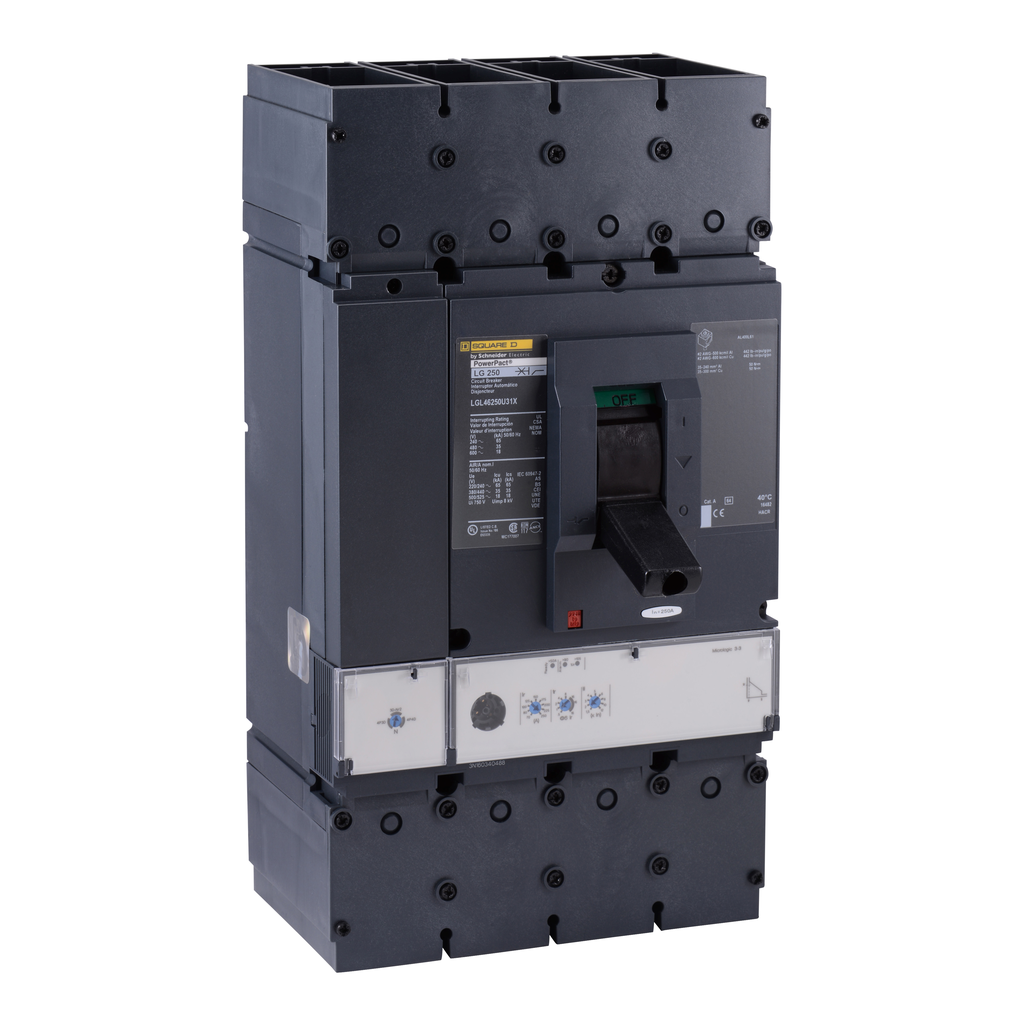

| Product Name | PowerPact L |
| Product Or Component Type | circuit breaker |
| Pvc Free | Yes |
| Range | PowerPact |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2 |
| Suitability For Isolation | yes IEC 60947-2 |
| Sustainable Offer Status | Green Premium product |
| Terminal Identifier | AL400L61K4 |
| Tightening Torque | 50-50 N.m 35-300 mm? (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm? (AWG 2...500 kcmil) |
| Trip Unit Name | Micrologic 3.3 |
| Trip Unit Technology | electronic, standard, Micrologic 3.3, LI |
| Utilisation Category | category A |
| Warranty | 18 months |
| Width | 140 mm |
| Wire Stripping Length | 31 mm |
