| [Isd] Short-Time Pick-Up Adjustment Range | 1.5...10 x Ir |
| [Tr] Long-Time Delay Adjustment Range | 15-400 s 1.5 x Ir || 0.35-11 s 7.2 x Ir || 0.5-16 s 6 x Ir |
| [Tsd] Short-Time Delay Adjustment Range | 0-0.4 s I?t=off || 0.1-0.4 s I?t=on |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | -25-70 ?C |
| Ambient Air Temperature For Storage | -40-85 ?C |
| California Proposition 65 : WARNING | Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI120604EN |
| Communication Of Data | instantaneous and demand values || maintenance indicators || power quality || energy metering || maximeters/minimeters || demand current and power || protection and alarm settings || time-stamped histories and event tables |
| Device Application | distribution |
| Display Type | LCD display |
| Earth-Leakage Protection | without |
| Electrical Data Recording | maintenance indicators |
| Environmental Disclosure | ENVPEP120606EN |
| Eu Rohs Directive | Compliant |
| Instantaneous Pick-Up Adjustment Range | 1.5...12 x In |
| Instantaneous Pick-Up Adjustment Type Ii | adjustable |
| Long Time Delay Adjustment Type | adjustable |
| Long Time Pick-Up Adjustment Range | 100...250 A |
| Long Time Pick-Up Adjustment Type Ir | adjustable 9 settings |
| Mercury Free | Yes |
| Network Frequency | 50/60 Hz |
| Network Type | AC |
| Poles Description | 3P |
| Product Certifications | CCC || Marine || EAC |
| Product Or Component Type | trip unit |
| Protected Poles Description | 3t |
| Protection Type | overload protection (long time) || short time short-circuit protection || instantaneous short-circuit protection |
| Range | ComPact |
| Range Compatibility | ComPact NSX250 |
| Range Of Product | ComPact NSX100...250 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
| Short-Time Delay Adjustment Type | adjustable |
| Short-Time Pick-Up Adjustment Type Isd | adjustable 9 settings |
| Standards | EN/IEC 60947-2 || UL 508 |
| Sustainable Offer Status | Green Premium product |
| Thermal Memory | 20 minutes before and after tripping |

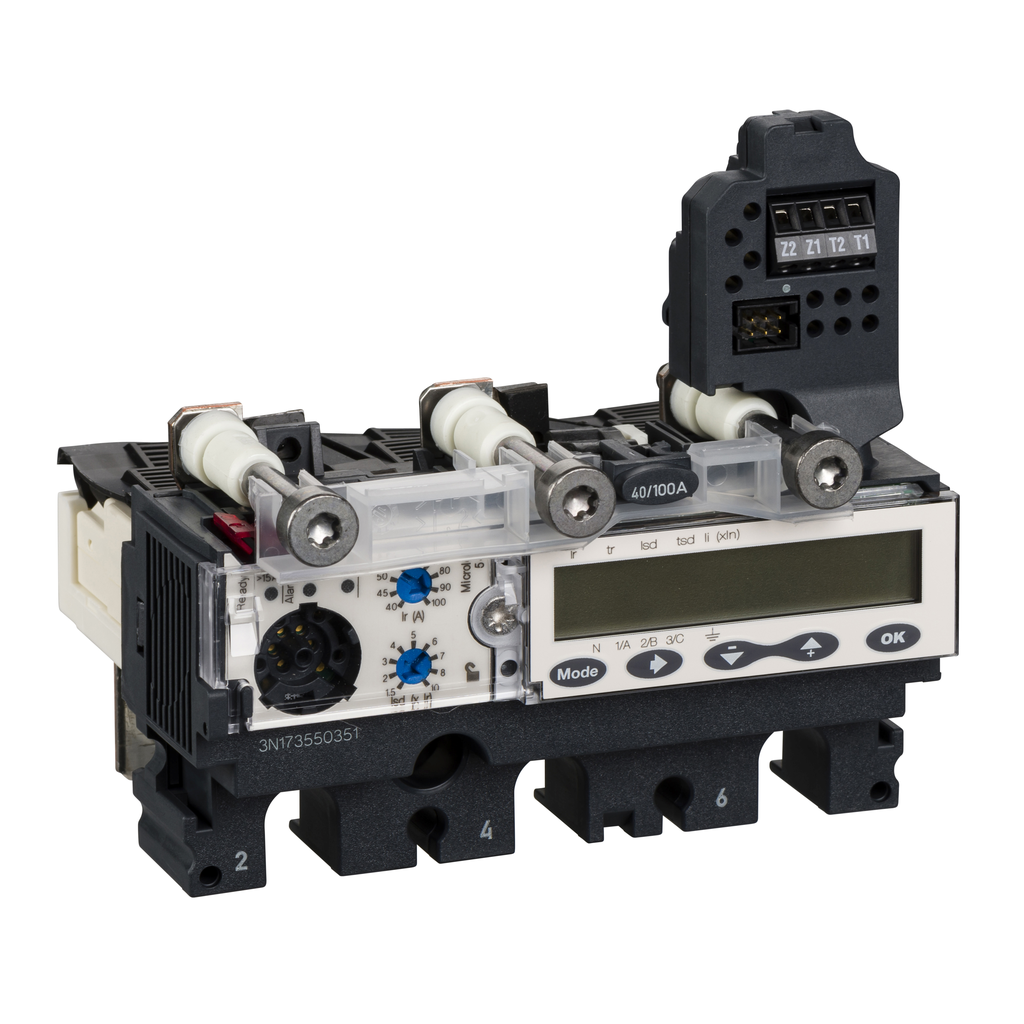

| Trip Unit Name | Micrologic 5.2 E |
| Trip Unit Protection Functions | LSI |
| Trip Unit Technology | electronic |
| Type Of Measurement | energy meter |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Zone Selective Interlocking Zsi | with |
