| [Uc] Maximum Continuous Operating Voltage | 420 V |
| [Ue] Rated Operational Voltage | 600Y/347 V AC |
| Accessory / Separate Part Category | replacement part |
| Ambient Air Temperature For Operation | 65-65 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Connections - Terminals | terminals |
| Depth | 68.3 mm |
| Device Short Name | IMA |
| Enclosure Material | Black Plastic |
| Eu Rohs Directive | Compliant |
| Height | 158.8 mm |
| Local Signalling | status LED green normal operation |
| Mercury Free, Rohs Exemption Information | Yes |
| Mounting Support | panel mounting |
| Nema Degree Of Protection | NEMA 2 |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |

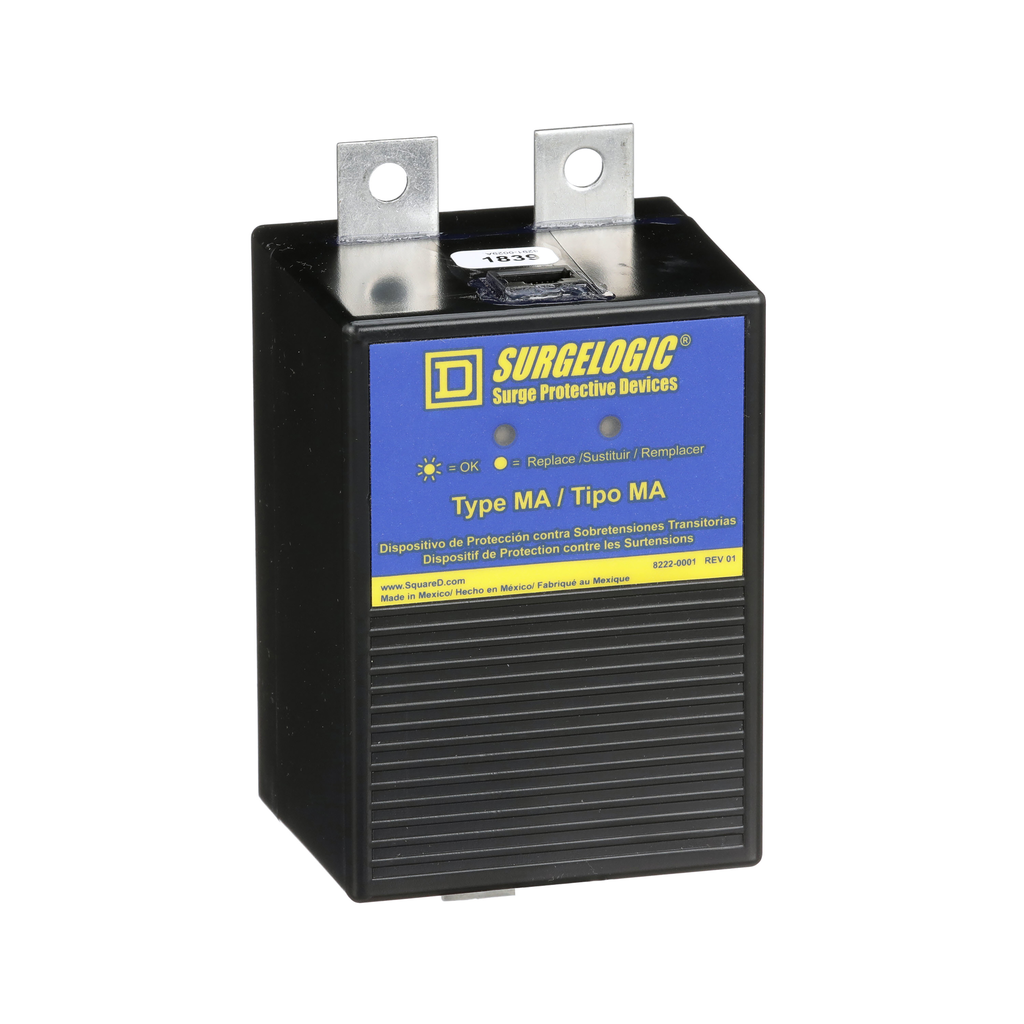

| Product Or Component Type | surge protection module |
| Provided Equipment | alarm enable/disable switch |
| Range Of Product | Surgelogic |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Short-Circuit Protection | 200 kA |
| Standards : UL 1449:ed. 4: type I || UL 1283:ed. 5 || CSA C22.2 No 8 | 1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285 |
| Surge Current | 160 kA per phase |
| Width | 82.8 mm |
| Wiring Configuration | 4-wire |
